Nissan-Datsun
>>
1997
>>
Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EL-WARN
>>
Models Without Tachometer
Models Without Tachometer

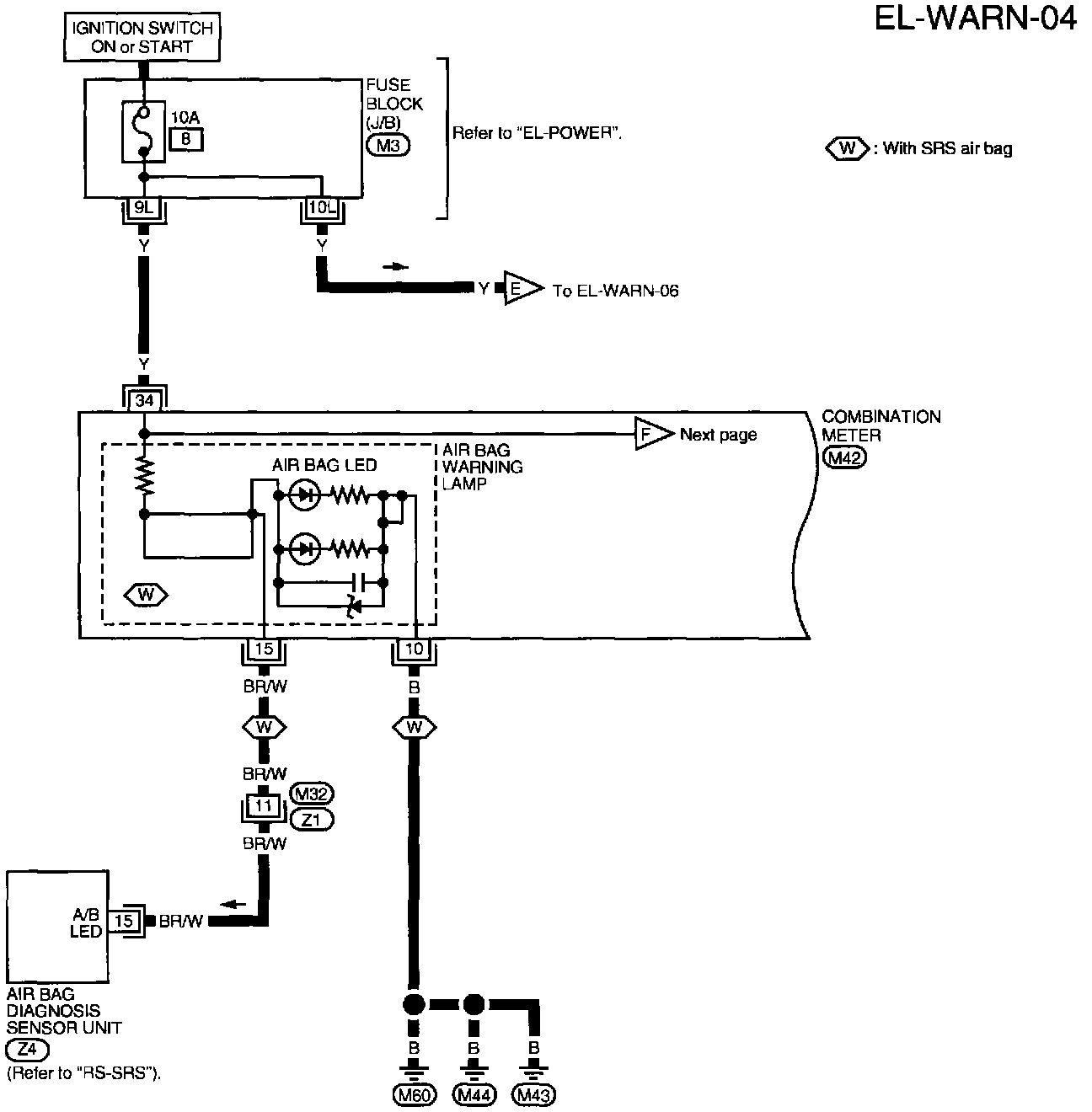

EL-WARN-04 Warning Lamps (Part 1 Of 3) (Models Without Tachometer):

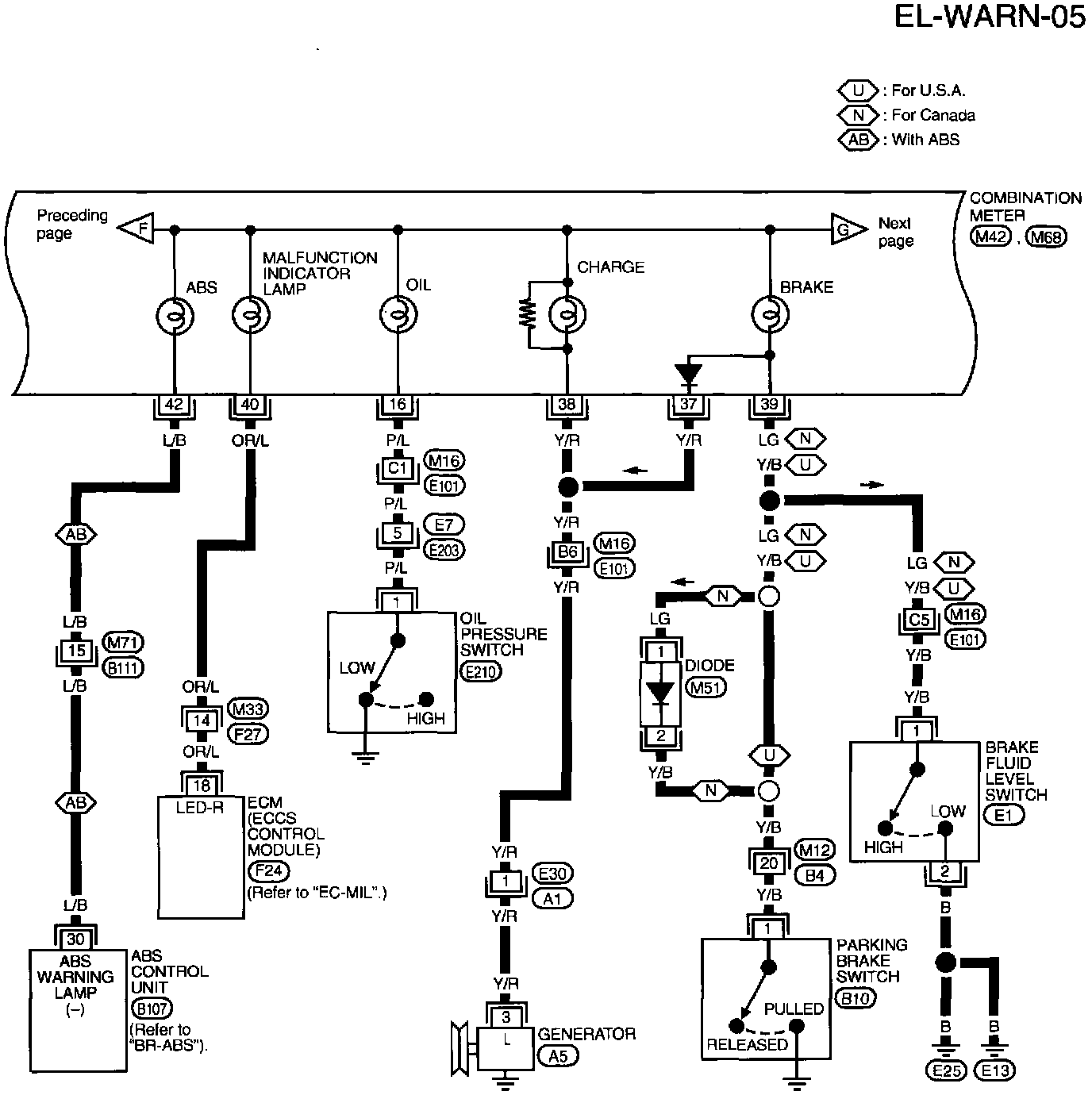

EL-WARN-05 Warning Lamps (Part 2 Of 3) (Models Without Tachometer):

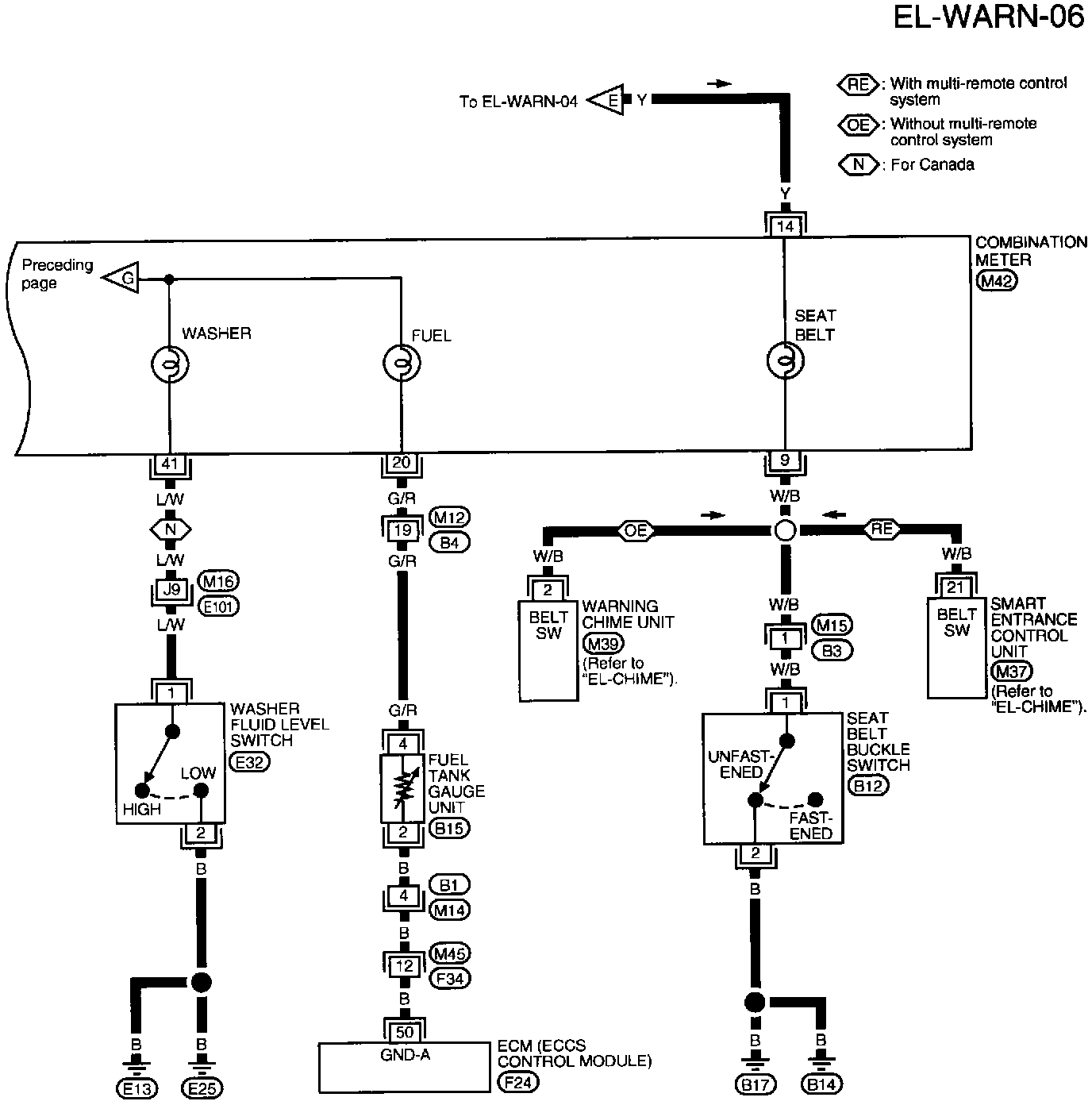

EL-WARN-06 Warning Lamps (Part 3 Of 3) (Models Without Tachometer):
