Models With Tachometer

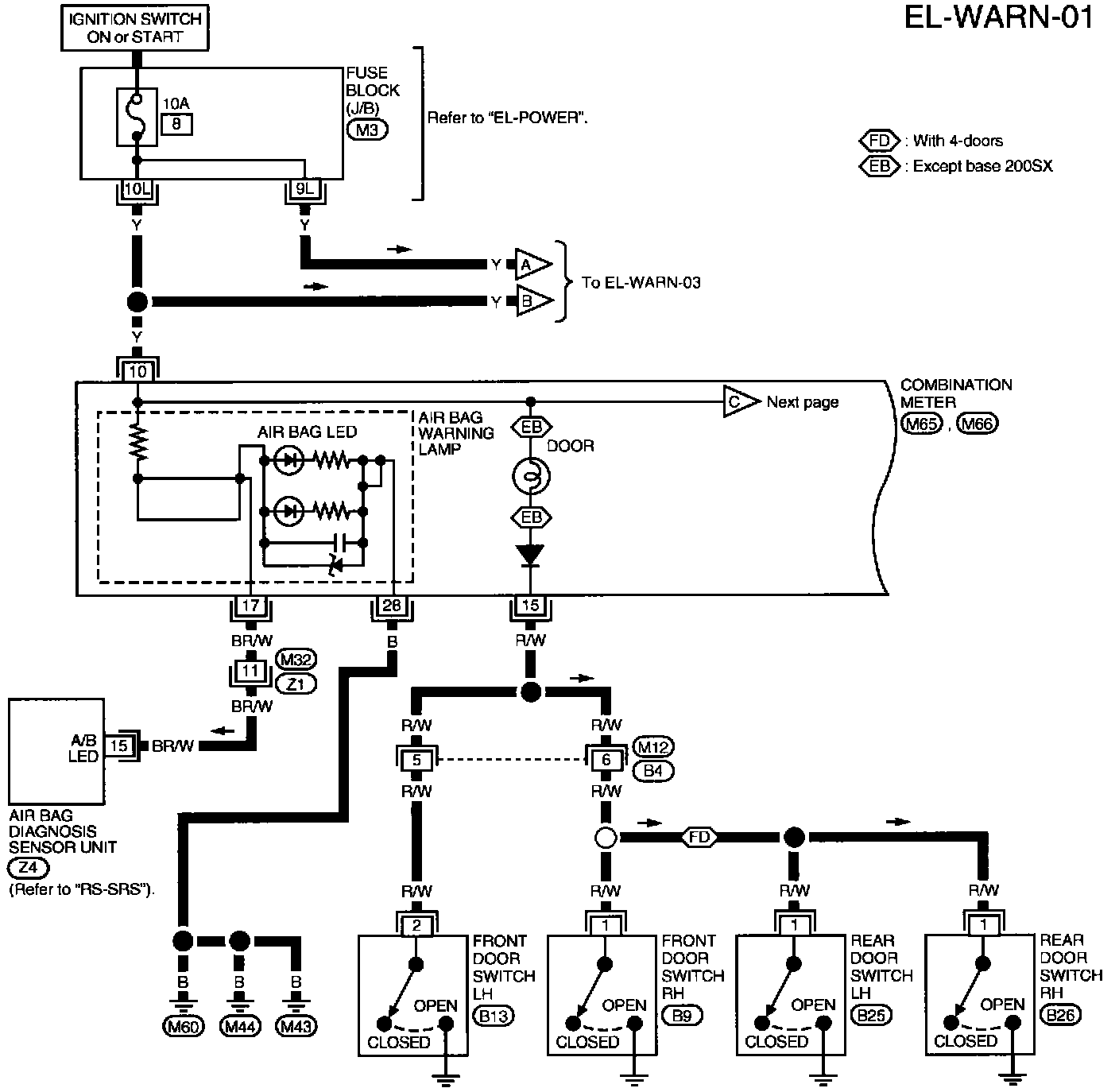

EL-WARN-01 Warning Lamps (Part 1 Of 3) (Models With Tachometer):

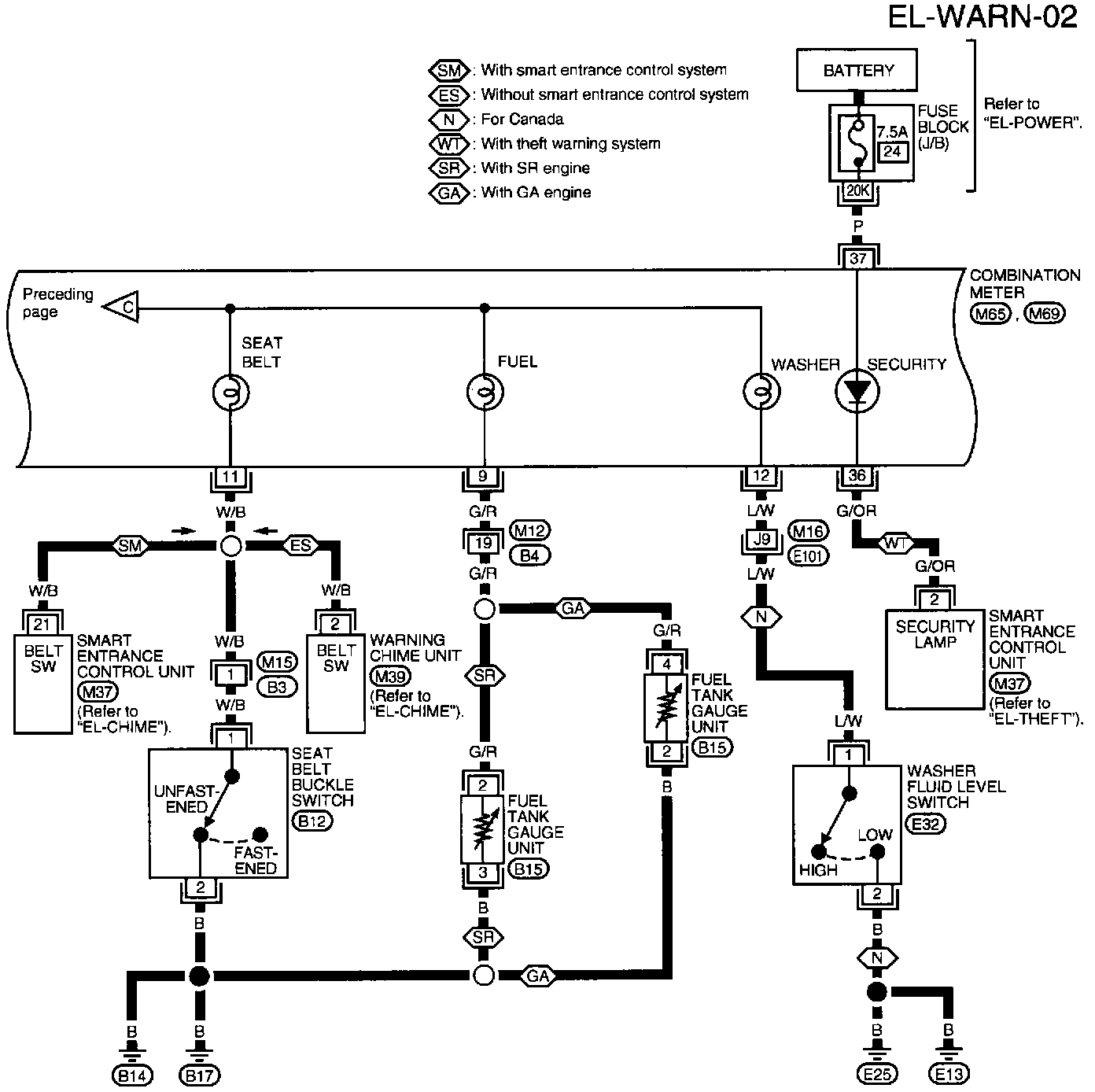

EL-WARN-02 Warning Lamps (Part 2 Of 3) (Models With Tachometer):

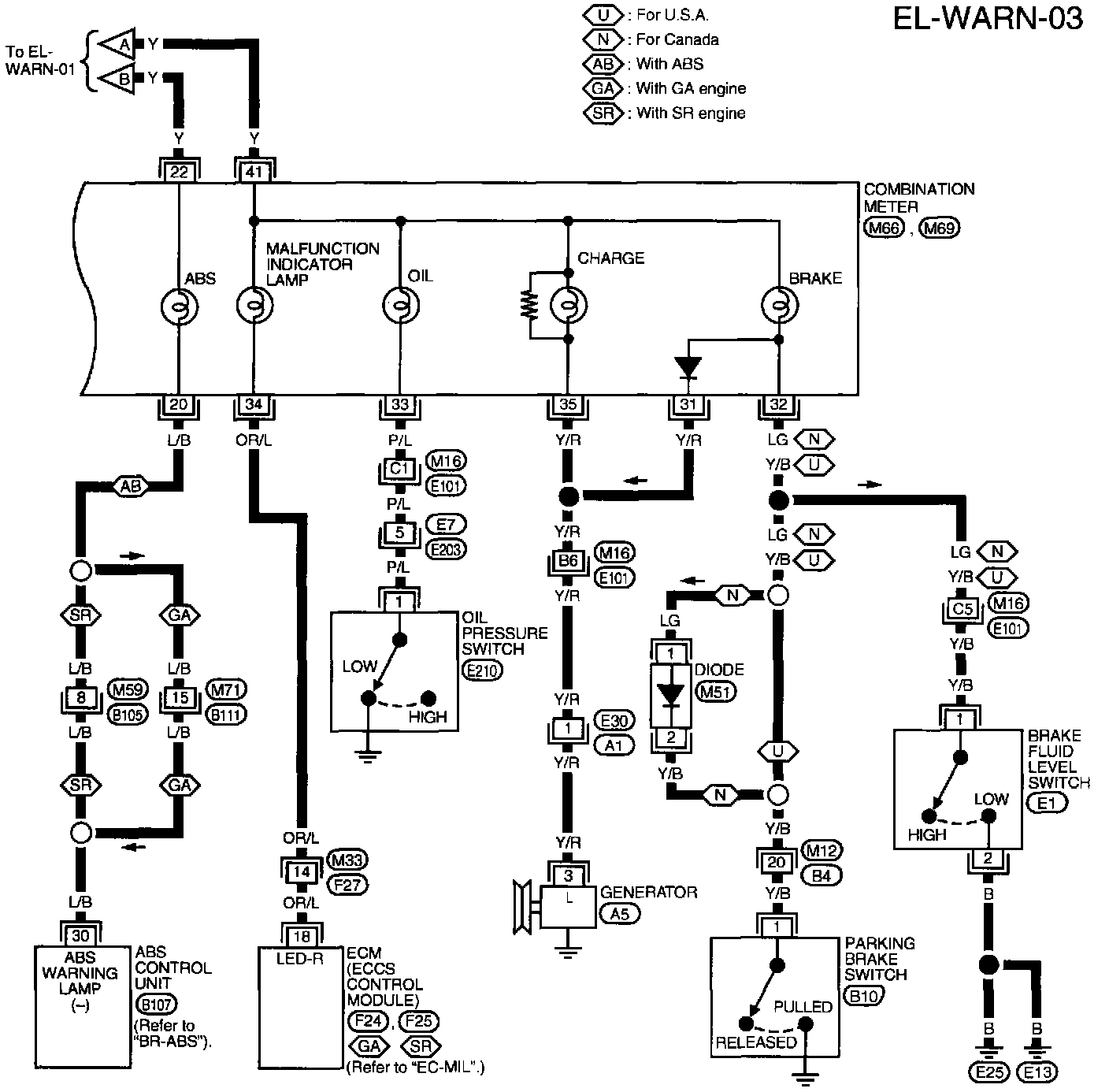

EL-WARN-03 Warning Lamps (Part 3 Of 3) (Models With Tachometer):
