Nissan-Datsun
>>
1997
>>
Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Specific Connectors
>>
For Canada
For Canada

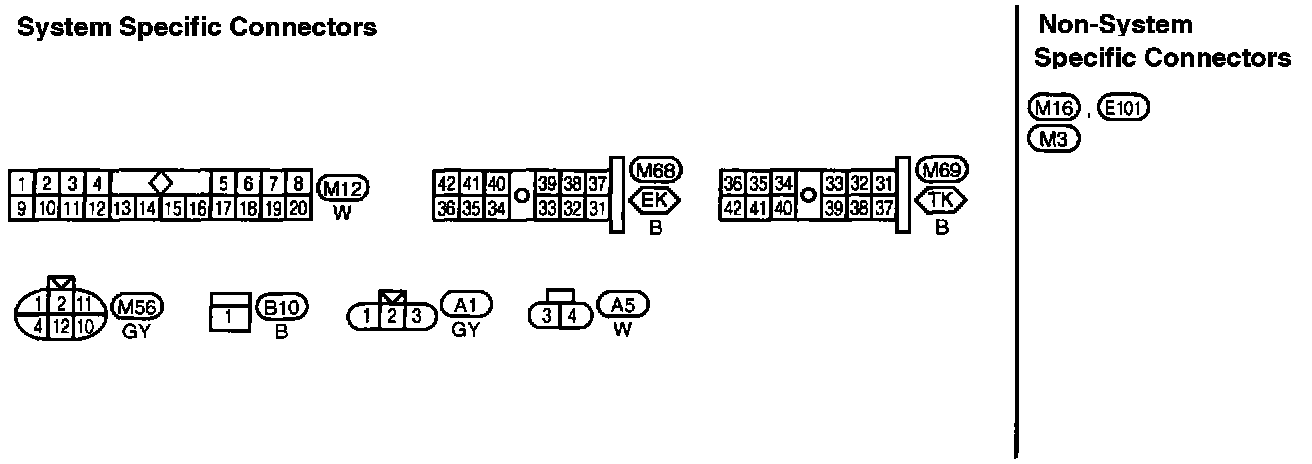

Headlamp (Part 1 Of 3) (For Canada):

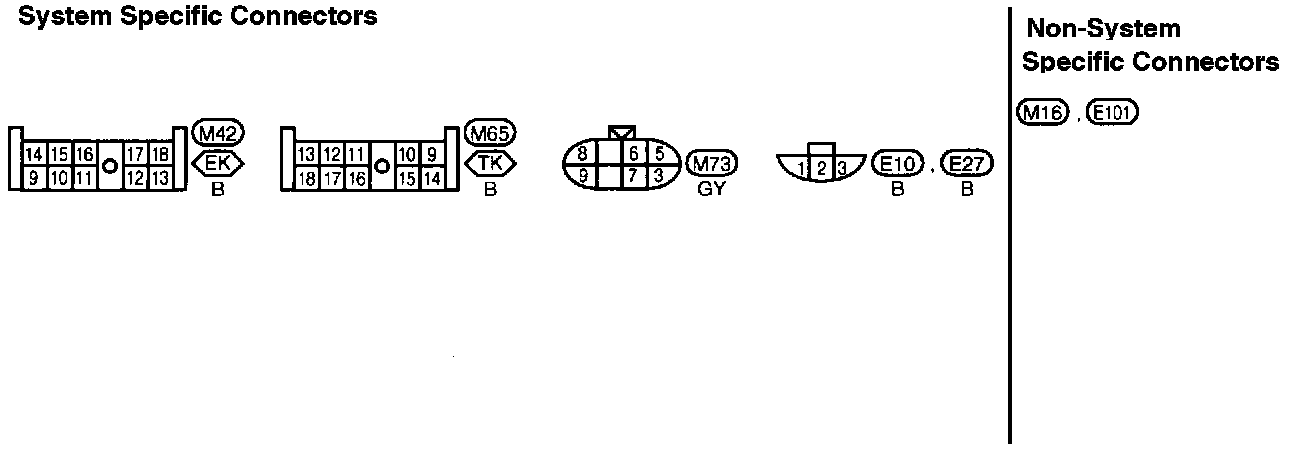

Headlamp (Part 2 Of 3) (For Canada):

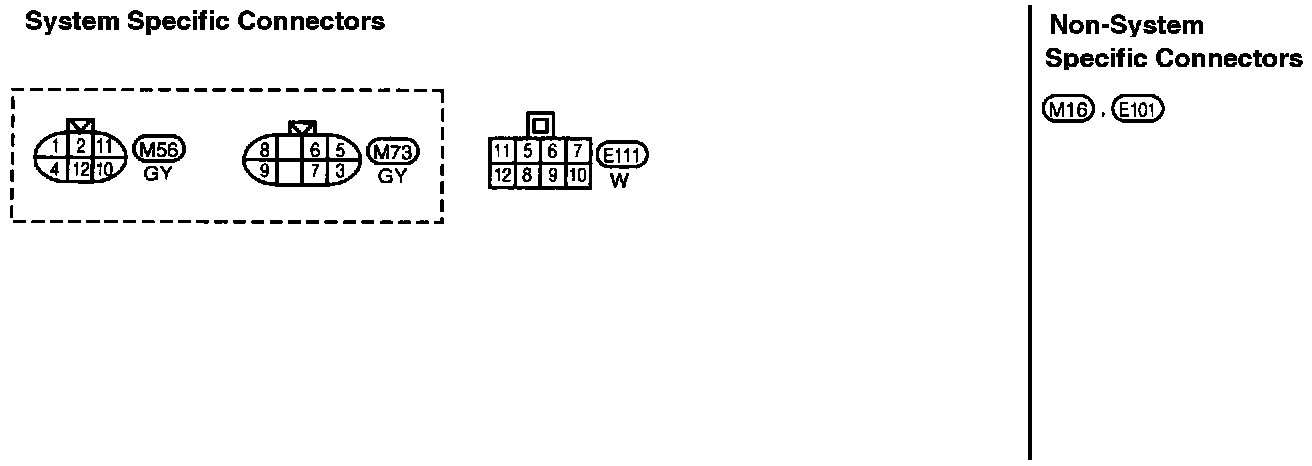

Headlamp (Part 3 Of 3) (For Canada):
