Cruise Control: Adjustments

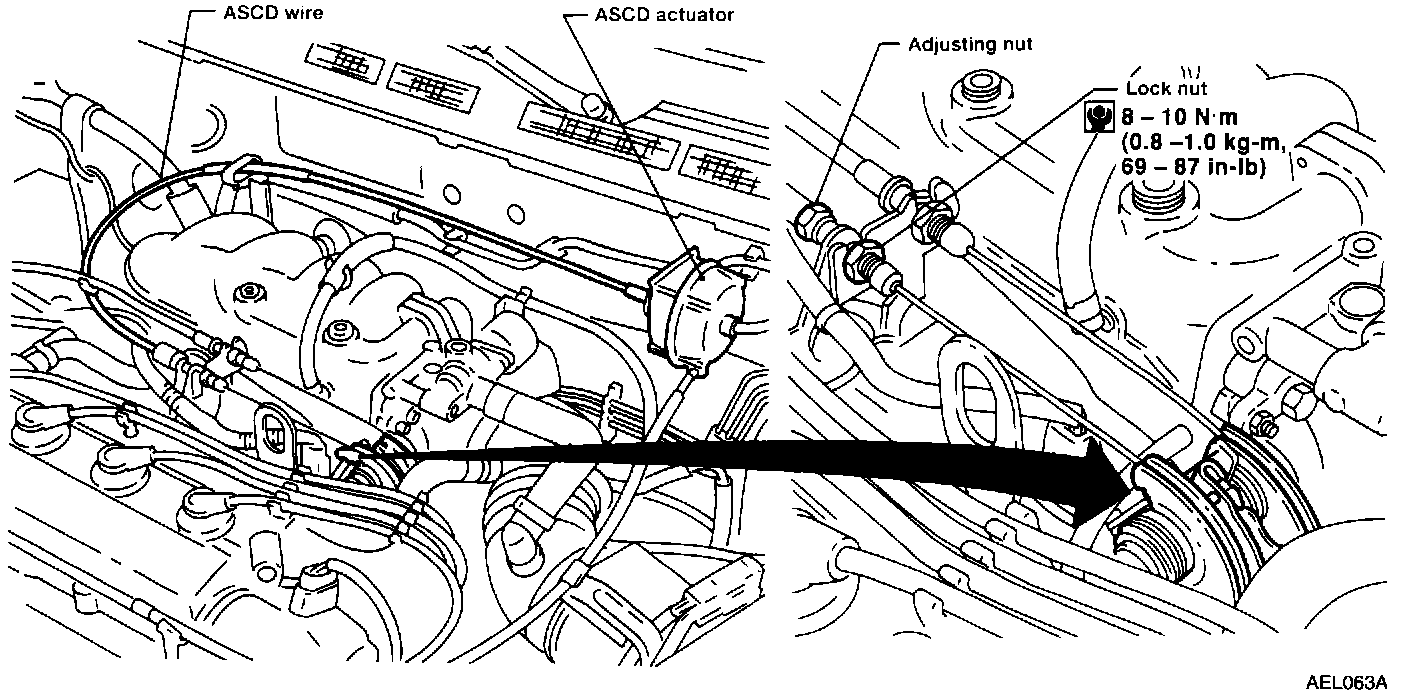

ASCD Wire Adjustment:

CAUTION:
^ Be careful not to twist Automatic Speed Control Device (ASCD) wire when removing it.
^ Do not over tighten ASCD wire during adjustment.
Confirm that accelerator wire is properly adjusted.

Adjust the ASCD wire as follows.
1. Loosen lock nut and tighten adjusting nut until throttle drum starts to move.
2. From that position turn back adjusting nut 0.5 to 1 turn, and secure lock nut.
(This prevents a delay in the operation of the ASCD.)
