Proportioning Valve, With ABS

CAUTION:
^ Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on paint areas, wash it away with water immediately.
^ Disconnect harness connectors from ABS actuator relay box before checking.

TESTING

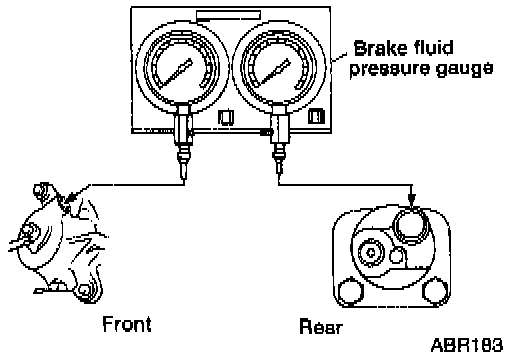

Brake Fluid Pressure Gauge:

1. Connect brake fluid pressure gauge to air bleeders of front and rear brakes on either LH and RH side.

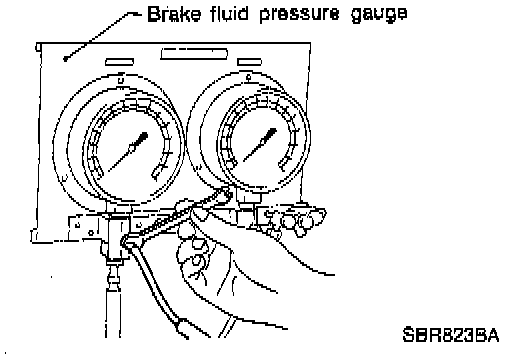

2. Bleed air from the brake fluid pressure gauge.

Brake Pedal Fluid Pressure:

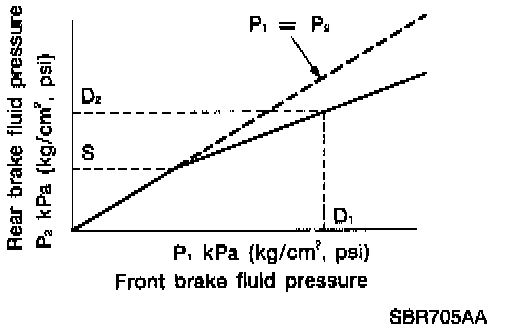

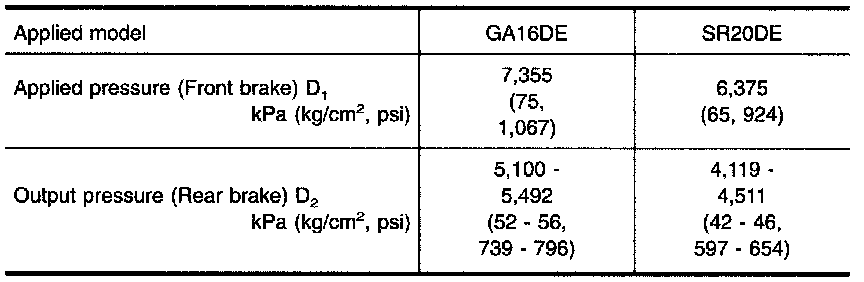

Brake Fluid Pressure Chart:

CAUTION:
^ Depress pedal slowly when raising front brake pressure.
^ Check rear brake pressure 2 seconds after front brake pressure reaches specified value.

3. If output pressure is out of specifications, replace dual proportioning valve as an assembly.

NOTE:
^ Carefully monitor brake fluid level at master cylinder.
^ Use new "DOT 3" brake fluid.
^ Never reuse drained brake fluid.

4. Bleed air from the hydraulic system after disconnecting the brake fluid pressure gauge. Brake Bleeding
