Brake Pedal Assy: Testing and Inspection

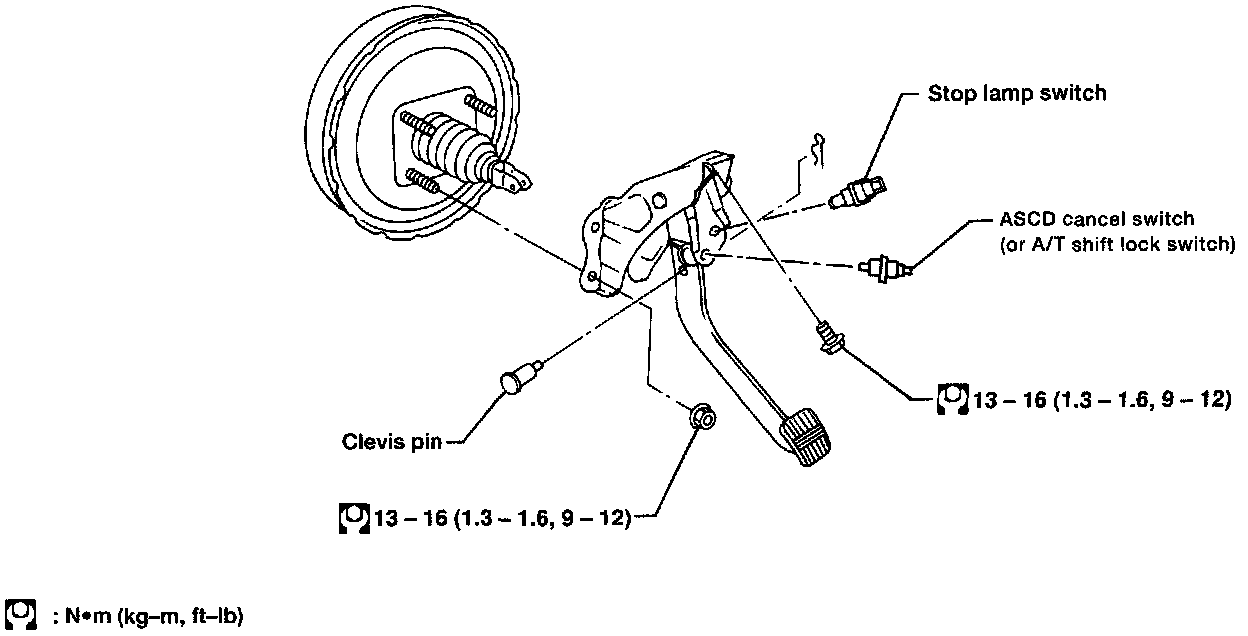

Brake Pedal Assembly:

Check brake pedal for following items:
^ Brake pedal bend
^ Clevis pin deformation
^ Crack of any welded portion





^ Crack or deformation of clevis pin plastic stopper
