Rear

REMOVAL

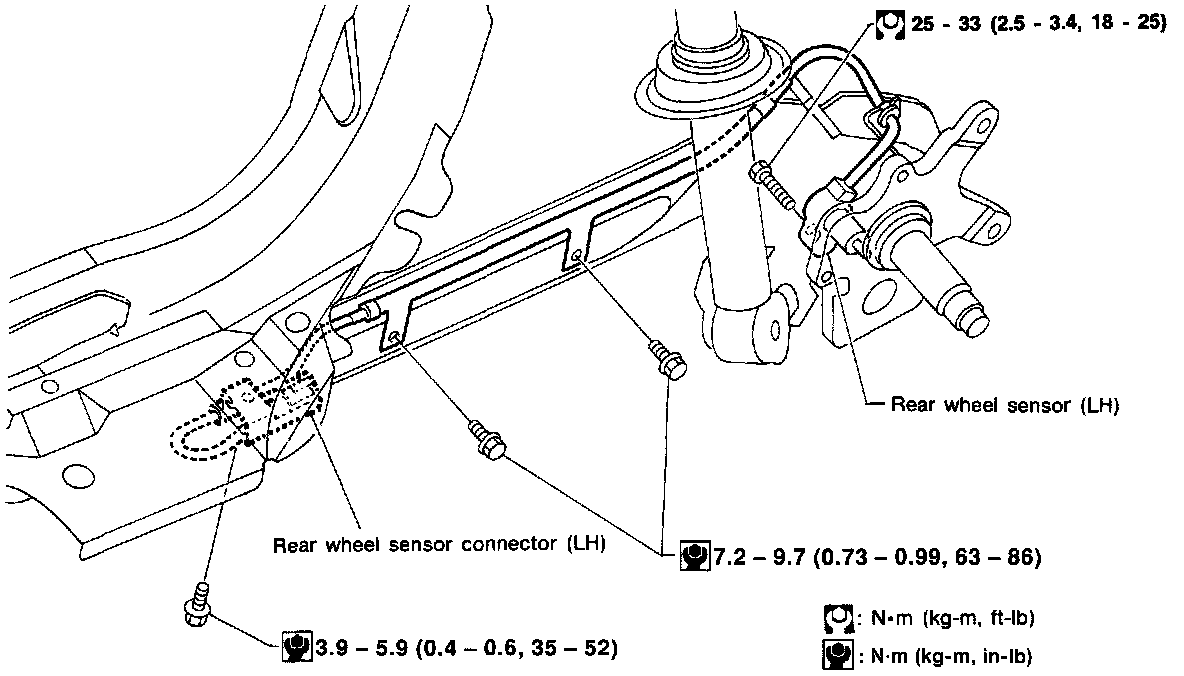

Rear Wheel Sensors:

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away.

1. Remove the rear wheel hub, refer to "Steering and Suspension"

Rear ABS Sensor Removal:

2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

INSTALLATION
^ Reverse procedure to install, noting the following:
^ When installing rear sensor rotor, use suitable drift and press.
^ Always replace sensor rotor with new one.

Rear ABS Sensor Installation:

^ Pay attention to dimension "h" when installing the rear sensor rotor, as shown in the figure. Dimension h = 4.5 - 5.5 mm (0.177 - 0.217 inches.)
