Diagnostic Test Procedure 8


WARNING LAMP STAYS ON FLOW CHART

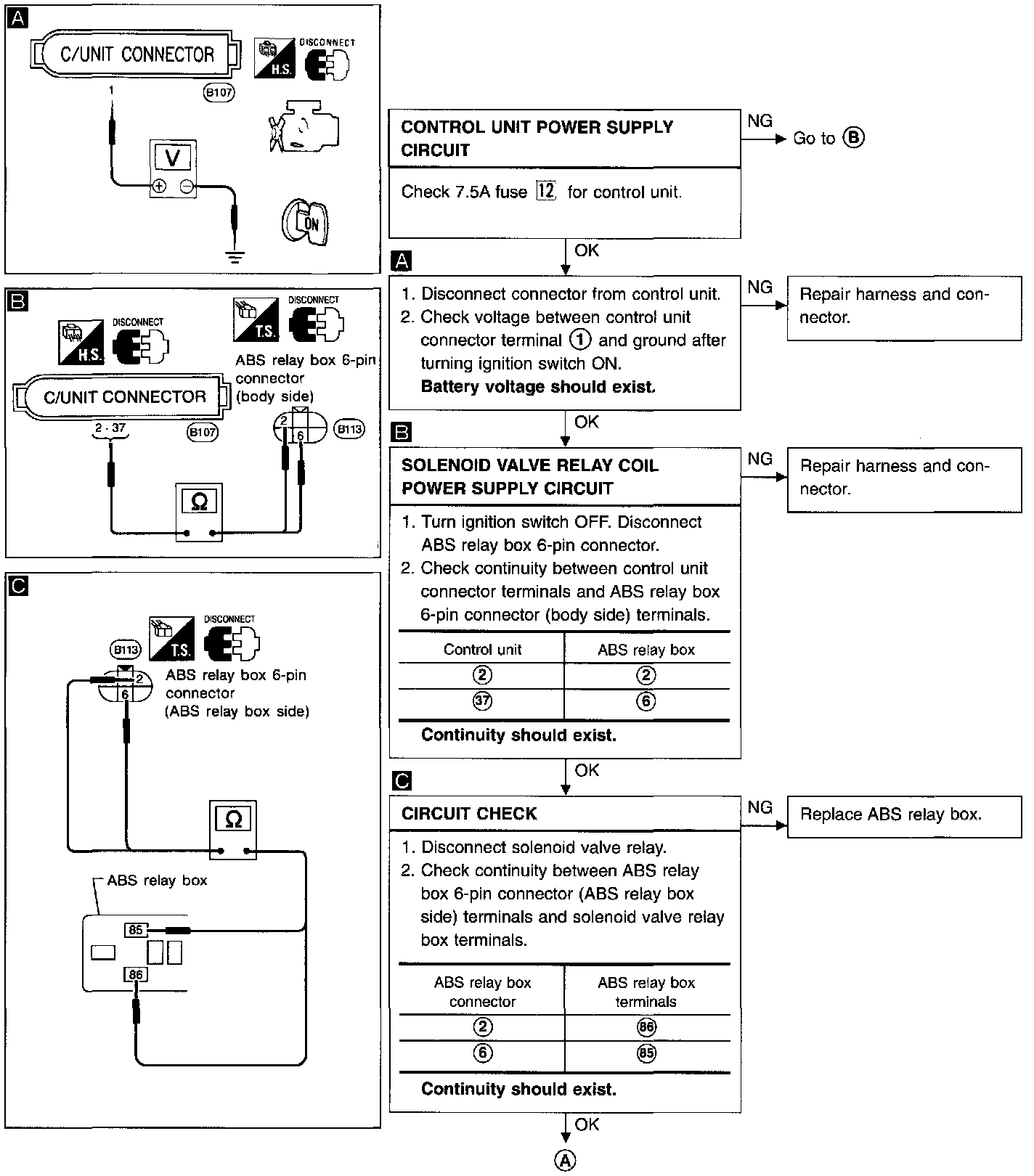

Warning Lamp Stays On (Part 1 Of 3):

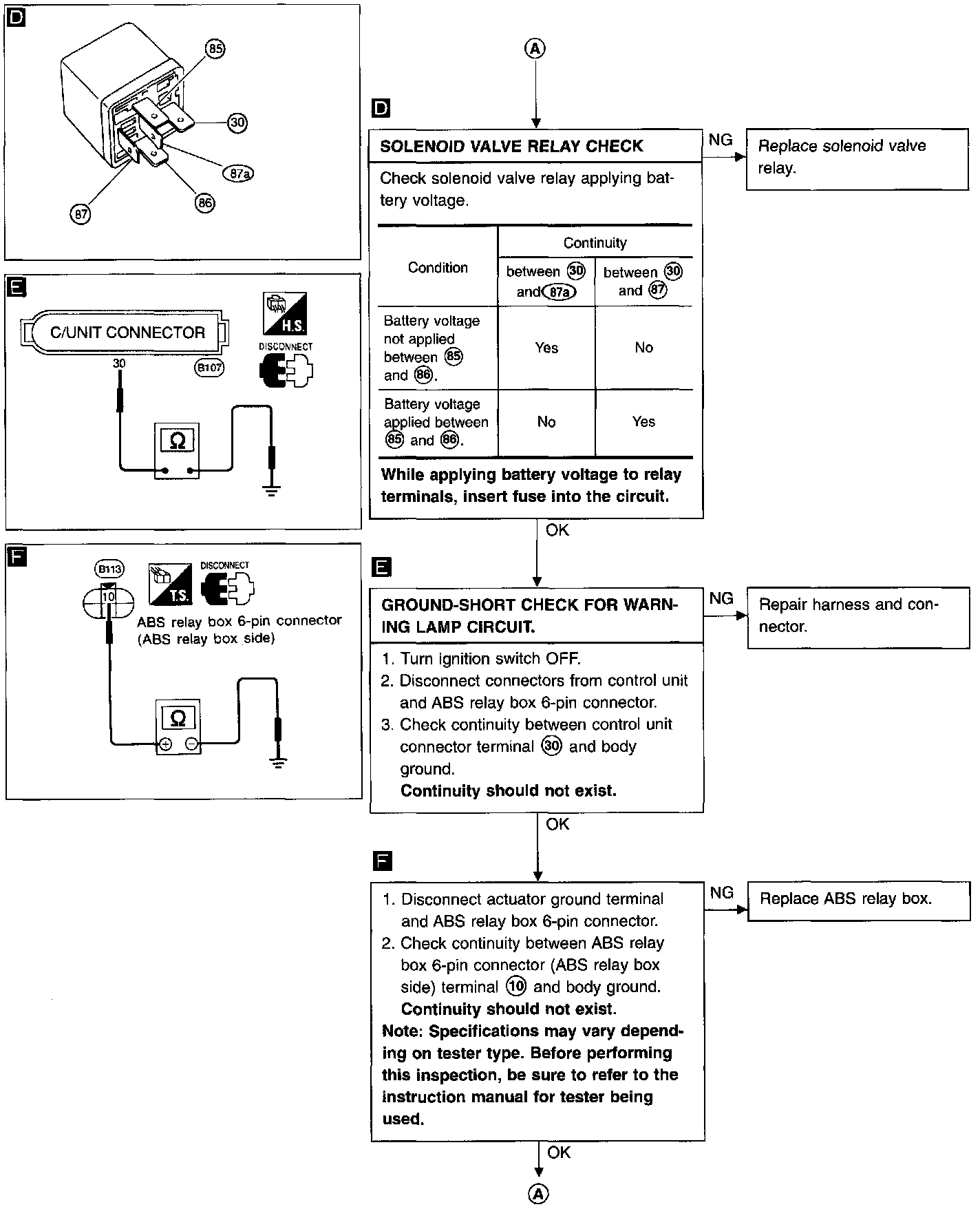

Warning Lamp Stays On (Part 2 Of 3):

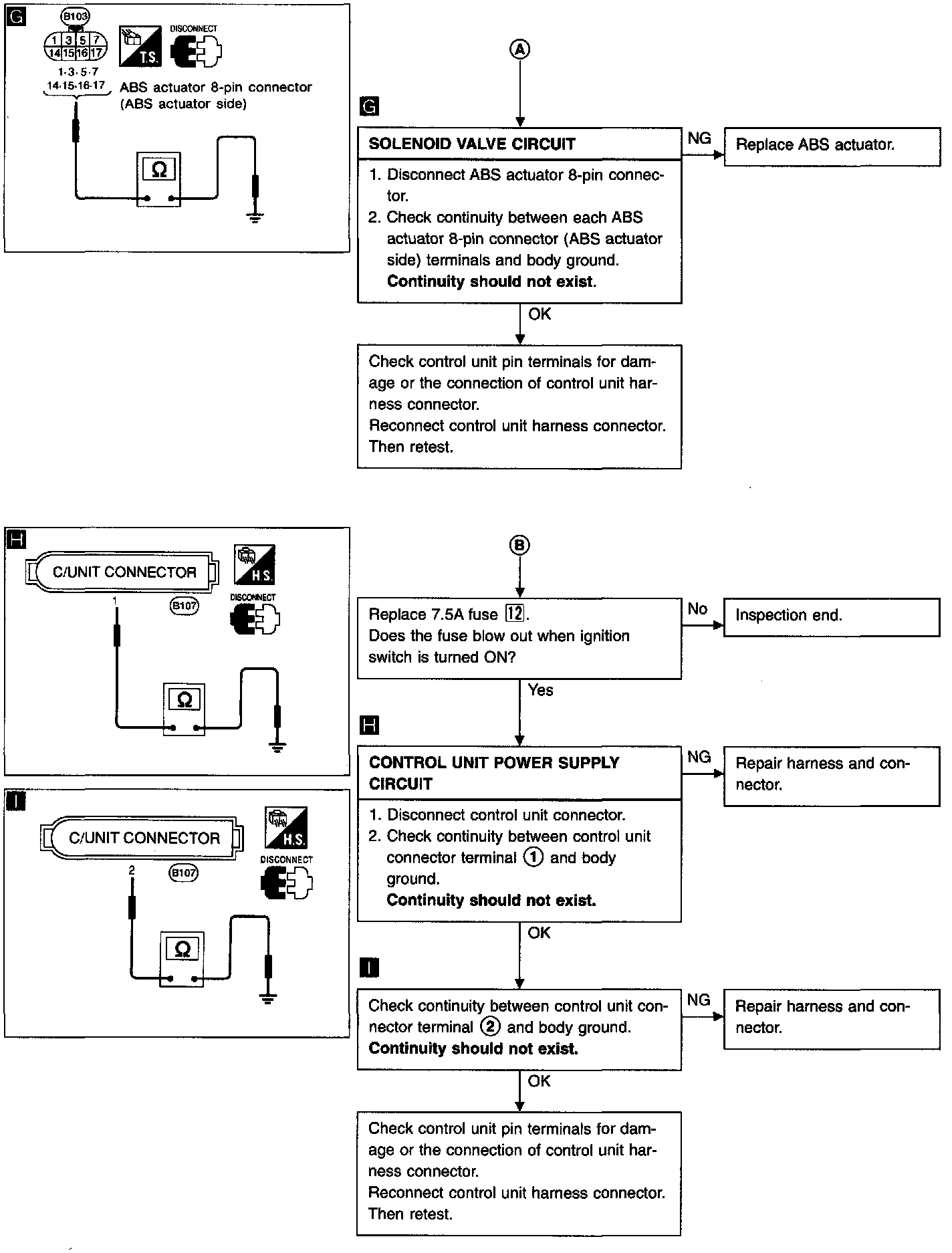

Warning Lamp Stays On (Part 3 Of 3):
