Diagnostic Test Procedure 3


ABS MOTOR RELAY OR MOTOR FLOW CHART

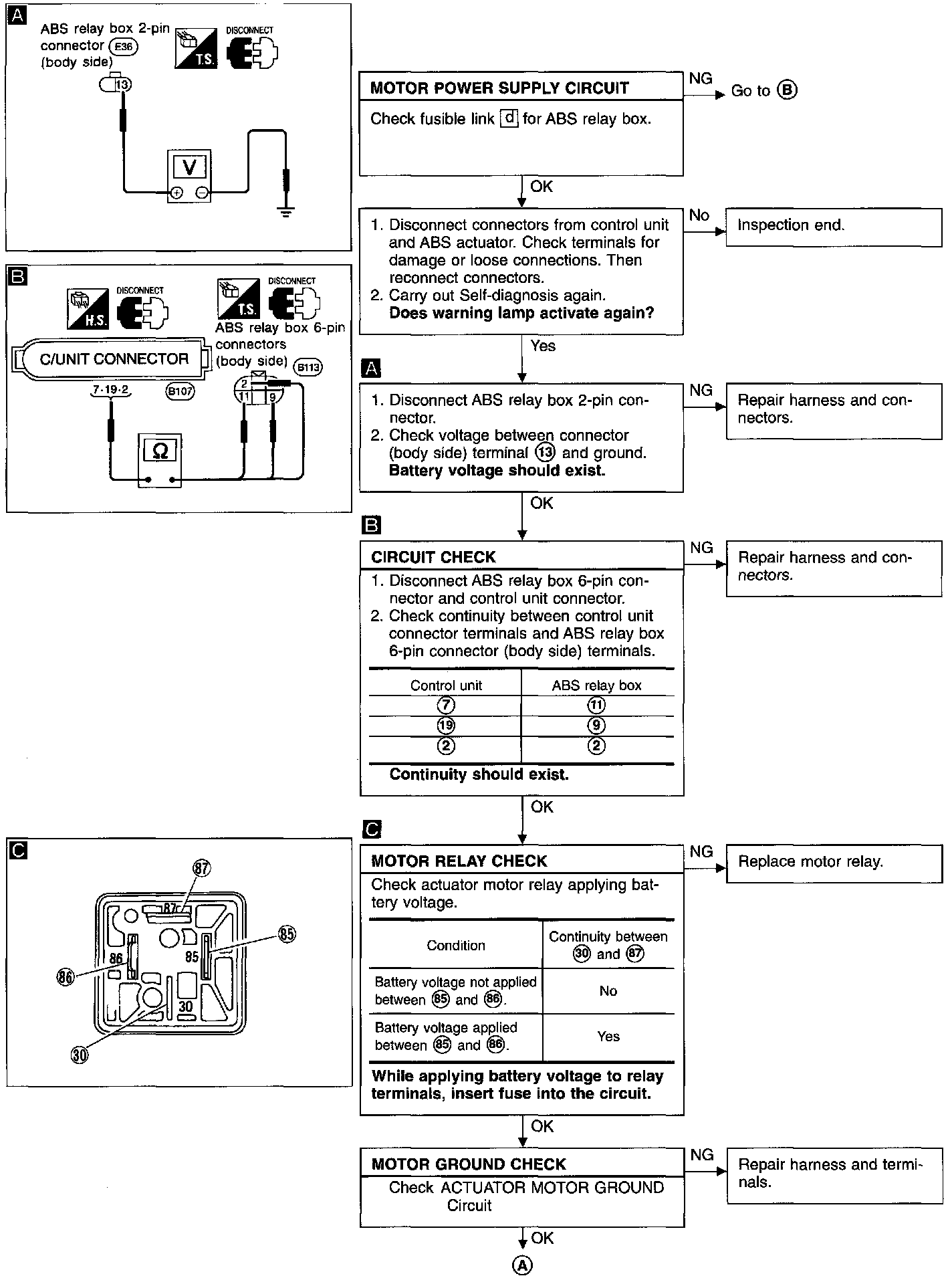

Malfunction Code 61. ABS Motor Relay Or Motor (Part 1 Of 3):

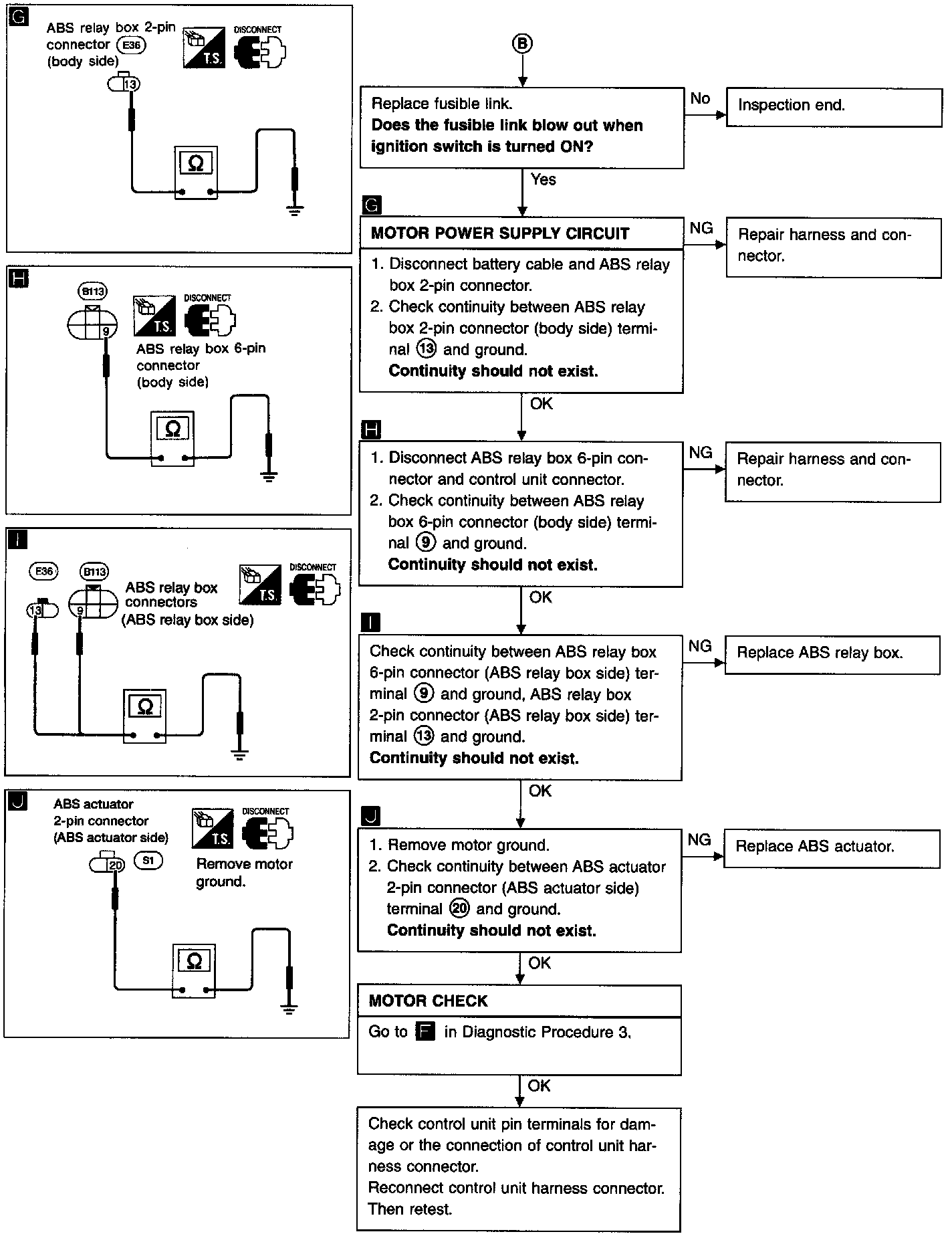

Malfunction Code 61. ABS Motor Relay Or Motor (Part 2 Of 3):

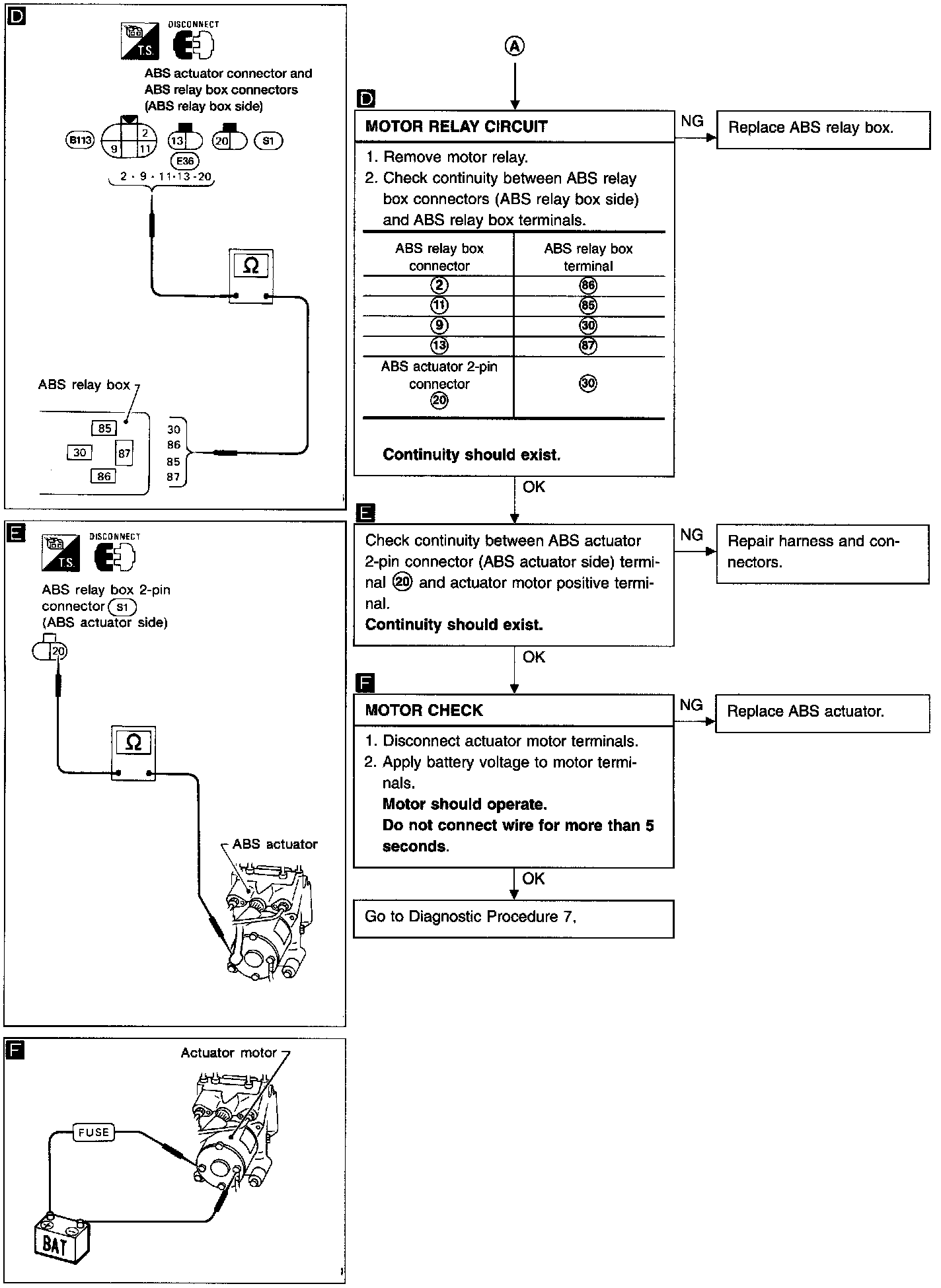

Malfunction Code 61. ABS Motor Relay Or Motor (Part 3 Of 3):
