Diagnostic Test Procedure 2


WHEEL SENSOR OR ROTOR FLOW CHART

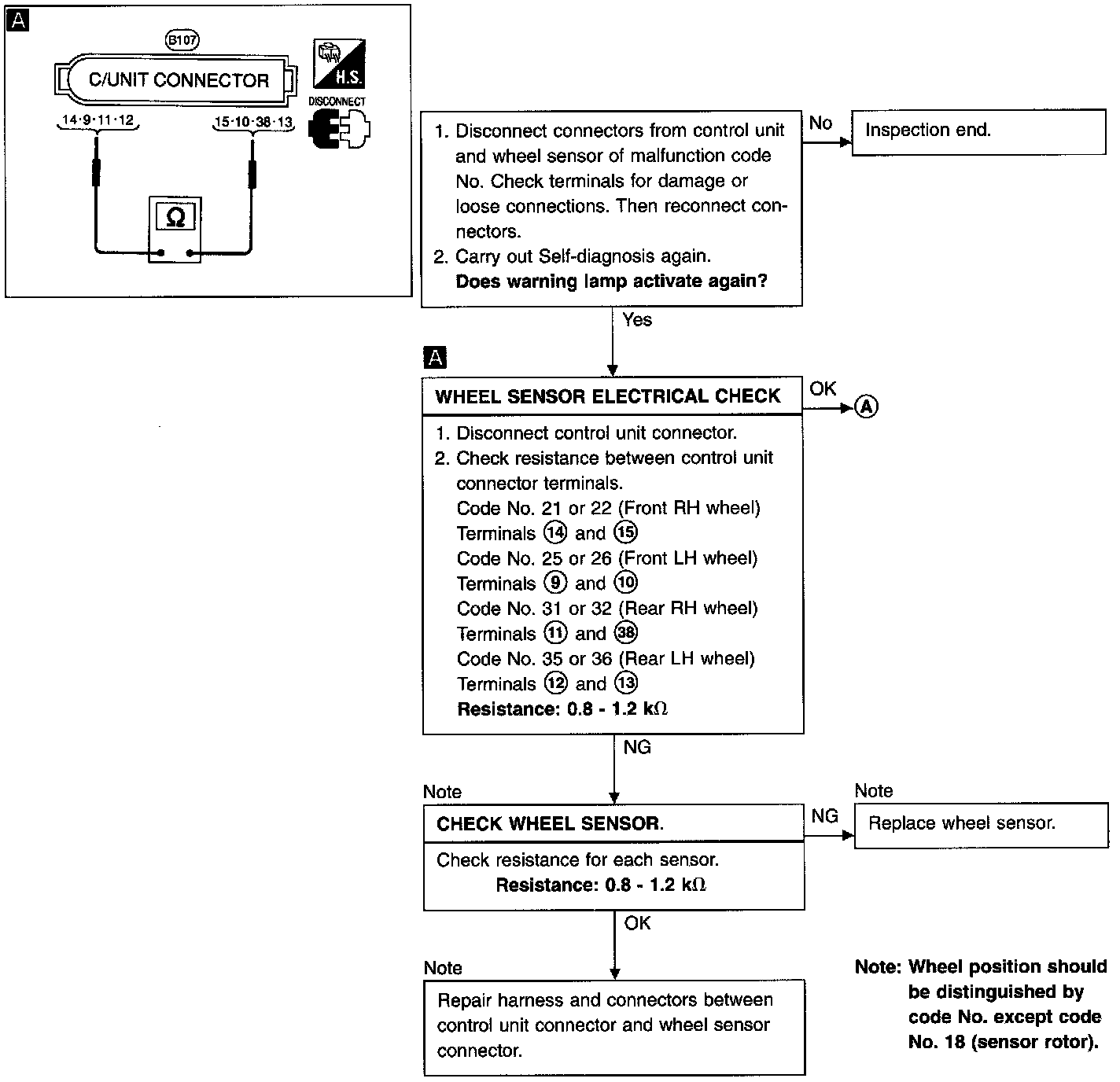

Malfunction Code 18, 21, 22, 25, 26, 31, 32, 35 Or 36 (Part 1 Of 2). Wheel Sensor Or Wheel Rotor:

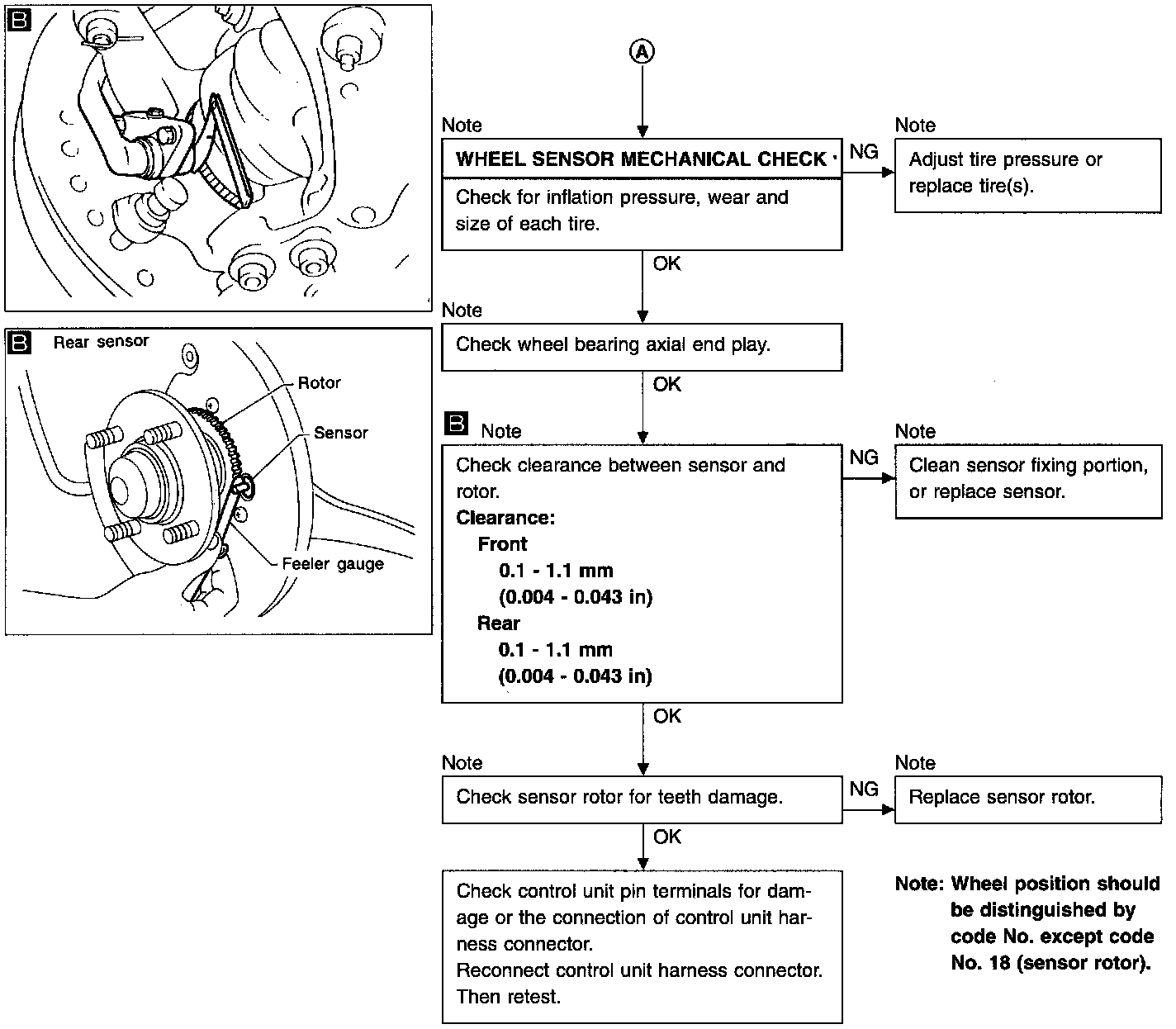

Malfunction Code 18, 21, 22, 25, 26, 31, 32, 35 Or 36 (Part 2 Of 2). Wheel Sensor Or Wheel Rotor:
