Diagnostic Test Procedure 1


ABS ACTUATOR SOLENOID VALVE FLOW CHART

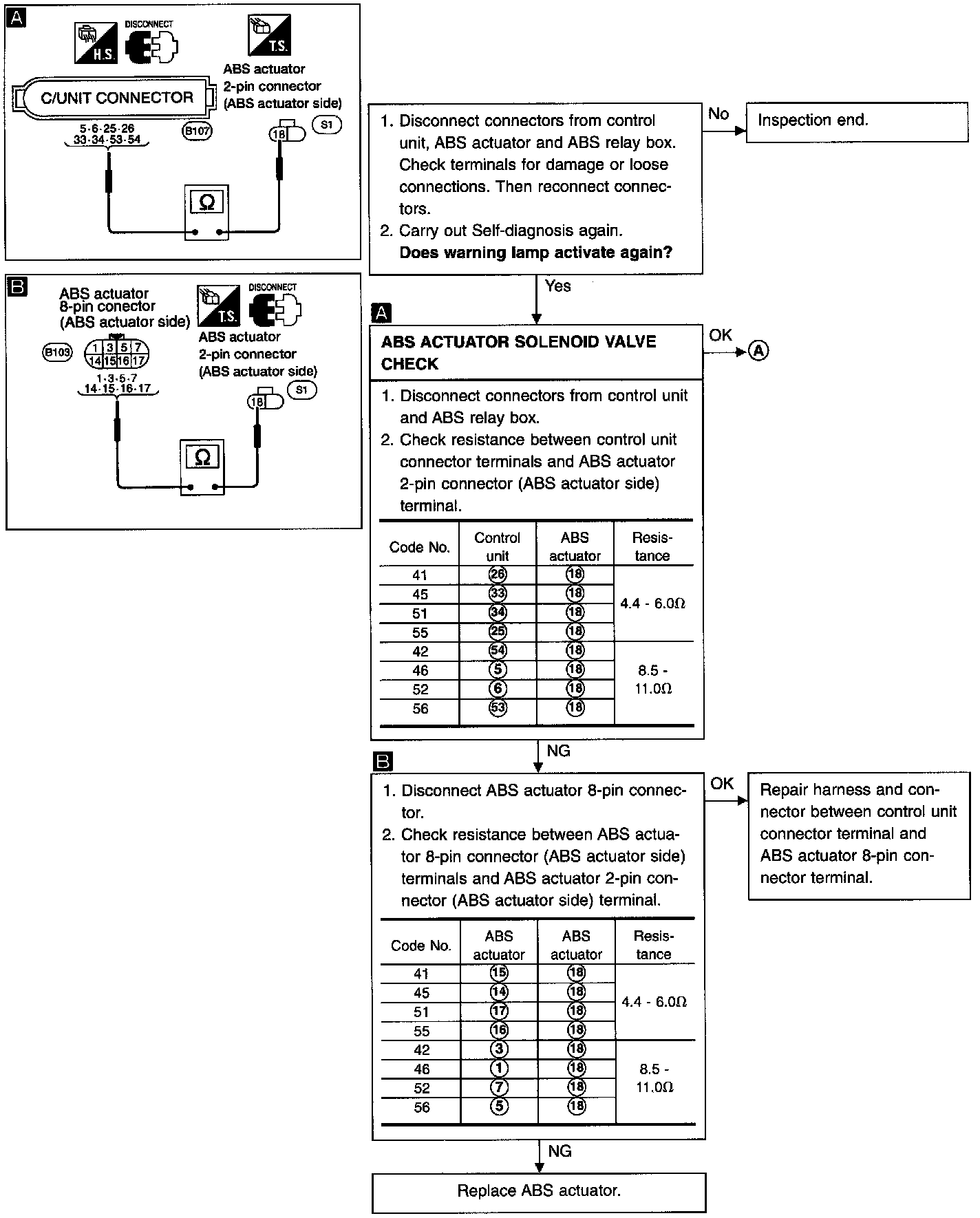

ABS Actuator Solenoid Valve With Malfunction Codes 41, 42, 45, 46, 51, 52, 55 & 56 (Part 1 Of 2):

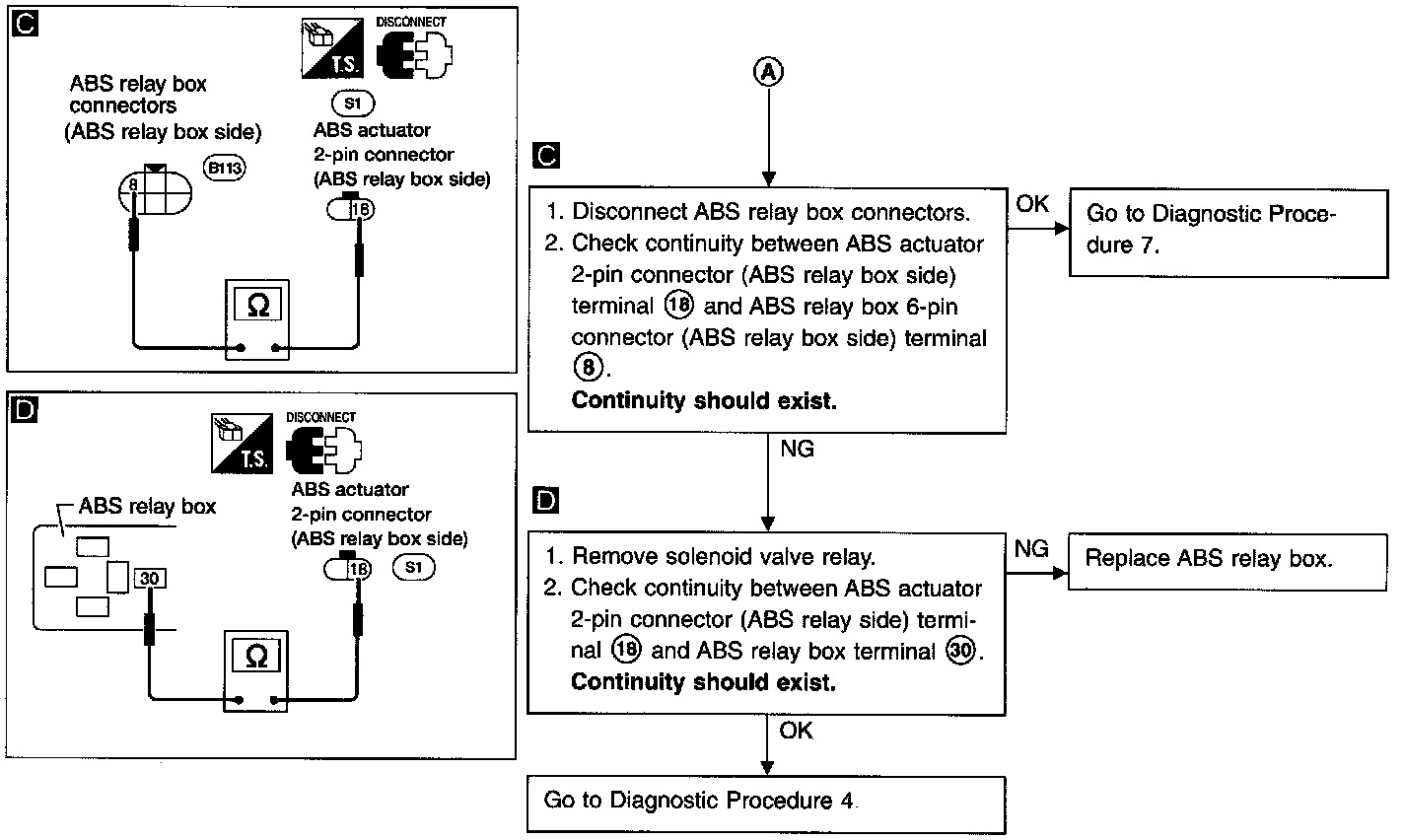

ABS Actuator Solenoid Valve With Malfunction Codes 41, 42, 45, 46, 51, 52, 55 & 56 (Part 2 Of 2):
