Sentra GXE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

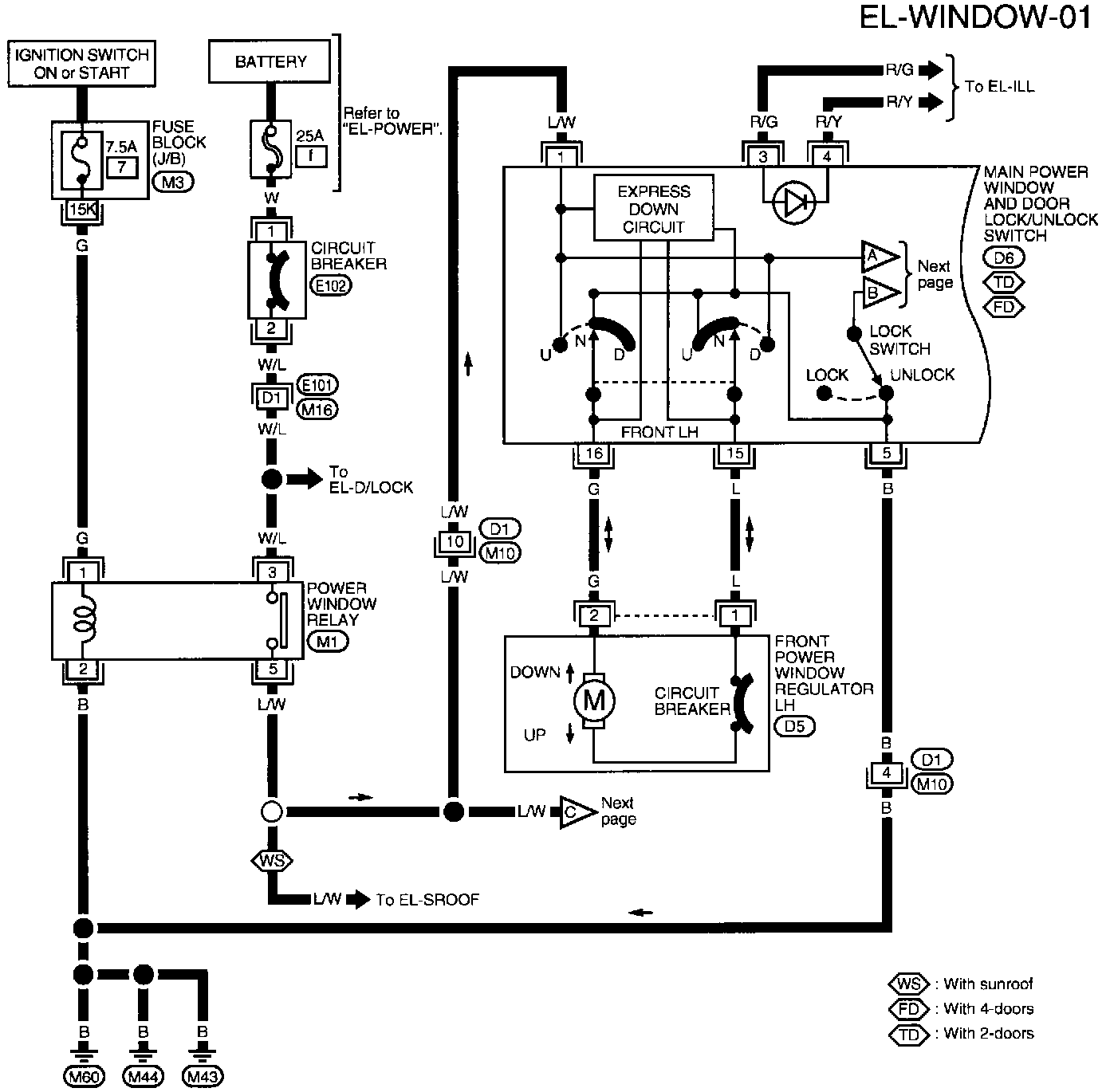

EL-WINDOW-01 Power Window (Part 1 Of 2):

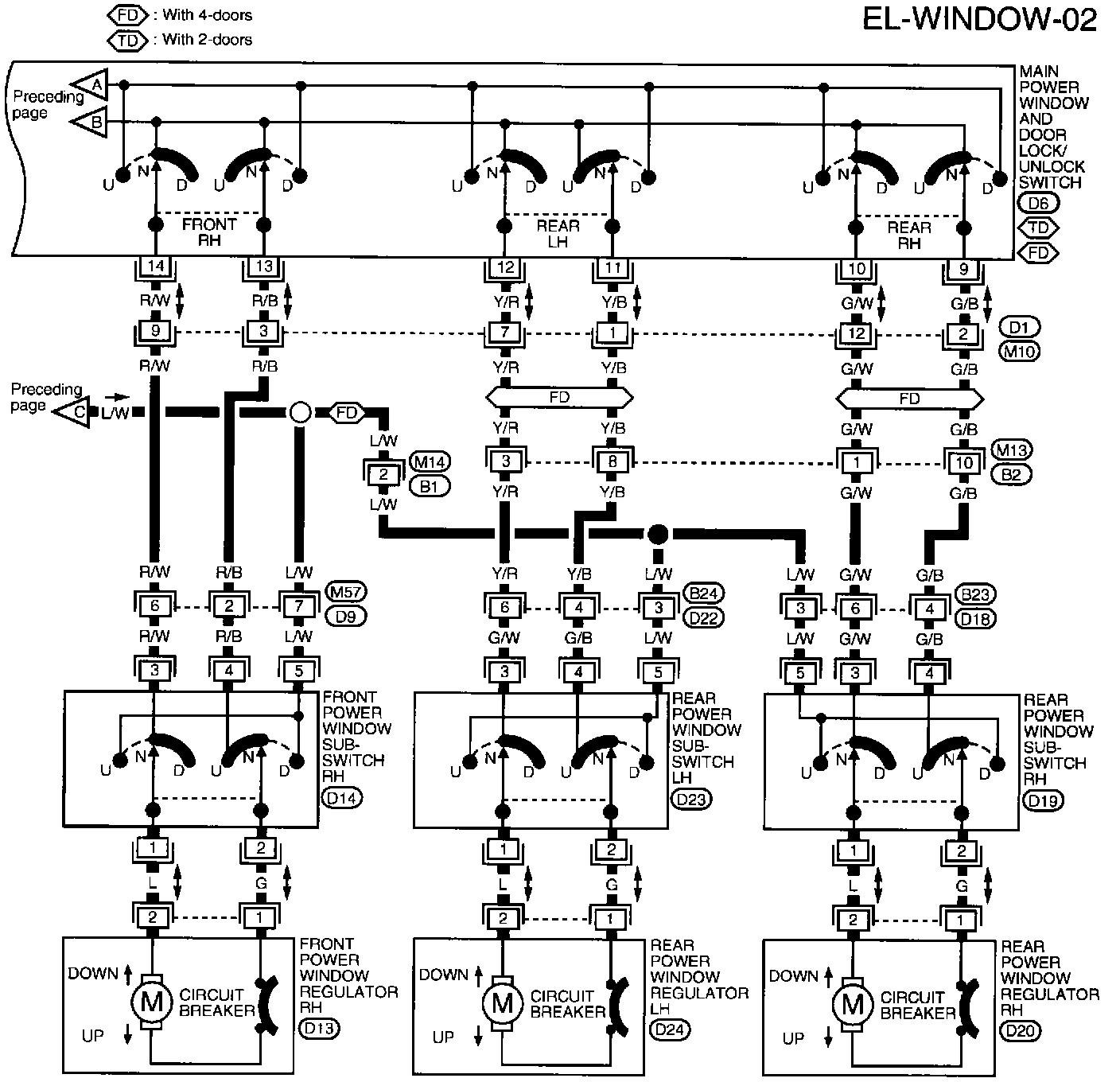

EL-WINDOW-02 Power Window (Part 2 Of 2):
