Reverse Clutch End Play

Measure clearance between oil pump cover and thrust washer for reverse clutch drum.
Select proper thickness of thrust washer so that end play is within specifications.

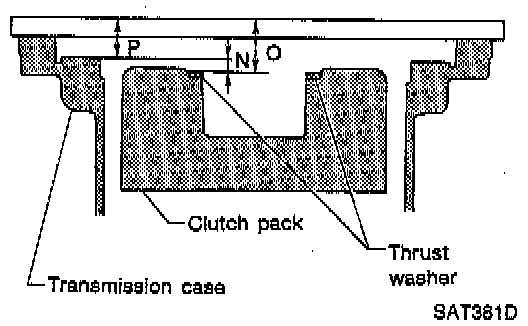

1. Measure dimensions "O" and "P" and then calculate dimension "N".





a. Place thrust washer on reverse clutch drum.

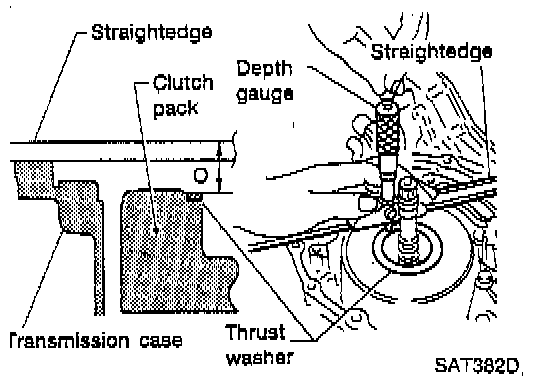

b. Measure dimension "O".

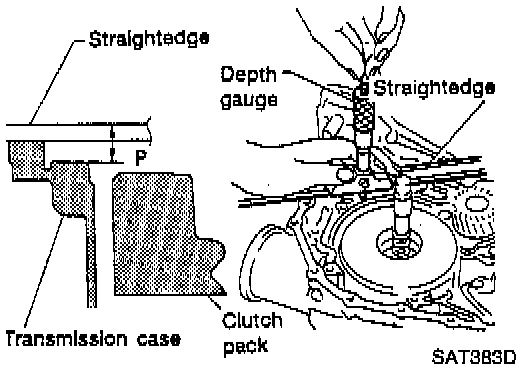

c. Measure dimension "P".
d. Calculate dimension "N".
"N": Distance between oil pump fitting surface of transmission case and thrust washer on reverse clutch drum.
N = O - P

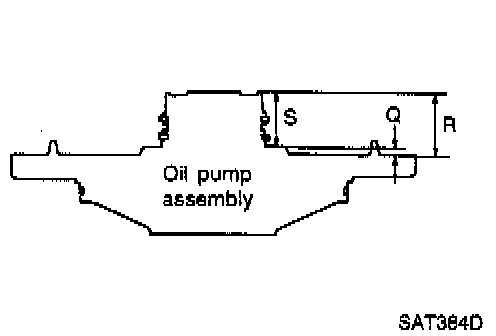

2. Measure dimensions "R" and "S" and then calculate dimension "Q".

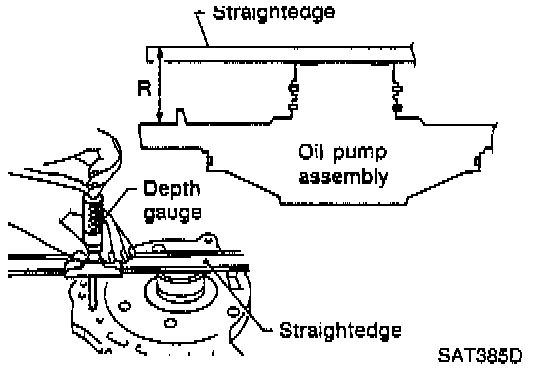

a. Measure dimension "R".

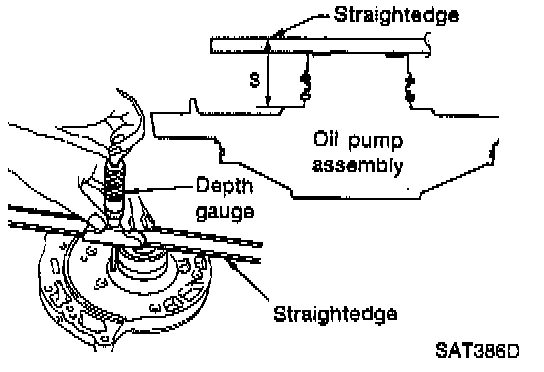

b. Measure dimension "S".
c. Calculate dimension "Q".
"Q": Distance between transmission case fitting surface and thrust washer mating surface. Q = R - S

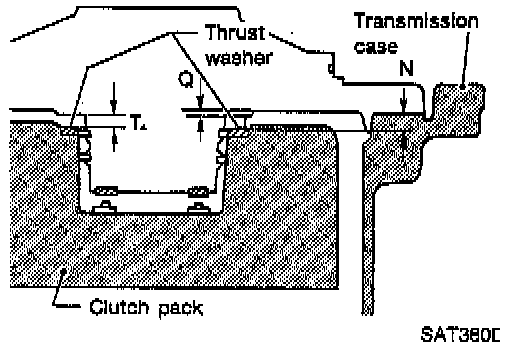

3. Adjust reverse clutch end play "T4".
T4 = N - Q
Reverse clutch end play: 0.65 - 1.00 mm (0.0256 - 0.0394 inch)
Select proper thickness of thrust washer so that reverse clutch end play is within specifications.
