Overhaul

DISASSEMBLY

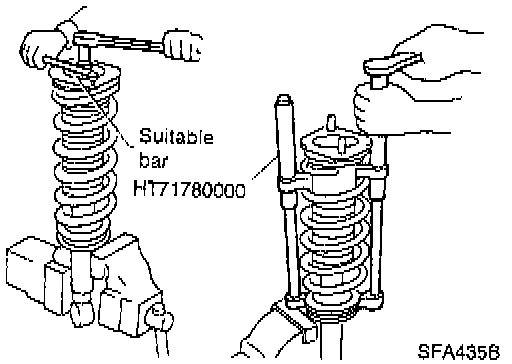

1. Set shock absorber in vise with attachment, then loosen piston rod lock nut.

WARNING: DO NOT REMOVE PISTON ROD LOCK NUT ON VEHICLE.

2. Compress spring with Tool so that the shock absorber upper spring seat can be turned by hand.





3. Remove piston rod lock nut.

INSPECTION

Shock Absorber Assembly
^ Check both compression and extension for smooth operation through a full stroke.
^ Check for oil leakage on welded or gland packing portions.
^ Check piston rod for cracks, deformation or other damage. Replace if necessary.

Upper Rubber Seat And Bushing
^ Check rubber parts for deterioration or cracks. Replace if necessary.

Coil Spring
^ Check for cracks, deformation or other damage. Replace if necessary.

ASSEMBLY
Refer to the illustrations when servicing, noting the following:
^ When installing coil spring, be careful not to reverse top and bottom direction. (Top end is flat.)





^ When installing coil spring on shock absorber, it must be positioned as shown in figure.





^ Locate upper spring seat as shown.
