Without Supplemental Restraint System

Refer to the illustrations when servicing, noting the following:

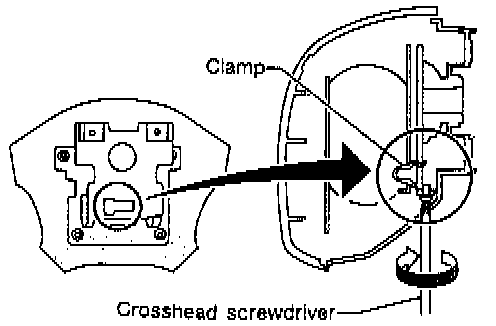

1. Insert a crosshead screwdriver into hole on lower side of spoke and remove clamp and remove horn pad.
2. Lift horn pad off by hand. Disconnect horn connector and remove steering wheel nut.

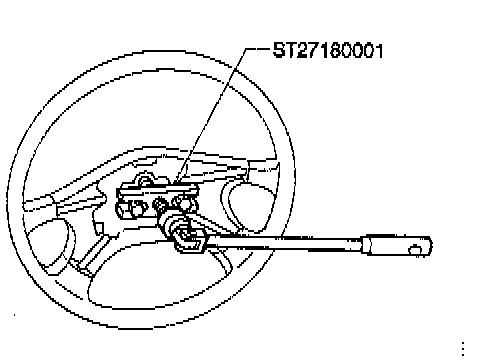

3. Remove steering wheel with steering wheel puller tool No. ST27180001, or equivalent.

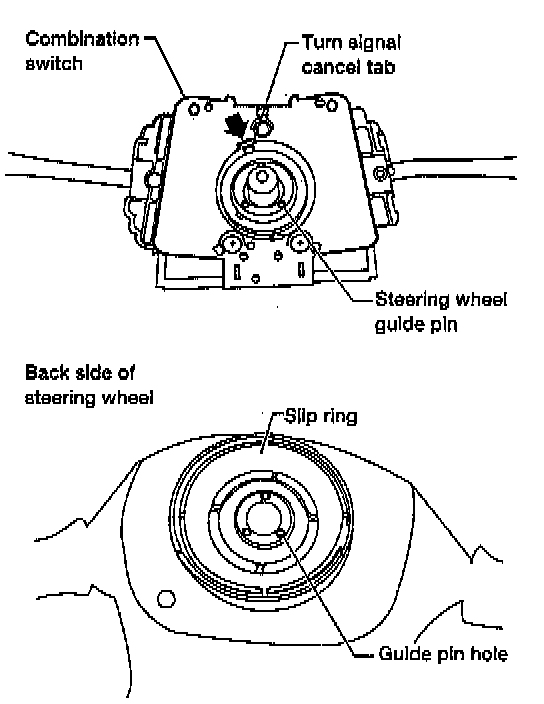

4. Before installing the steering wheel, align the turn signal cancel tab with the notch of combination switch as shown.

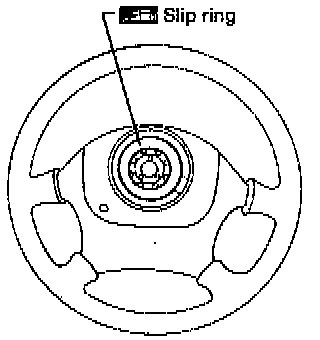

5. When installing steering wheel, lubricate with multi-purpose grease. Apply grease to entire surface of horn contact slip ring.
