LEMON Manuals: Even more car manuals for everyone

Home >> Nissan-Datsun >> 1997 >> Sentra GXE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Power Steering Pressure Switch >> Diagrams >> Diagram Information and Instructions >> Sample Diagram Information >> Description >> Diagrams

Description: Diagrams

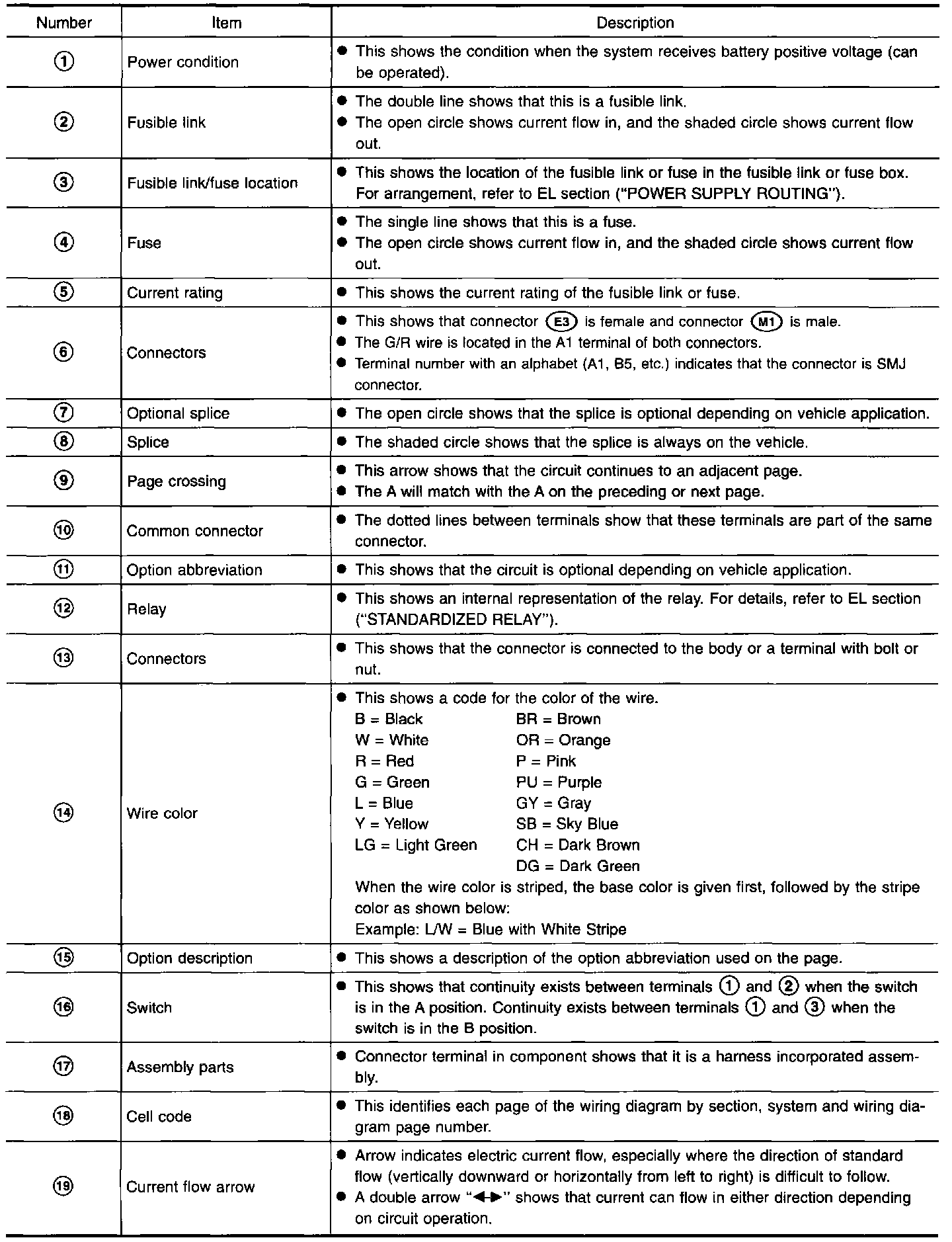

Description (Part 1 Of 2):

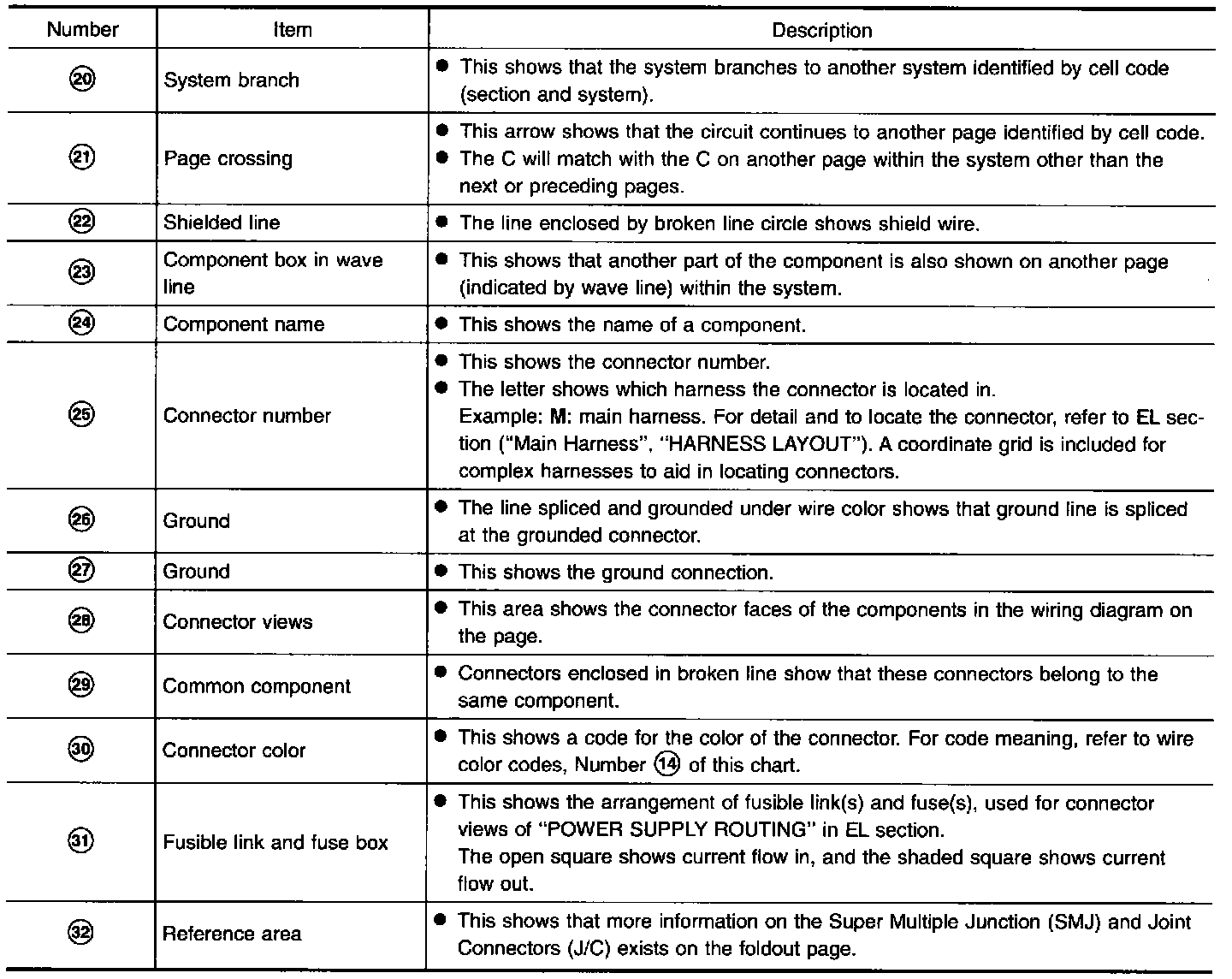

Description (Part 2 Of 2):
