How to Read Harness Layout

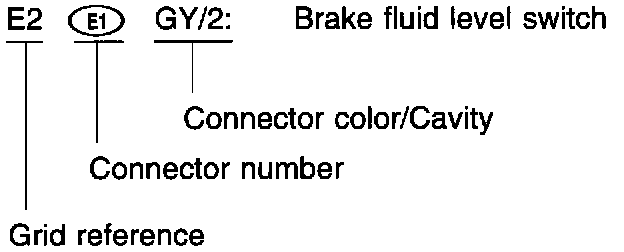

How To Read Harness Layout Example:

The following Harness Layouts use a map style grid to help locate connectors on the drawings:
^ Engine Room Harness (Engine Compartment)
^ Main Harness
^ Body Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

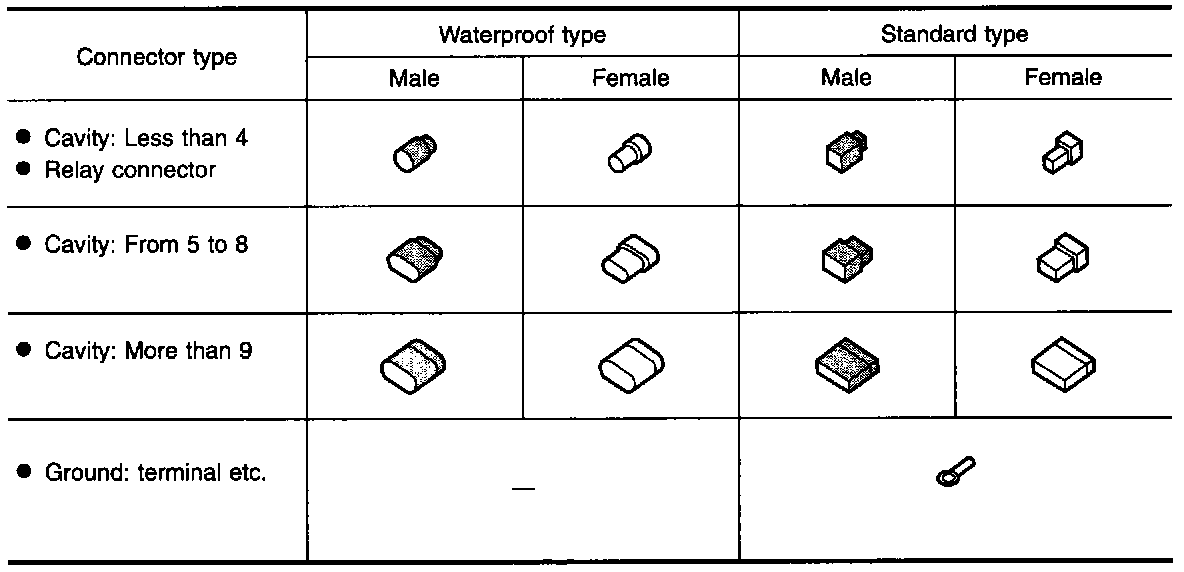

Connector Symbol:

CONNECTOR SYMBOL
Main symbol of connector (In Harness Layout) are indicated in the Image.
