EL-DTRL
EL-DTRL

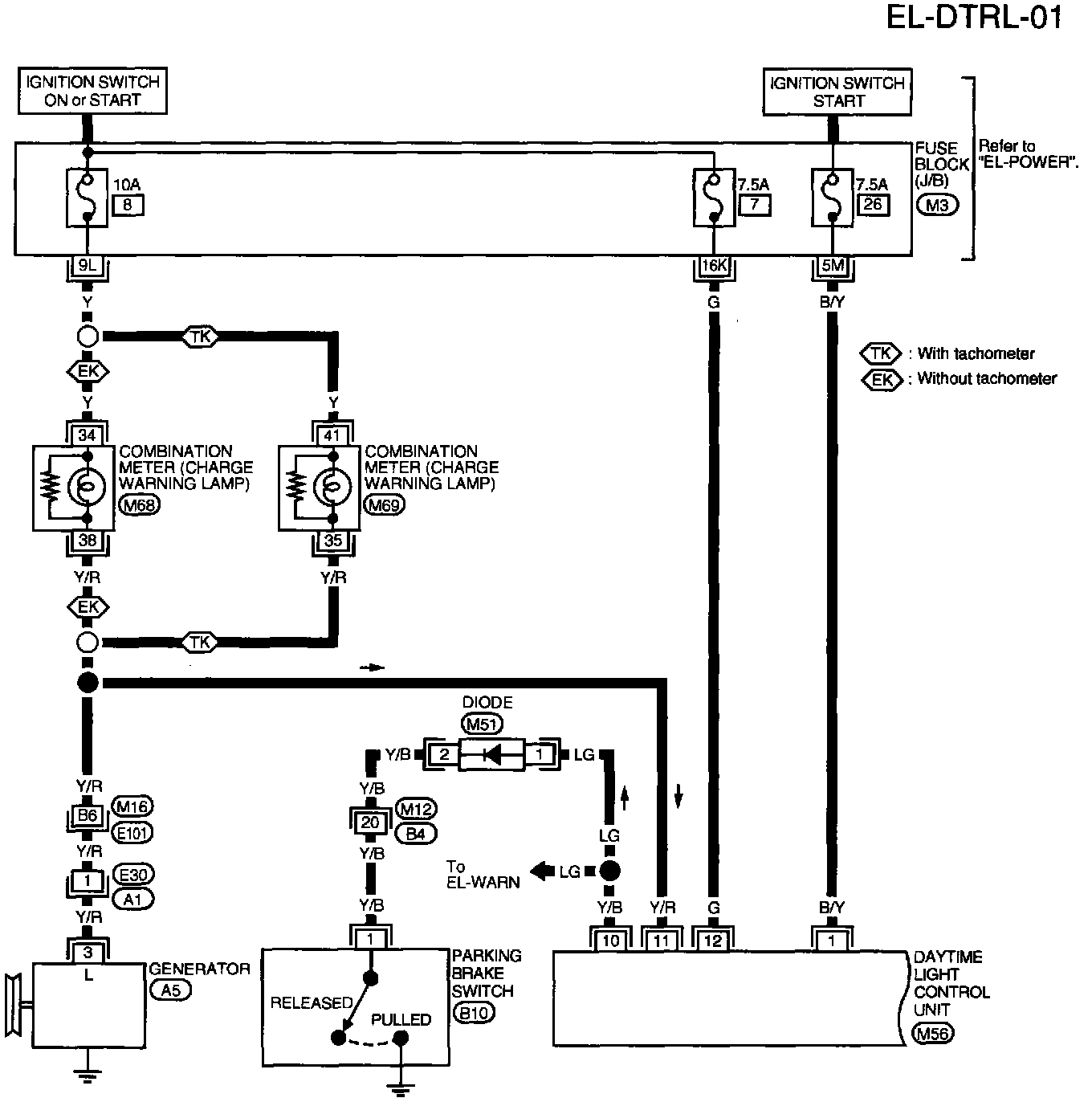

EL-DTRL-01 Headlamp (Part 1 Of 3) (For Canada):

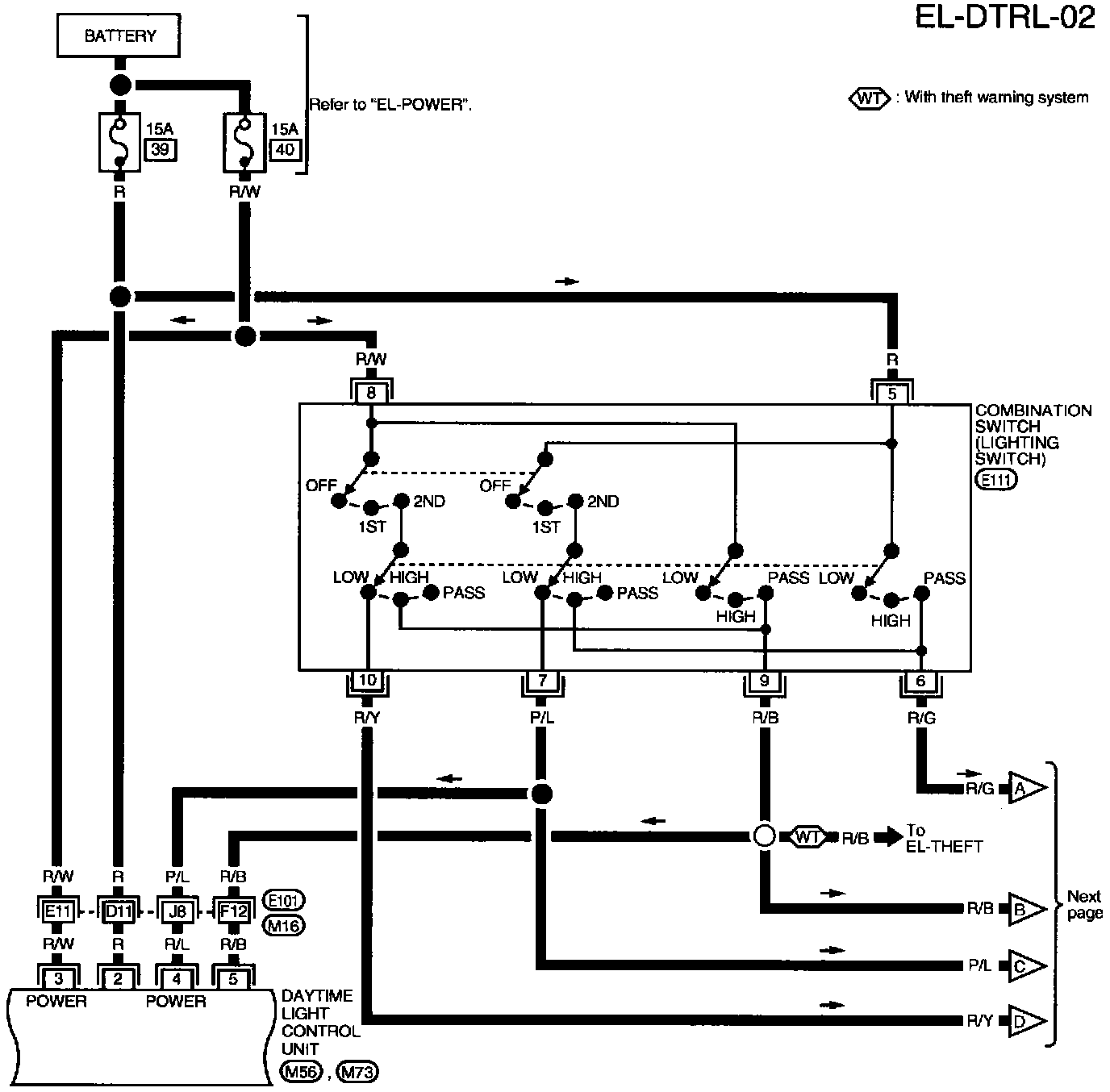

EL-DTRL-02 Headlamp (Part 2 Of 3) (For Canada):

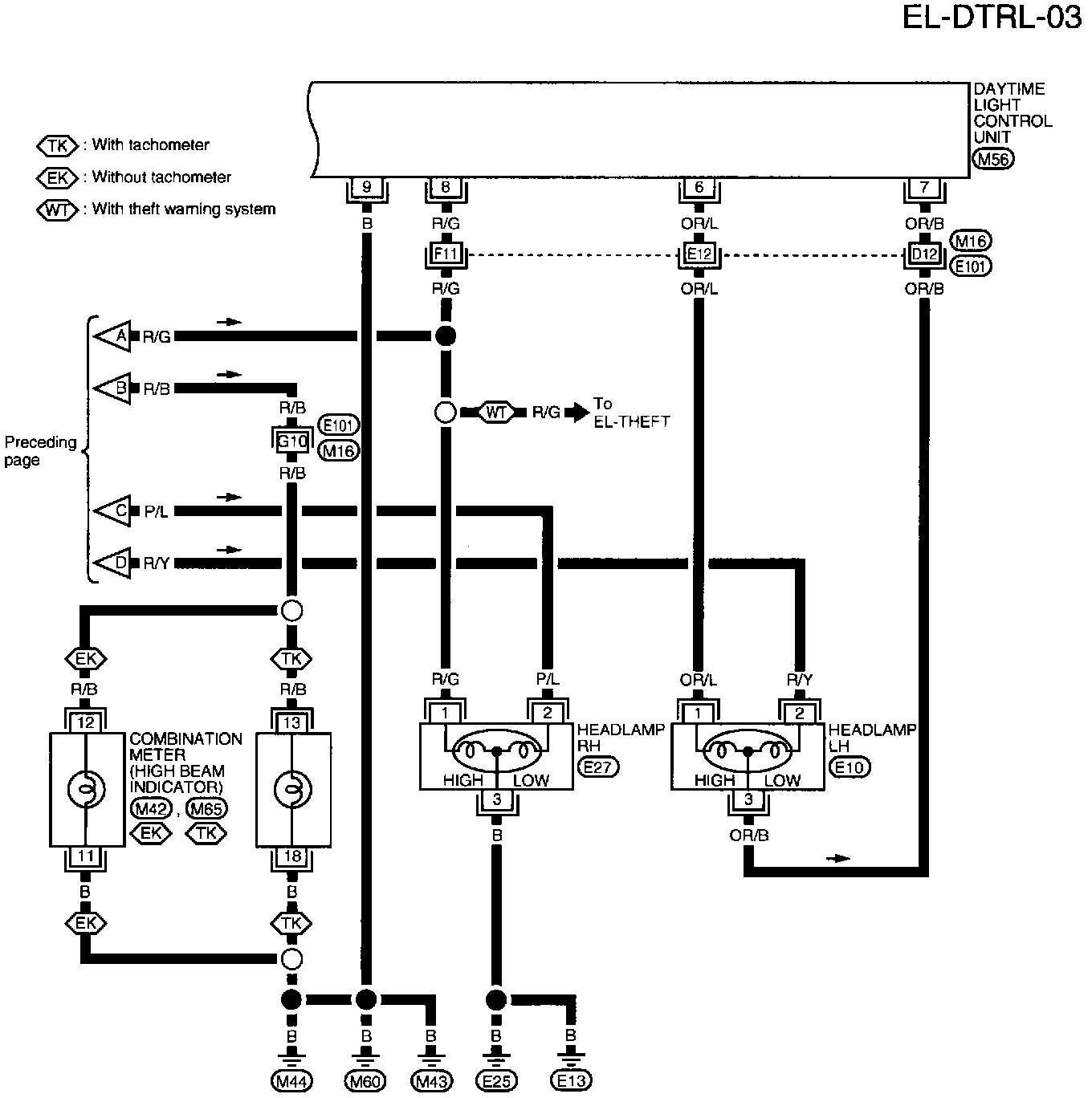

EL-DTRL-03 Headlamp (Part 3 Of 3) (For Canada):
