Home >> Nissan-Datsun >> 1997 >> Sentra GXE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> EC-BYPS/V

EC-BYPS/V

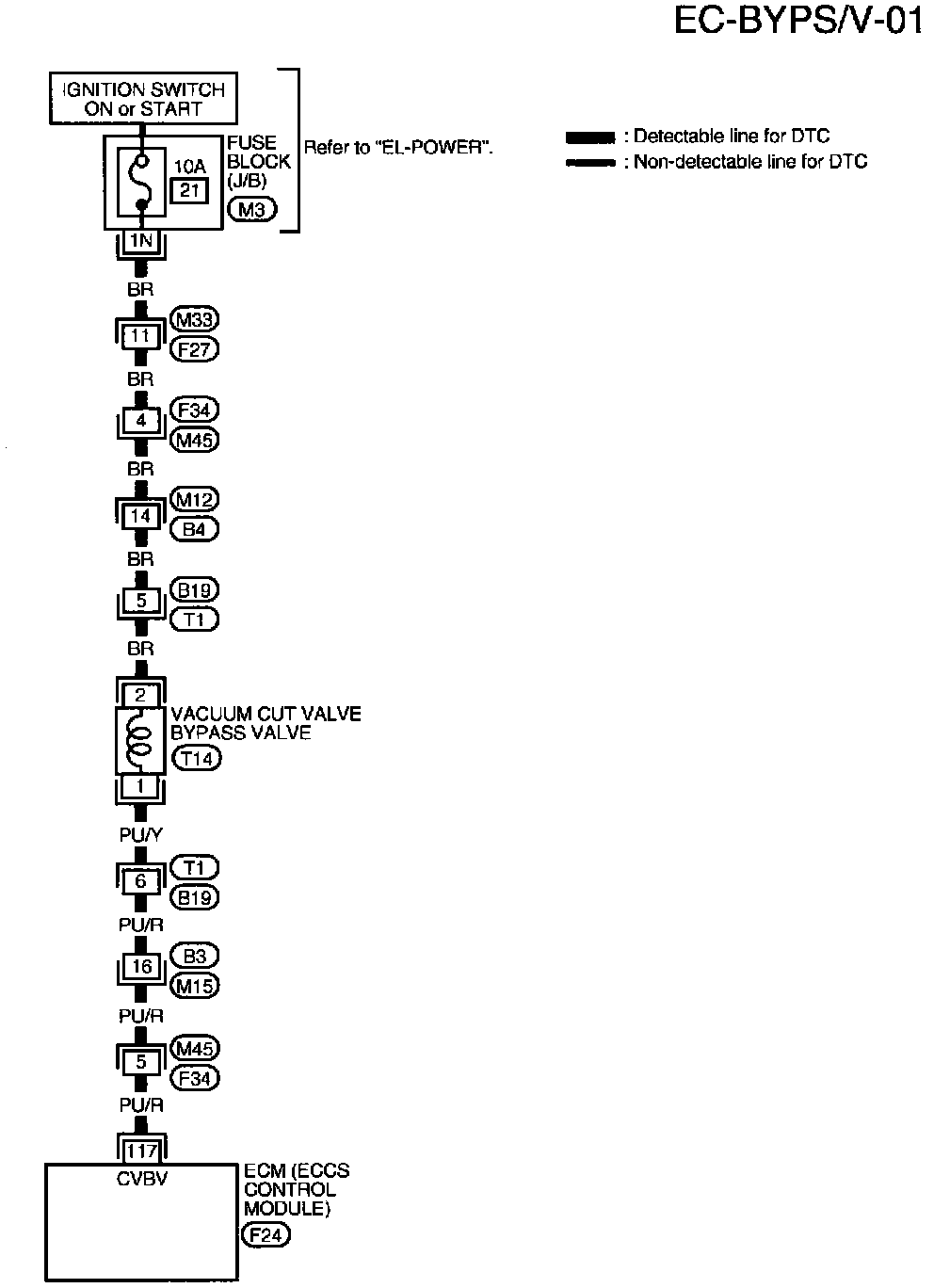

EC-BYPS/V-01 Vacuum Cut Bypass Valve (DTC: P1441):
