EC-ACC/V

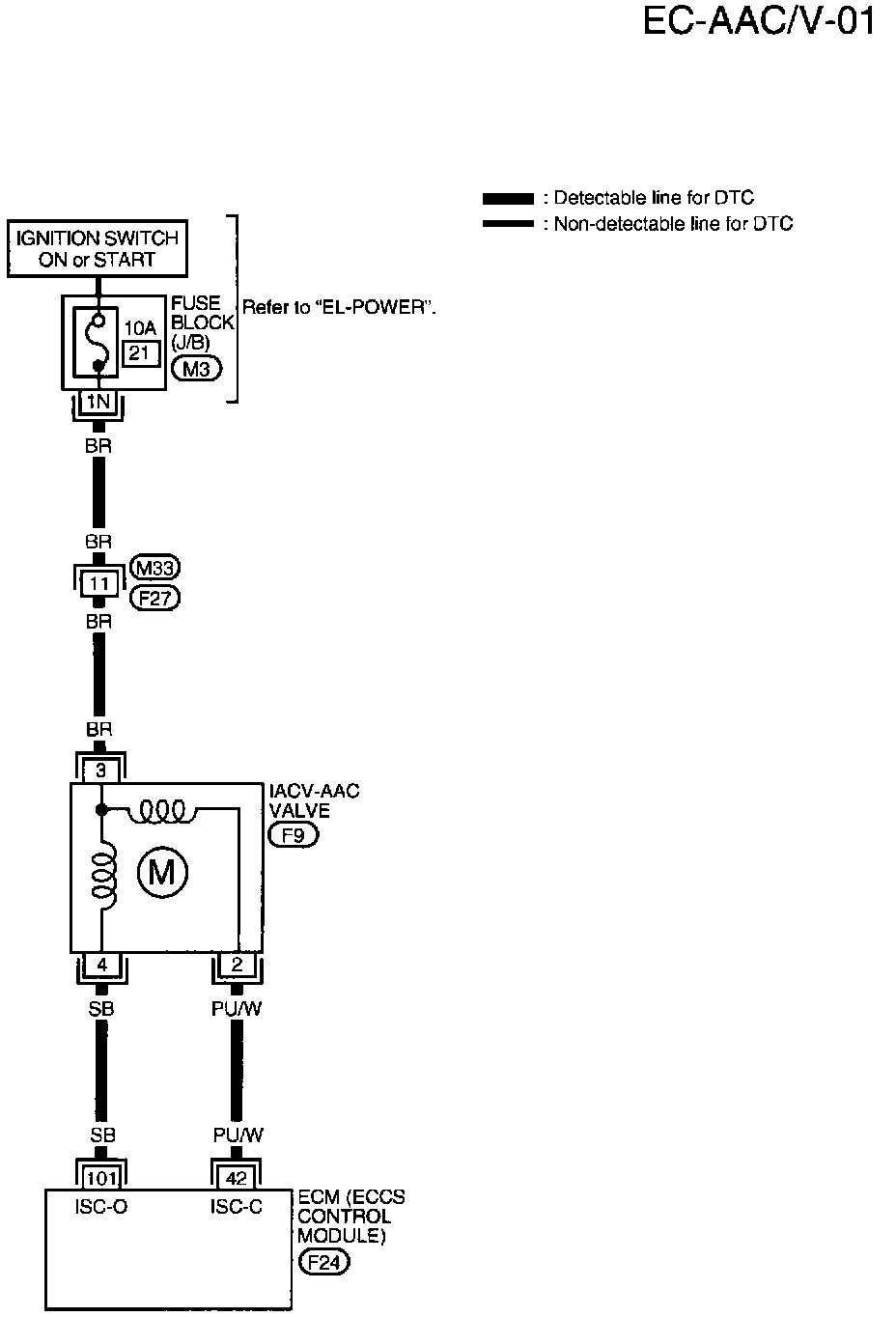

EC-AAC/V-01 Idle Air Control Valve (IACV) - Auxiliary Air Control (AAC) Valve (DTC: P0505):
