RL4F03A

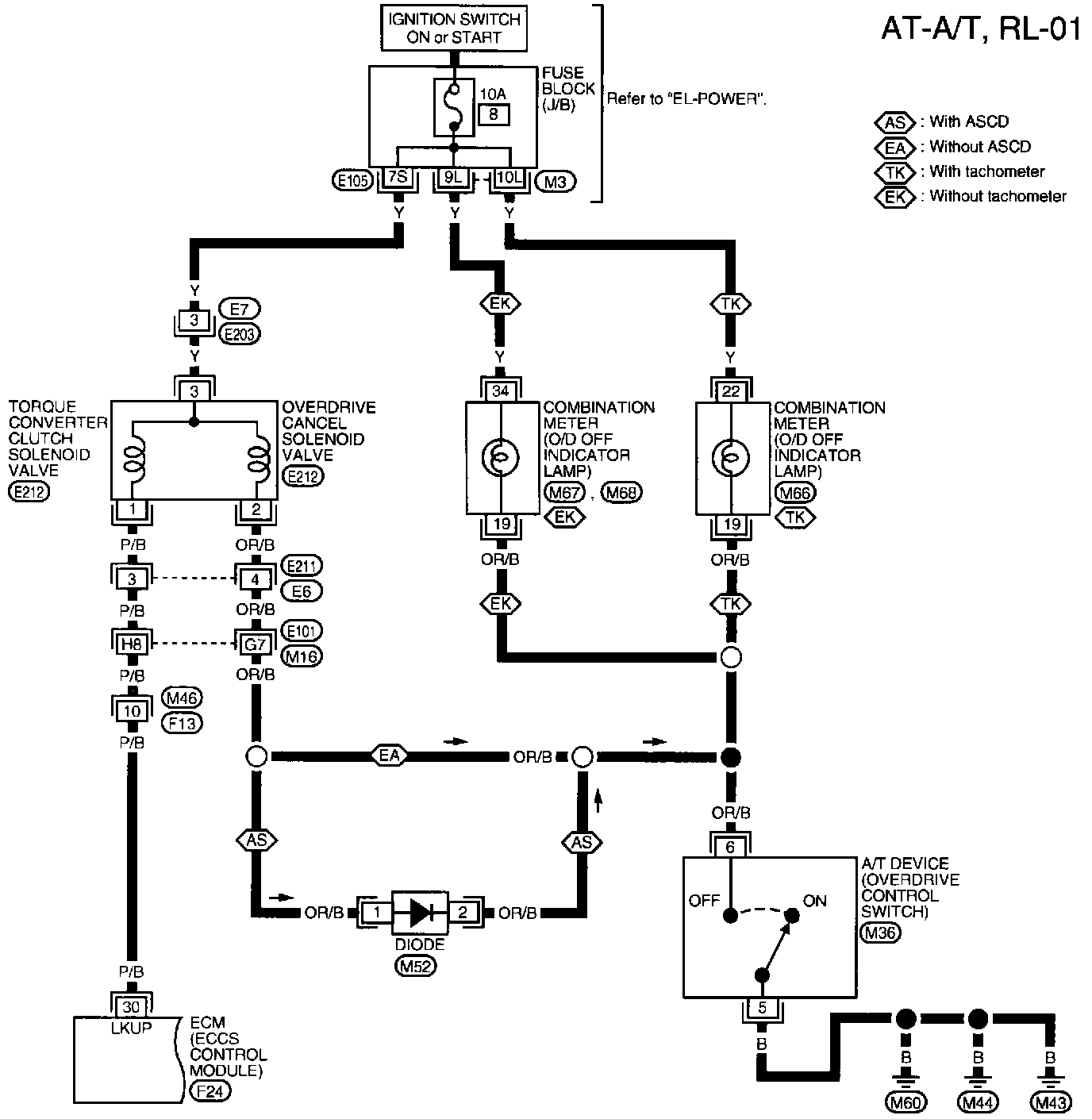

AT-A/T, RL-01 Overall System Wiring Diagram -A/T, RL-:

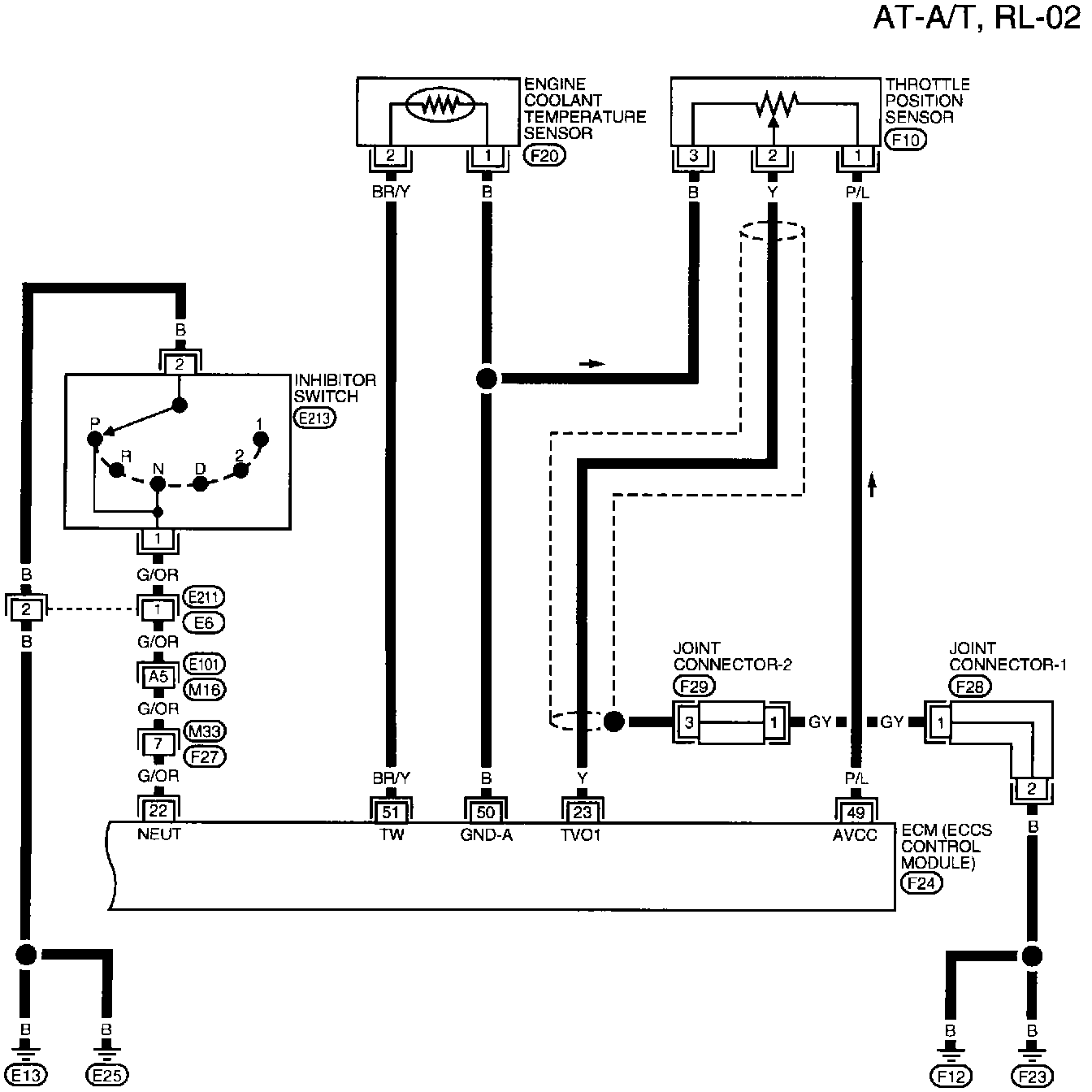

AT-A/T, RL-02 Overall System Wiring Diagram -A/T, RL-:
