Parking Brake Cable: Service and Repair

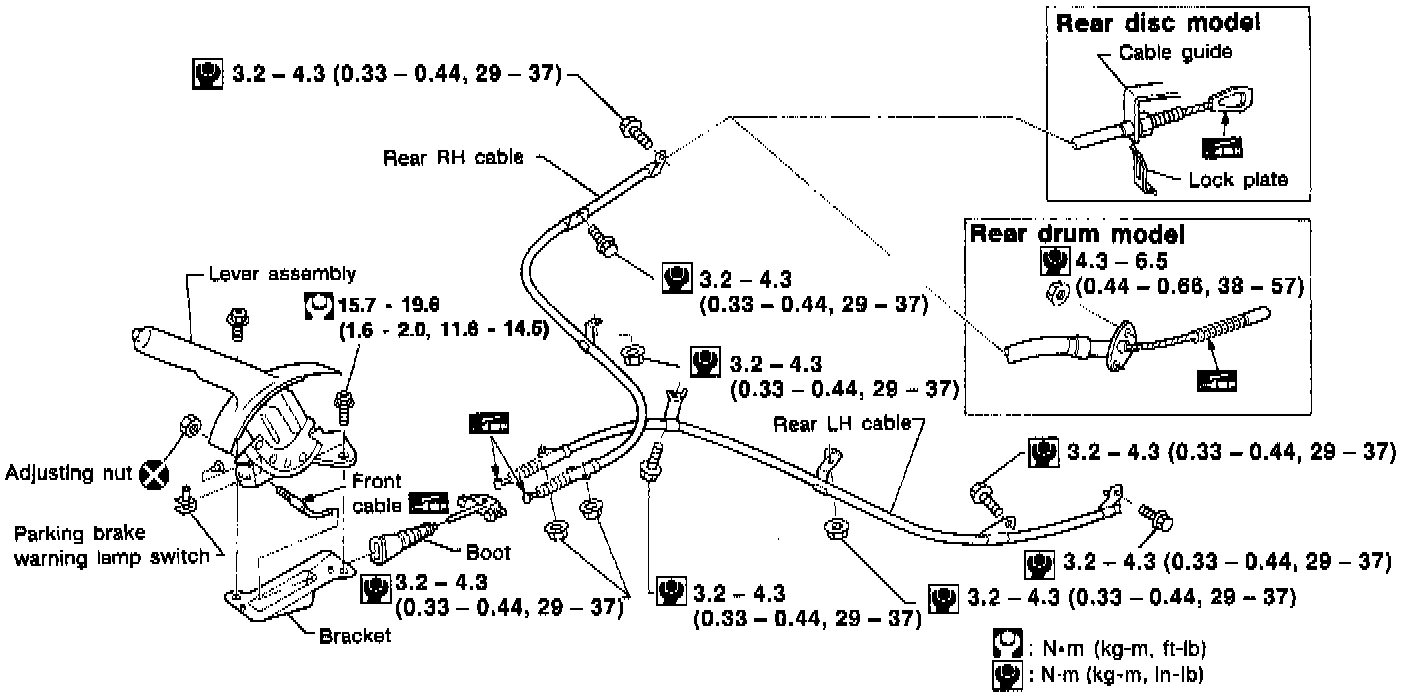

Exploded View Of Parking Brake Assembly:

REPLACEMENT
1. To remove parking brake cable, first remove center console.





2. Disconnect warning lamp connector.
3. Remove bolts, slacken front cable and remove adjusting nut.





4. On models with rear disc brake, remove lock plate and disconnect cable.
5. On models with rear drum brake, ensure parking brake lever is fully released and remove brake drum. Adjustments
6. Reverse procedure to install.
