Premium Audio System
Premium Audio System

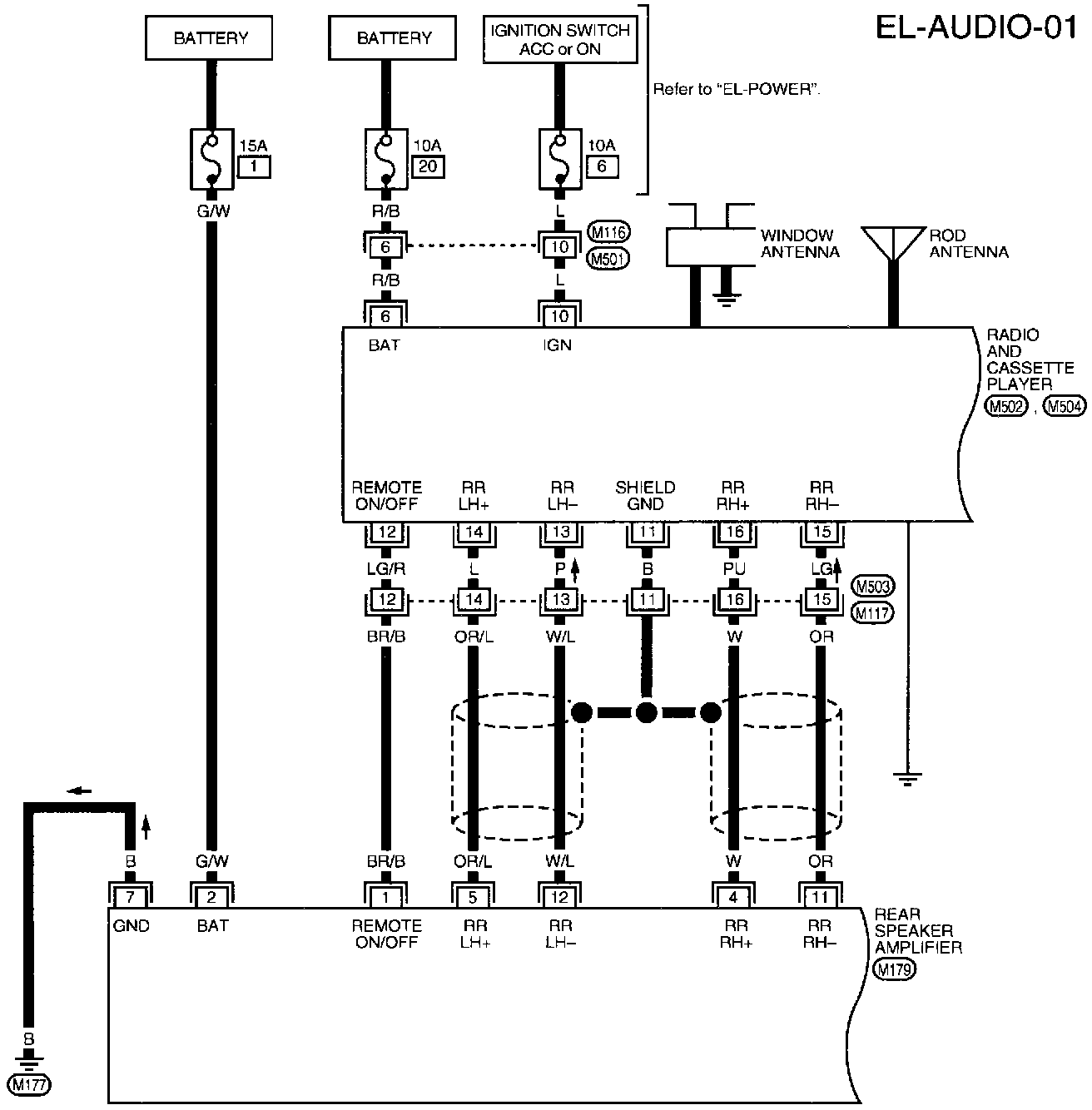

EL-AUDIO-01 Premium Audio System (Part 1 Of 2):

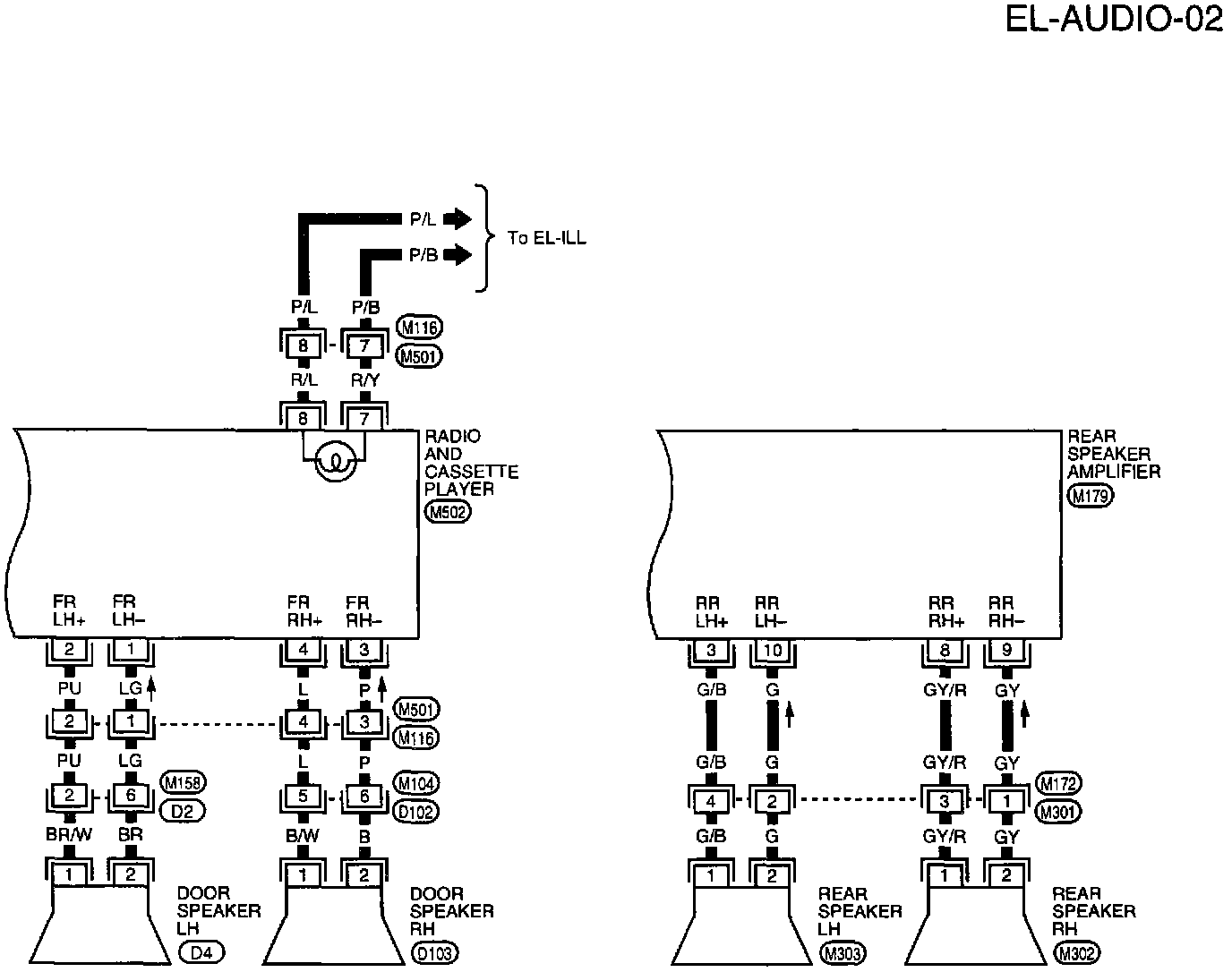

EL-AUDIO-02 Premium Audio System (Part 2 Of 2):
