LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
1997
>>
D21 Hardbody XE King Cab 2WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EL-DTRL (For Canada)
EL-DTRL (For Canada)

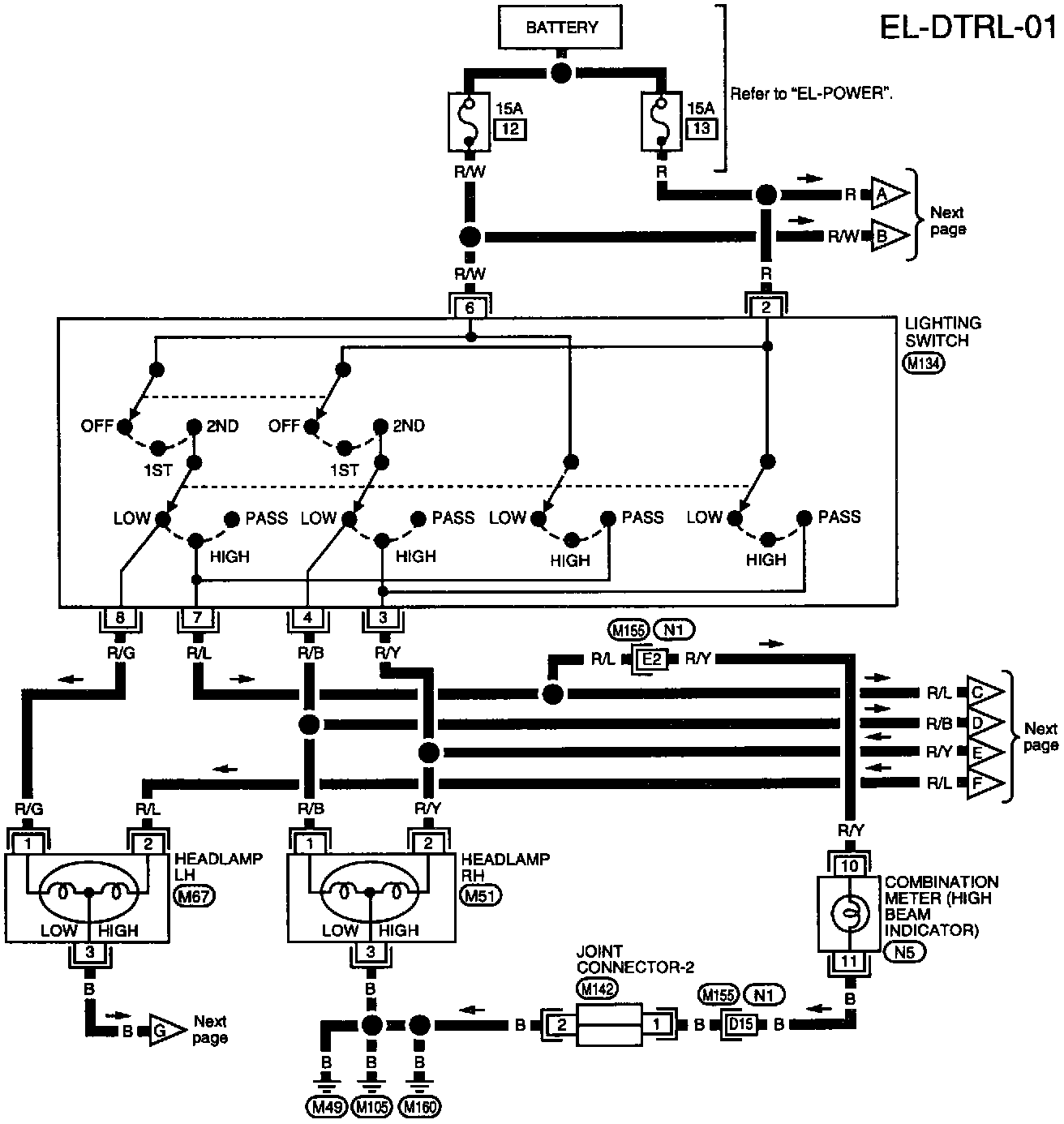

EL-DTRL-01 Headlamp (Canada) (Part 1 Of 3):

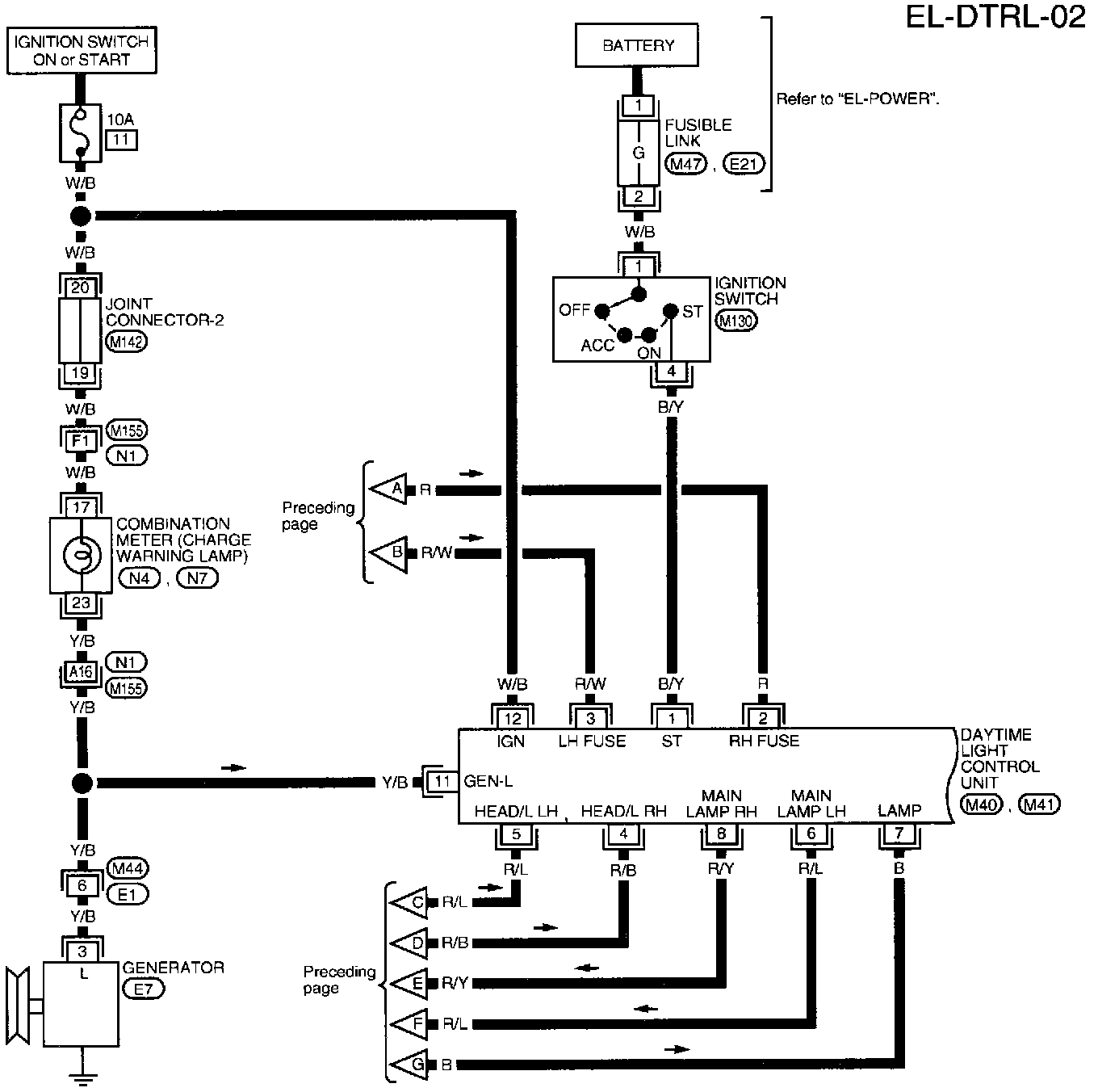

EL-DTRL-02 Headlamp (Canada) (Part 2 Of 3):

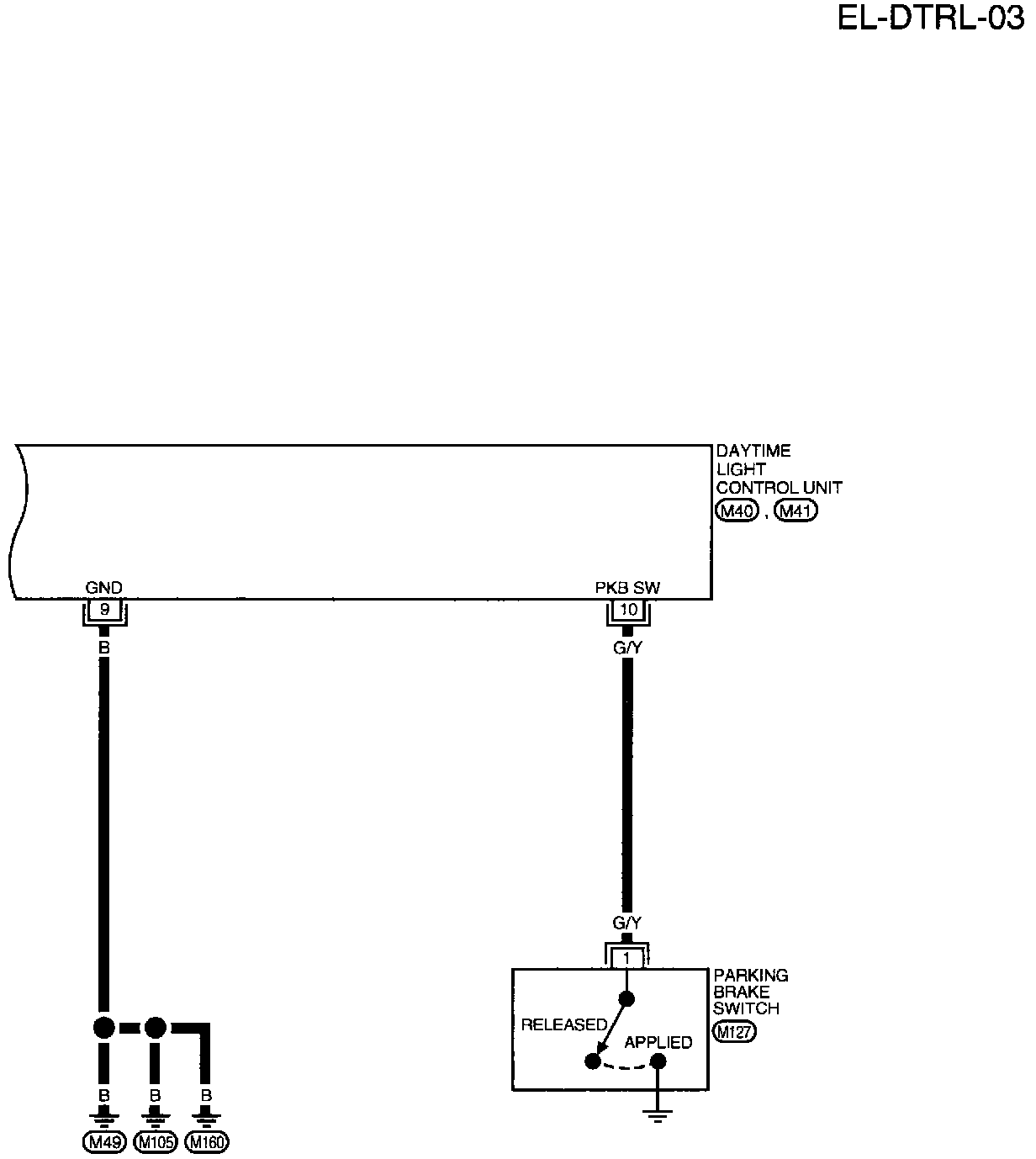

EL-DTRL-03 Headlamp (Canada) (Part 3 Of 3):
