Shift Linkage: Service and Repair

INSPECTION

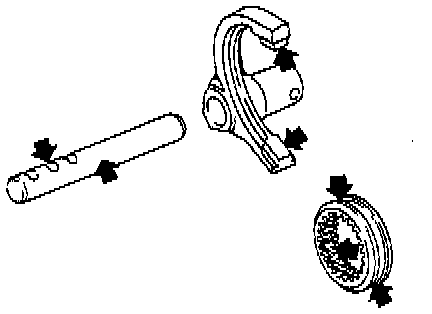

- Check contact surface and sliding surface for wear, scratches, projections or other faulty conditions.

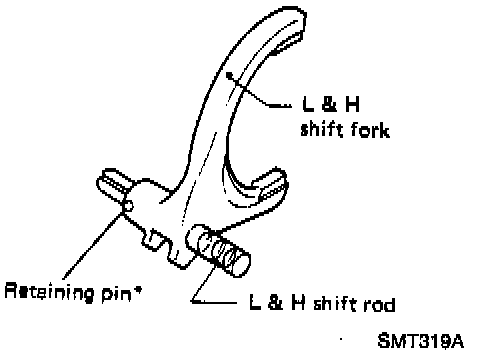

L & H SHIFT ROD & FORK
- Assemble as shown in illustration (the retaining pin is the same size as the one for the 2-4 shift rod).
- Retaining pin is the same size as the one for 2-4 shift rod.

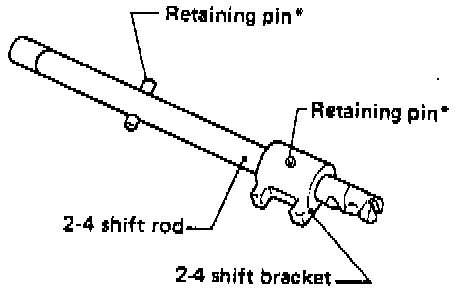

2-4 SHIFT ROD & FORK
- Assemble as shown in illustration (the retaining pin is the same size as the one for the 2-4 shift rod).

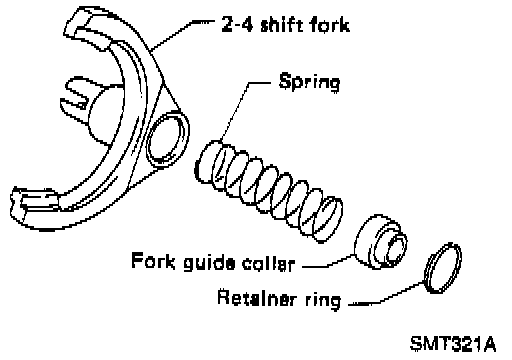

- Pay special attention to the direction of fork guide collar.
