Counter Gear: Service and Repair

DISASSEMBLY

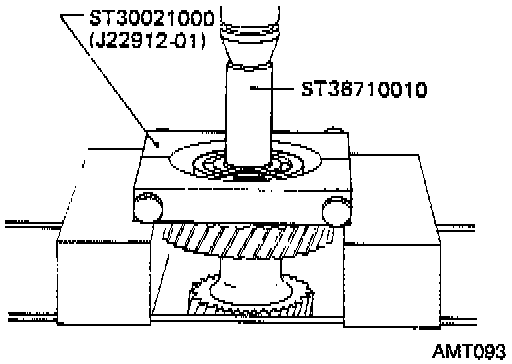

1. Press out counter gear front bearing. Remove front sub-gear, spacer and dish plate.

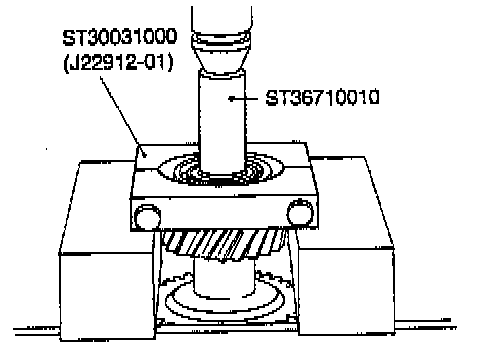

2. Press out counter gear rear bearing. Remove rear sub-gear, spacer and dish plate.





INSPECTION

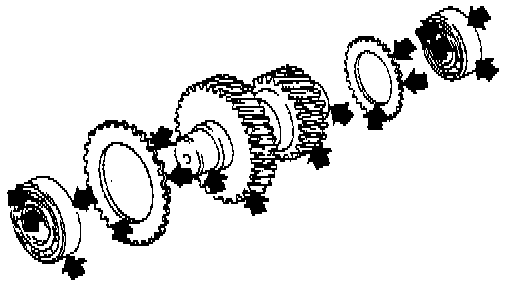

Gear And Shaft
- Check gears for excessive wear, chips or cracks.
- Check shaft for cracks or wear.

Bearing
- Make sure bearings roll freely and are free from noise, crack, pitting or wear.





ASSEMBLY

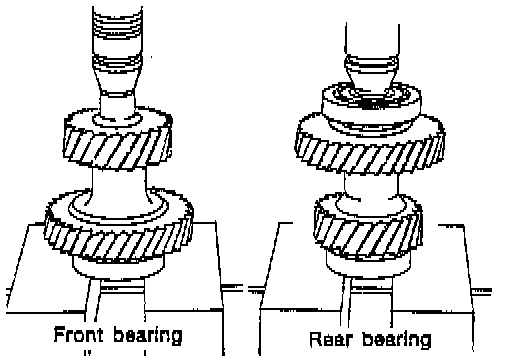

1. Install front sub-gear, dish plate and spacer. Press on counter gear front bearing.
2. Install rear sub-gear, dish plate and spacer. Press on counter gear rear bearing.
