Rear Oil Seal

REMOVAL
Refer to the illustrations when servicing, noting the following:

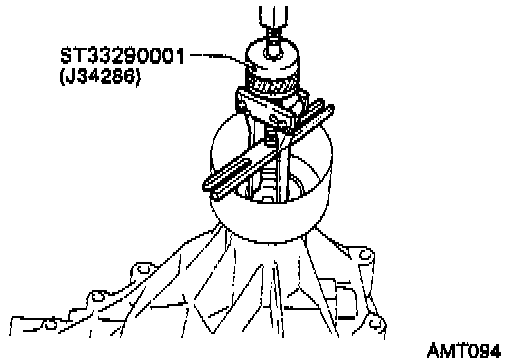

- Pull out rear oil seal.





INSTALLATION

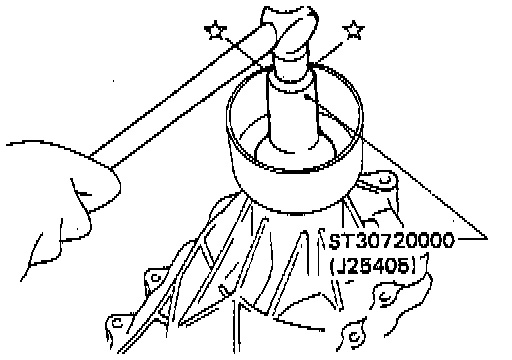

- Install new rear oil seal until it stops.
- Before installing, apply multi-purpose grease to seal lip.
