Shift Shaft Oil Seal

REMOVAL
Refer to the illustrations when servicing, noting the following:

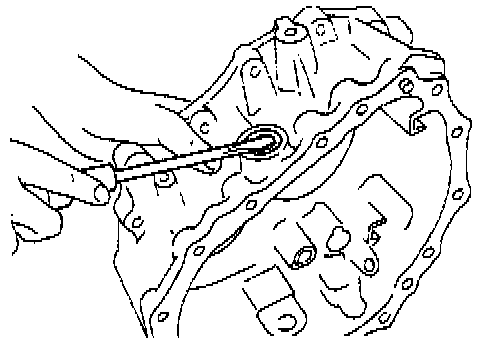

- Use a screwdriver to pry out old seal. Be careful not to damage case.
- Always replace with a new one whenever it has been removed.





INSTALLATION

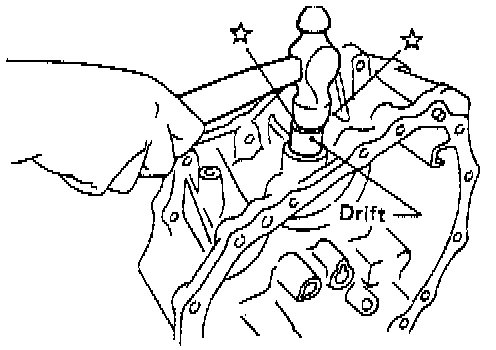

- Install new shift shaft oil seal until it stops.
- Before installing, apply multi-purpose grease to seal lip.
