Front Case Cover






REMOVAL
Refer to the illustrations when servicing, noting the following:

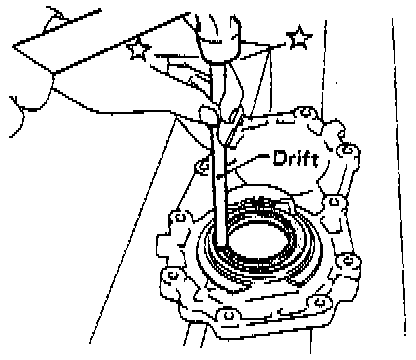

- Drive out old seal from inside of front case cover. Be careful not to damage front case cover.





INSTALLATION

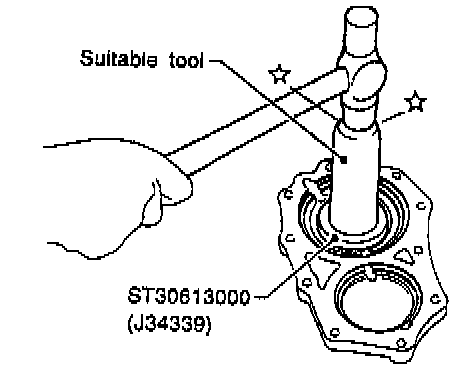

- Install new front case cover oil seal until it stops.
- Before installing, apply multi-purpose grease to seal lip.
