Bearing Retainer/Oil Catcher






REMOVAL
Refer to the illustrations when servicing, noting the following:

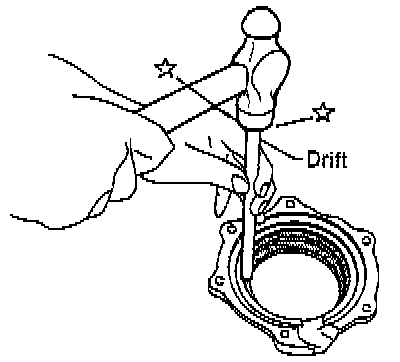

- Drive out oil catcher from inside of bearing retainer.
- Be careful not to damage bearing retainer.





INSTALLATION

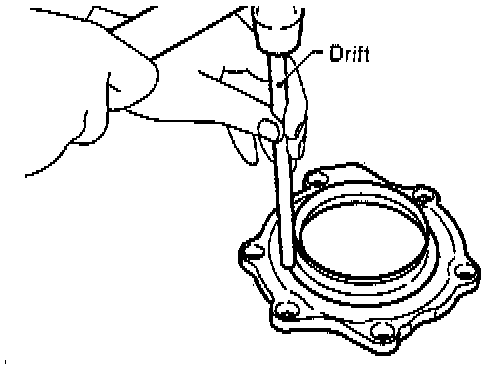

- Install oil catcher until it stops. Be careful not to damage or distort oil catcher or bearing retainer.
- Before installing, apply multi-purpose grease to seal lip.
