Center Case Oil Seal

1. Remove exhaust front tube and heat insulator.
2. Remove front propeller shaft.

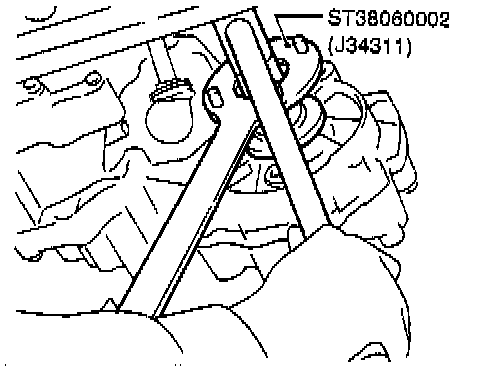

3. Remove companion flange nut.

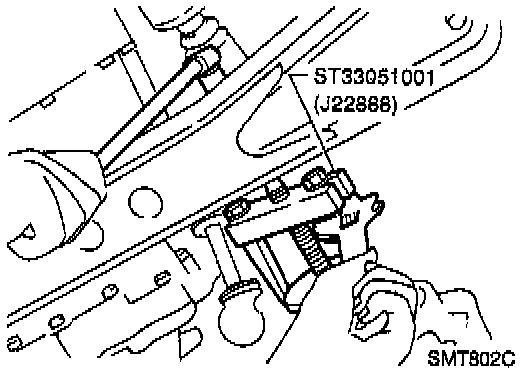

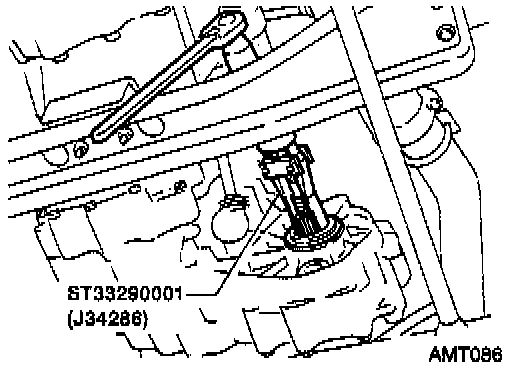

4. Remove companion flange.





5. Remove center case oil seal.
6. Install center case oil seal. Before installing, apply multi-purpose grease to seal lip.
7. Install companion flange.

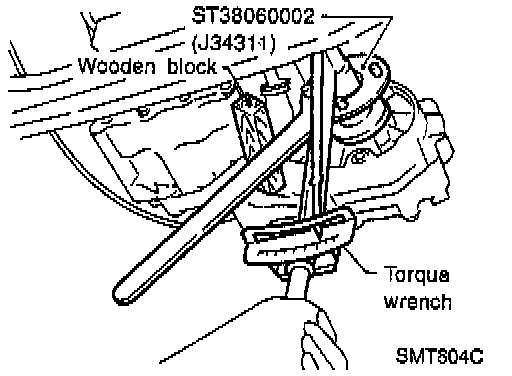

8. Tighten nut to the specified torque.
9. Install front propeller shaft.
