Flex Plate: Testing and Inspection

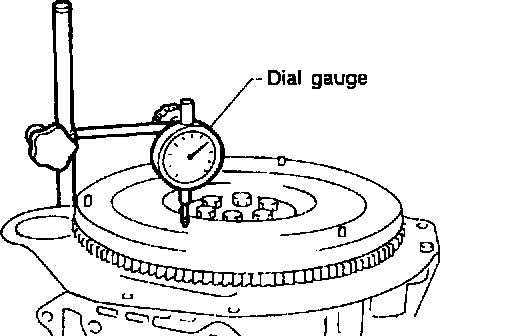

RUNOUT
The runout (total indicator reading) is less than 0.1 mm (0.004 inch).

NOTE:
- Be careful not to damage the ring gear teeth.
- Check for deformation or cracks.
- Keep any magnetized objects away from the ring gear teeth. Do not allow any magnetic materials to contact the signal plate teeth.
