Hub, Rotor and Wheel Bearing

Refer to the illustrations when servicing, noting the following:
1. Remove free-running hub assembly.
2. Remove brake caliper assembly without disconnecting hydraulic line.

CAUTION: Be careful not to depress brake pedal, or piston will pop out. Make sure brake hose is not twisted.

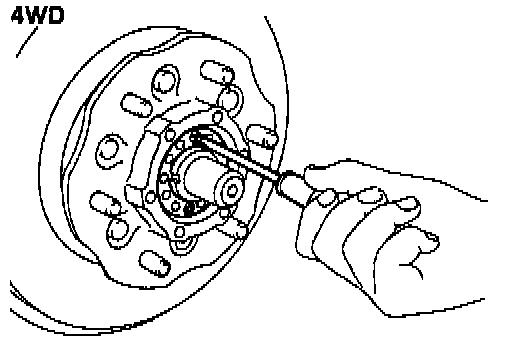

3. Remove lock washer.





4. Remove wheel bearing lock nut with wheel bearing lock nut wrench tool No. KV40105400, or equivalent.





5. Remove wheel hub and wheel bearing.

CAUTION: Be careful not to drop outer bearing.

6. After installing wheel hub and wheel bearing, adjust wheel bearing preload.
