Front

REMOVAL
1. Remove front propeller shaft.
2. Remove drive shaft.

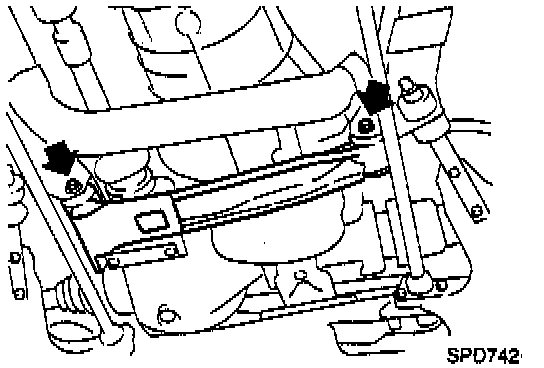

3. Remove engine mounting bolts and raise up engine.

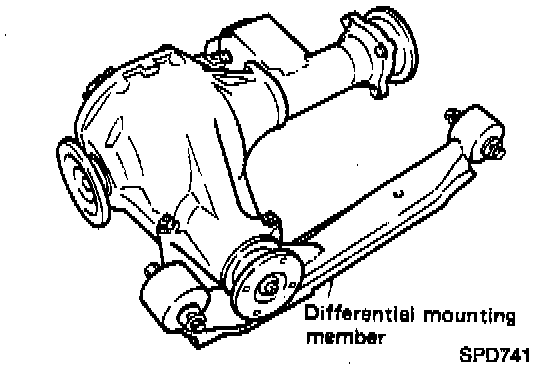

4. Remove front final drive together with differential mounting member.





INSTALLATION
1. Install front final drive assembly together with differential mounting member.

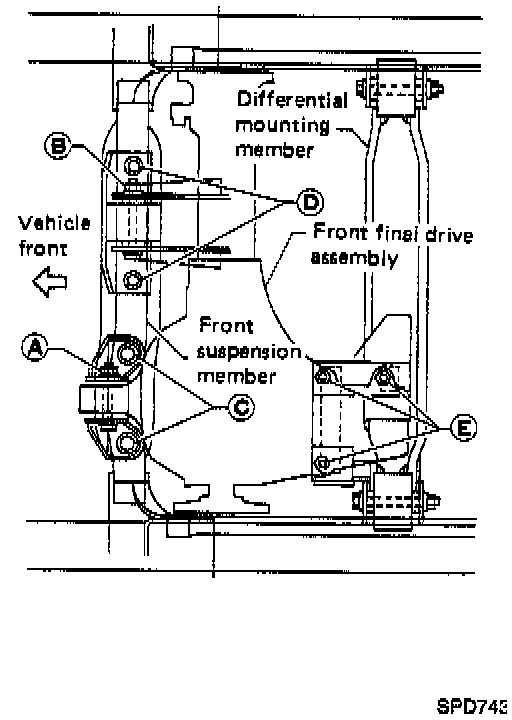

2. Tighten front final drive securing bolts and nuts by following the procedure to prevent drive train vibration.
a. Temporarily tighten nut (A).
b. Temporarily tighten nut (B).
c. Tighten bolt (C) to the torque of 68 - 87 Nm (50 - 64 ft. lbs.).
d. Tighten bolt (D) to the torque of 68 - 87 Nm (50 - 64 ft. lbs.).
e. Tighten nut (A) to the torque of 68 - 87 Nm (50 - 64 ft. lbs.).
f. Tighten nut (B) to the torque of 68 - 87 Nm (50 - 64 ft. lbs.).
g. Tighten nut (E) to the torque of 68 - 87 Nm (50 - 64 ft. lbs.).
3. Install drive shaft.
4. Install front propeller shaft.
