Differential Case

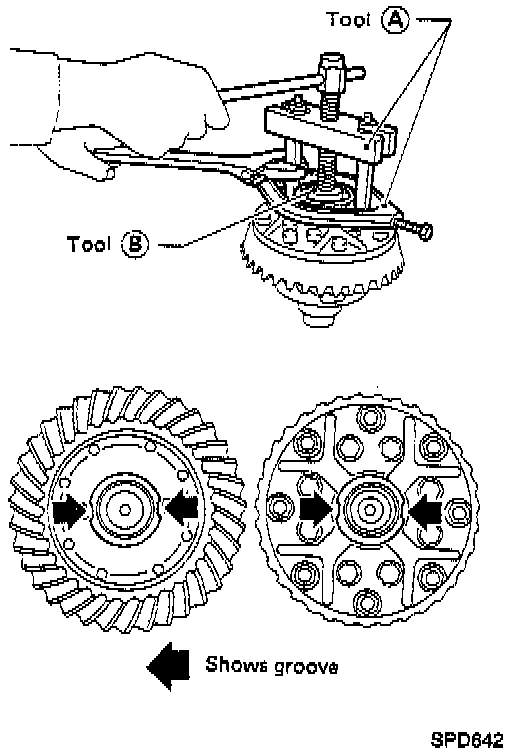

1. Remove side bearing inner cones. To prevent damage to bearing, engage puller jaws in grooves with:
Tool A: Tool number ST33051001 (J22888-20)
Tool B: Tool number ST33061000 (J8107-2)

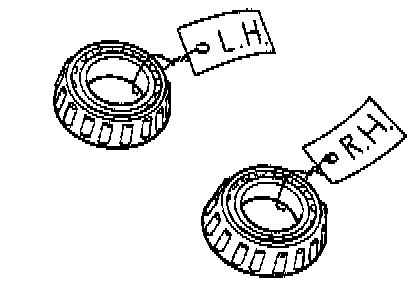

NOTE: Be careful not to confuse the right and left hand parts.

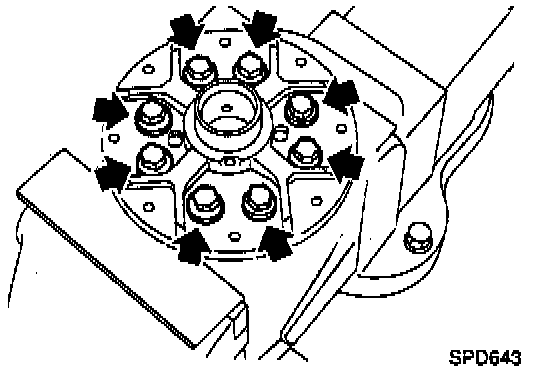

2. Loosen ring gear bolts in a criss-cross pattern.
3. Tap ring gear off the differential case with a soft hammer. Tap evenly all around to keep ring gear from binding.

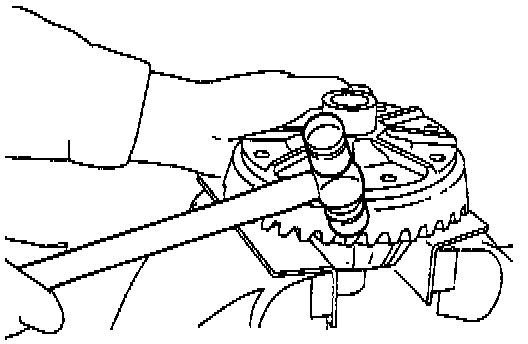

4. Punch off pinion mate shaft lock pin from ring gear side.
