Extension Tube and Differential Side Shaft

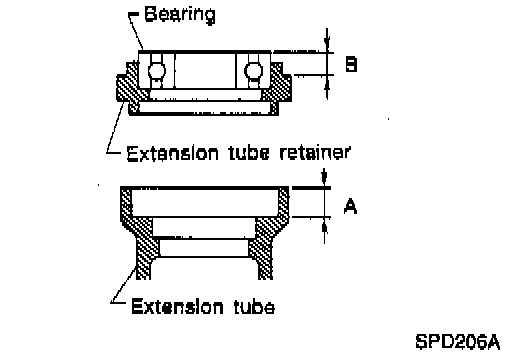

1. Measure rear axle bearing end play.
Rear axle bearing end play (A - B): 0.1 mm (0.0039 inch) or less.





- The end play can be adjusted with bearing adjusting shim.

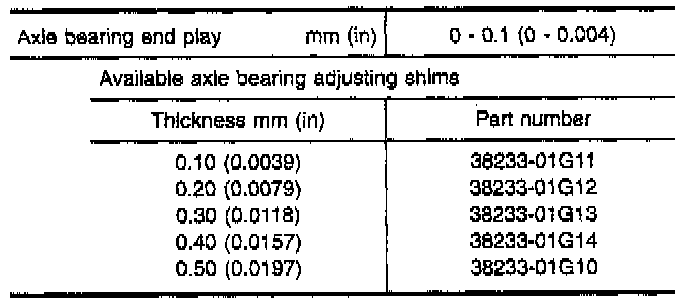

Refer to the illustration for available bearing adjusting shims.

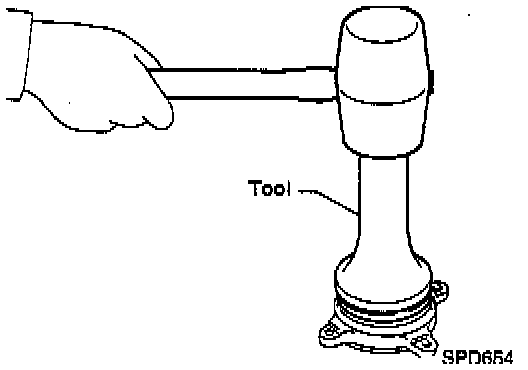

2. Install grease seal with Tool number (J35764).

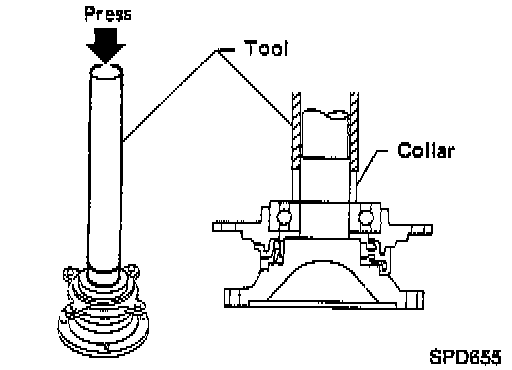

3. Install extension tube retainer, rear axle bearing and rear axle shaft bearing collar on differential side shaft.
4. Install differential side shaft assembly into extension tube.
