Rear Differential






1. Remove propeller shaft.

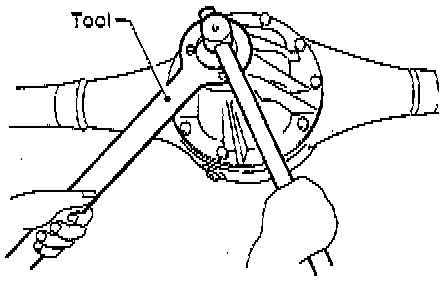

2. Loosen drive pinion nut with Tool number KV38104700 (J34311).

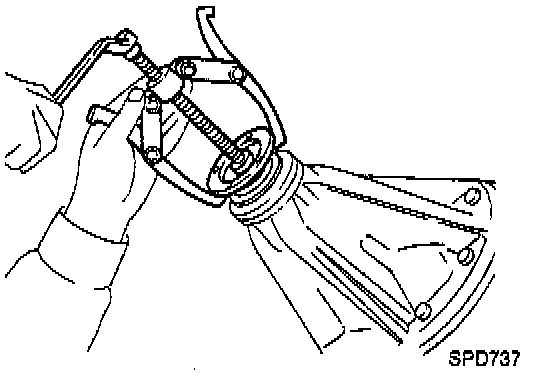

3. Remove companion flange.

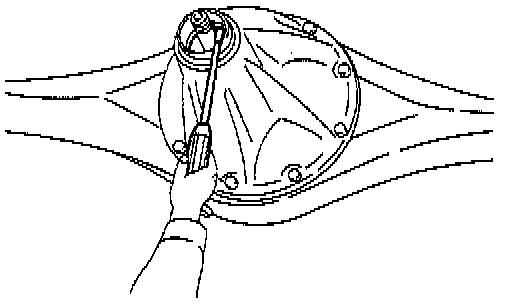

4. Remove front oil seal.

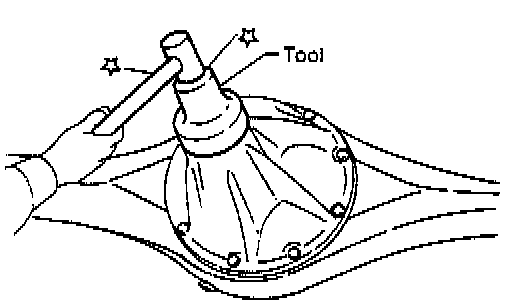

5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier. with Tool number KV38100500 (J25273).
6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
