Front Differential

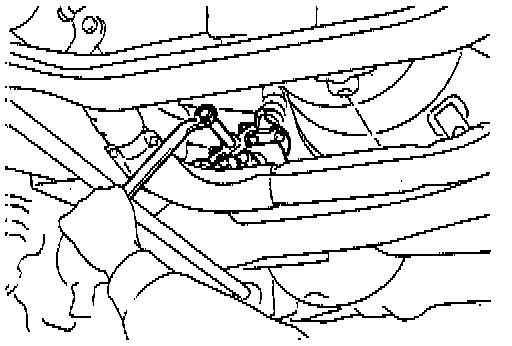

1. Remove front propeller shaft.

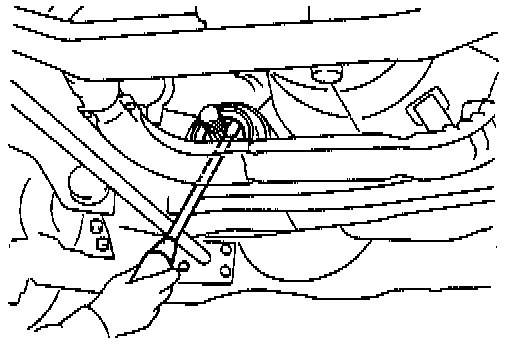

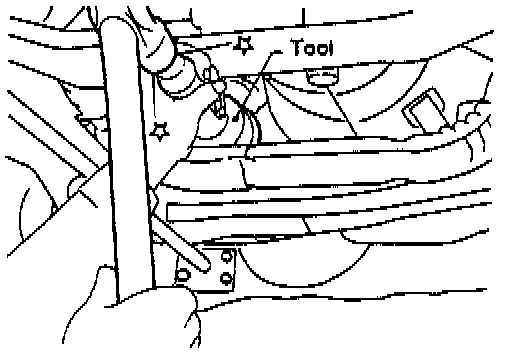

2. Loosen drive pinion nut with Tool number ST38060002 (J34311).





3. Remove companion flange using puller.





4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
6. Install companion flange and drive pinion nut.

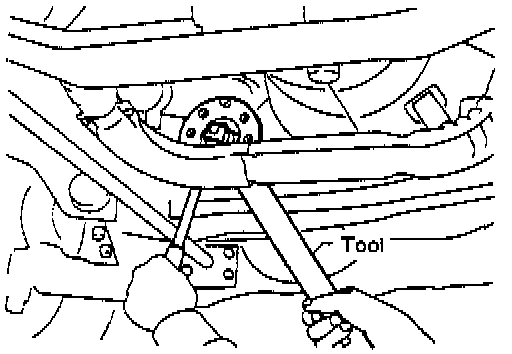

7. Install propeller shaft with Tool number KV38100500 (J25273).
