Clutch Damper: Service and Repair

OVERHAUL

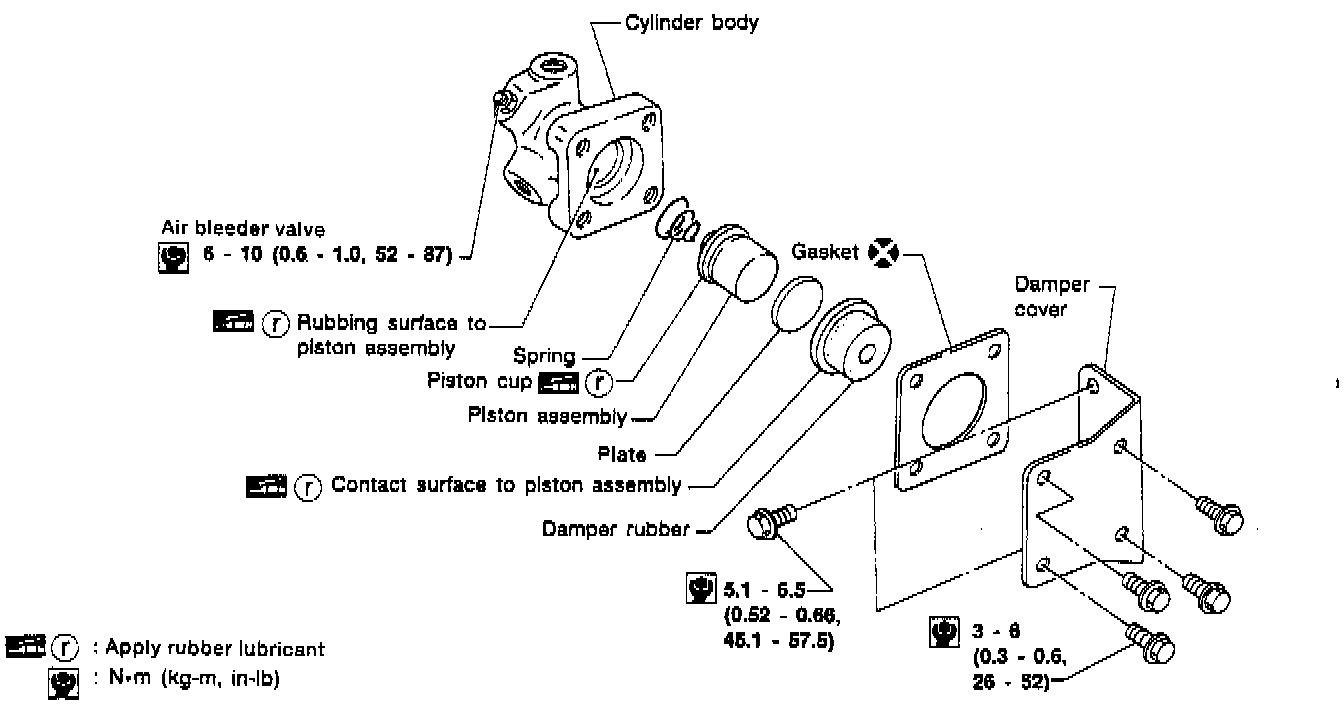

Refer to the illustration when servicing.

INSPECTION
Check the following items, and replace if necessary:
- Rubbing surface of cylinder and piston, for uneven wear, rust or damage.
- Piston with piston cup, for wear or damage.
- Piston spring, for wear or damage.
- Damper rubber and plate for cracks, deformation or damage.
