Parking Pawl: Service and Repair

DISASSEMBLY

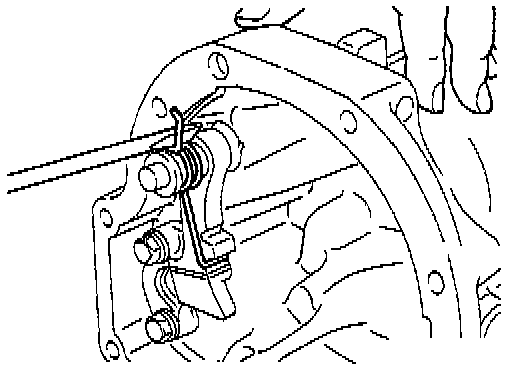

1. Slide return spring to the front of rear extension flange.

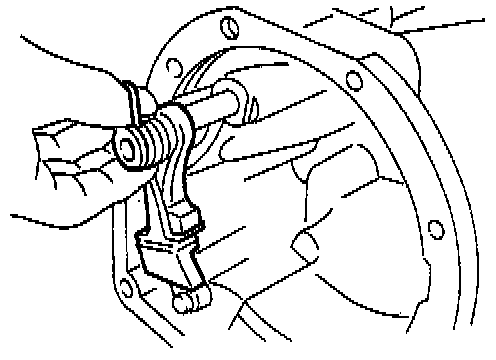

2. Remove return spring, pawl spacer and parking pawl from rear extension.
3. Remove parking pawl shaft from rear extension.

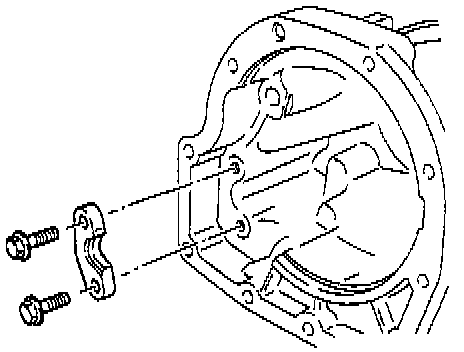

4. Remove parking actuator support from rear extension.

INSPECTION

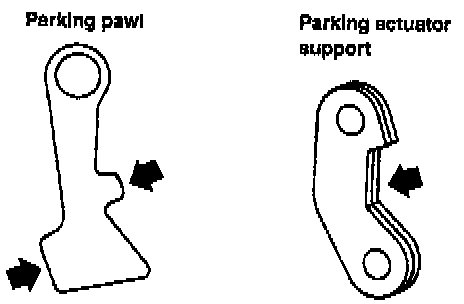

Parking Pawl And Parking Actuator Support
- Check contact surface of parking rod and parking gear for wear.





Parking Gear
- Check contacting surface of parking gear and ring groove areas for wear.
- Measure clearance between seal ring and ring groove.
Standard clearance: 0.15 - 0.40 mm (0.0059 - 0.0157 inch)
Wear limit: 0.40 mm (0.0157 inch)





ASSEMBLY

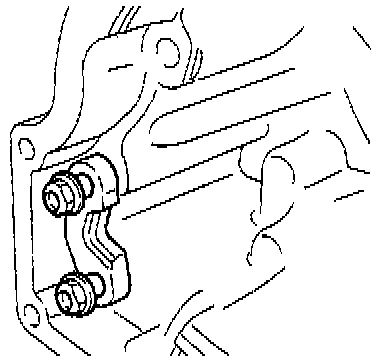

1. Install parking actuator support onto rear extension.
2. Insert parking pawl shaft into rear extension.

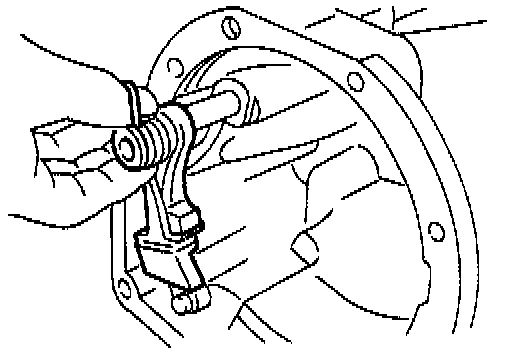

3. Install return spring, pawl spacer and parking pawl onto parking pawl shaft.

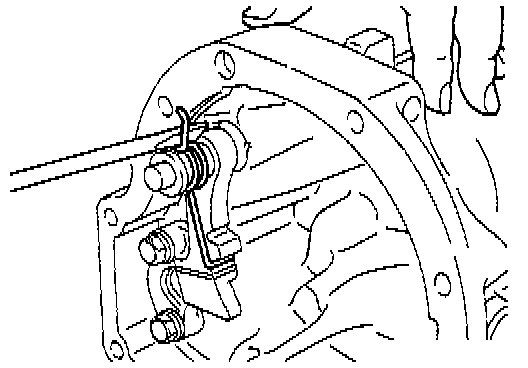

4. Bend return spring upward and install it onto rear extension.
