Rear

REPLACEMENT

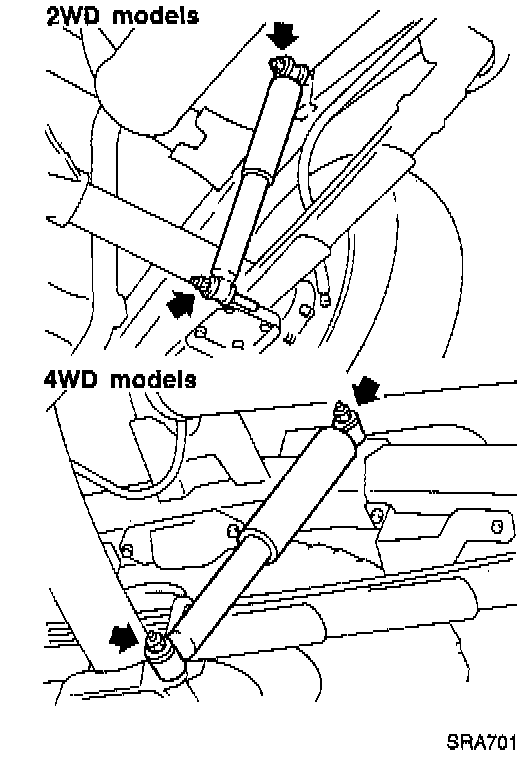

^ Remove shock absorber by disconnecting upper and lower end.

INSPECTION
^ If oil leakage, cracks or deformation occurs, replace shock absorber assembly.
^ If rubber bushings are cracked or deformed, replace rubber bushings.
