Lower, Front

REPLACEMENT

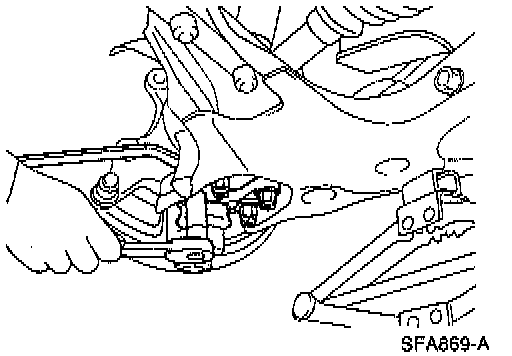

1. Remove torsion bar spring.

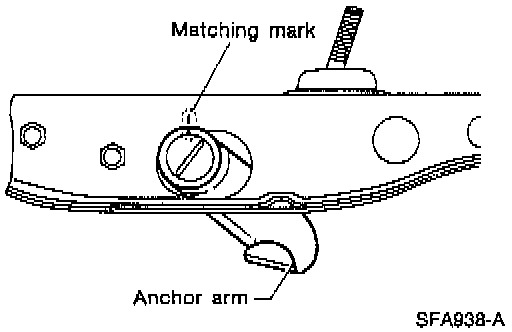

2. Make matching mark on anchor arm and crossmember when loosening adjusting nut until there is no tension on torsion bar spring.





3. Separate lower ball joint from lower link.





4. Remove front lower link fixing nut.





5. Remove bushing of lower link spindle from frame with suitable tool.
6. When installing, apply soapy water to bushing.
7. After installing lower link, adjust wheel alignment and vehicle height.

INSPECTION

Lower Link And Lower Link Spindle
^ Check for deformation and cracks. Replace if necessary.

Lower Link Bushing
^ Check for distortion and damage. Replace if necessary.
