Wheel Hub (Locking)

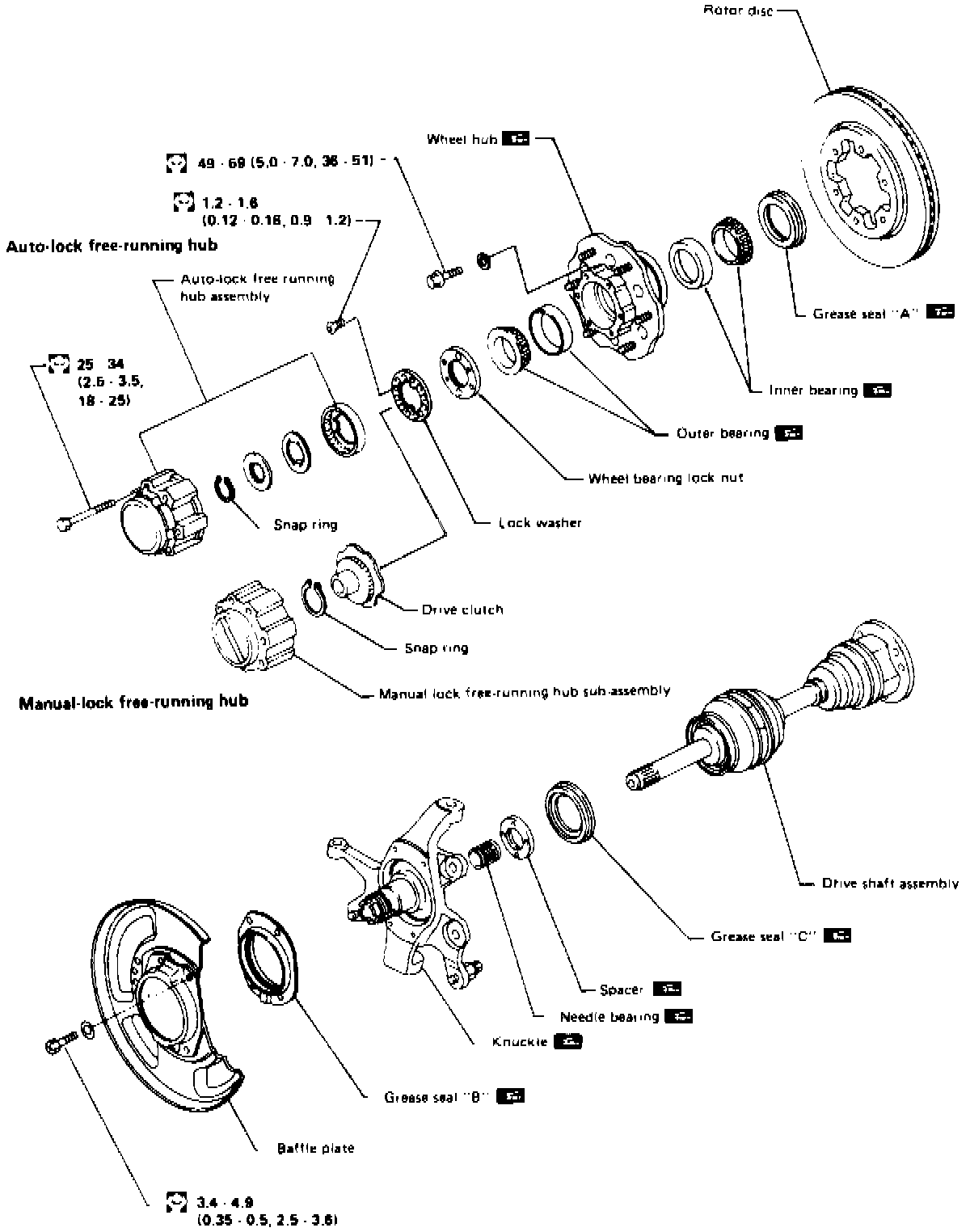

Fig. 1 Exploded View Of Front Axle:

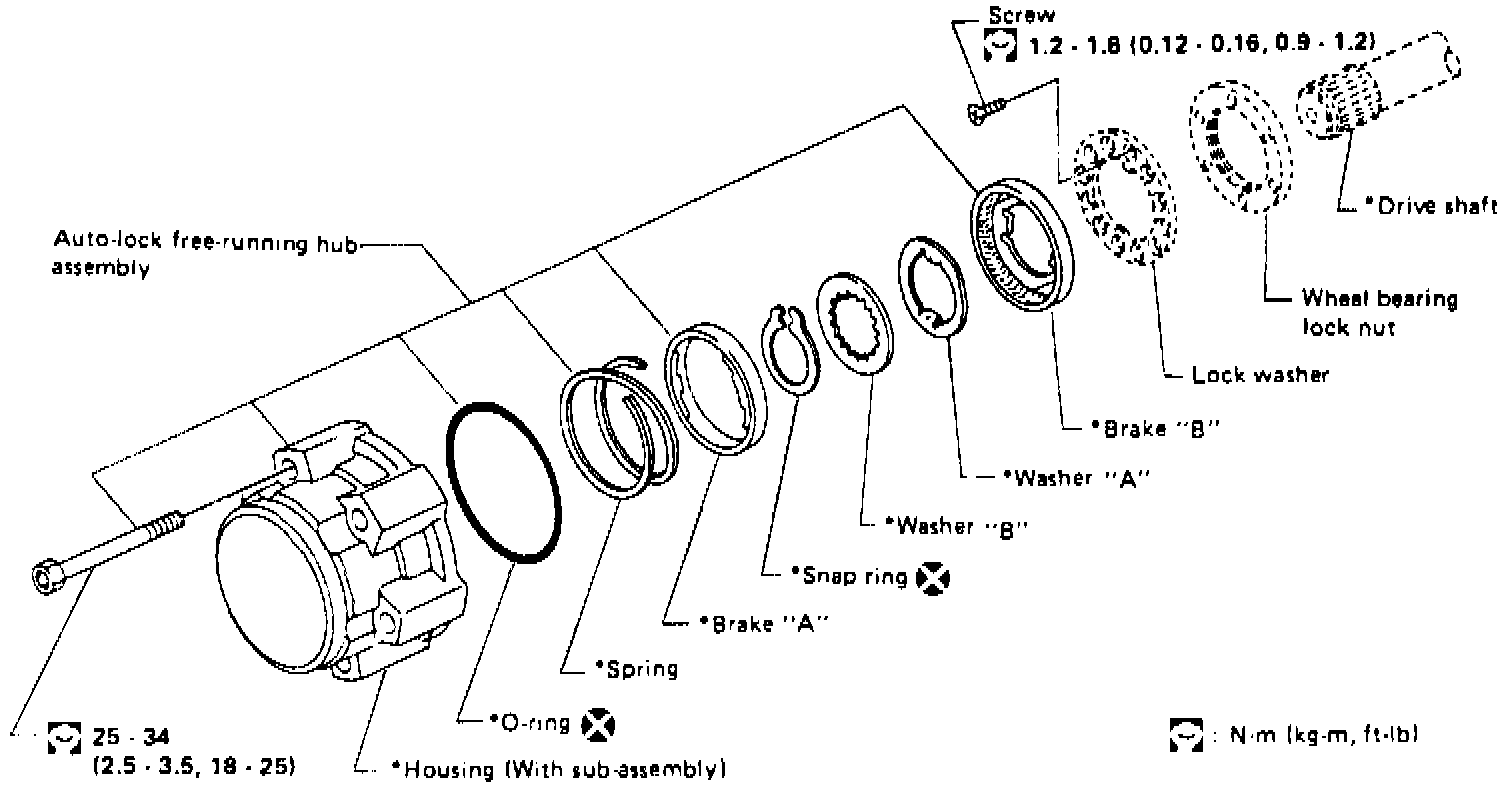

Fig. 3 Exploded View Of Automatic Locking Hub Assembly:
Exploded View Of Manual Locking Hubs:
