System Specifications

DIMENSIONS

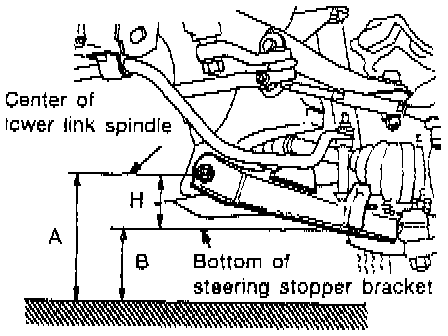

Lower Arm Pivot Height "H" [1]:
Allowable Limit: 41 - 51 mm (1.61 - 2.01 inch)
Adjusting Range: 44 - 48 mm (1.73 - 1.89 inch)

[1]: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
