Fuel Gauge Sender: Testing and Inspection

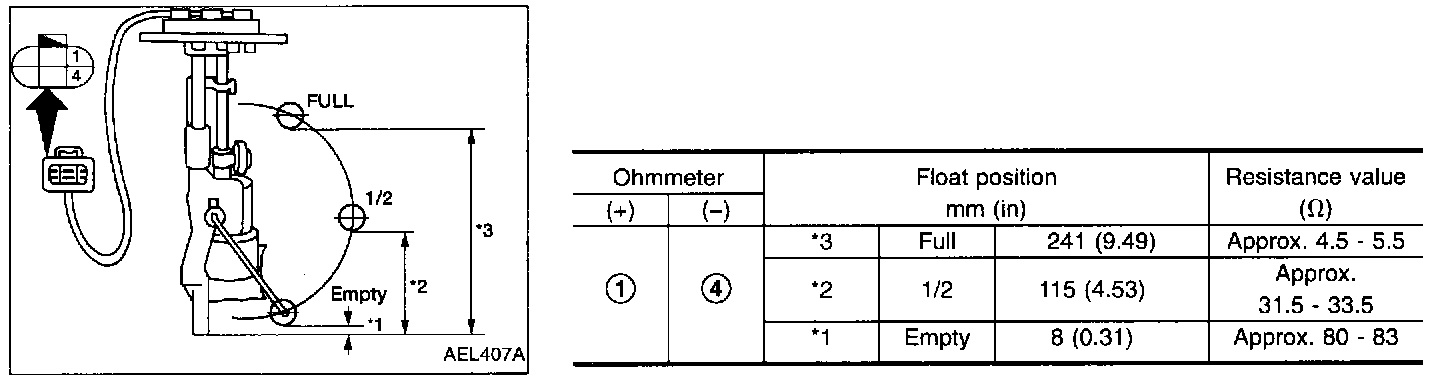

Fuel Tank Gauge Unit Check:




Check the resistance between terminals (1) and (4).
