Oil Pump: Service and Repair

Refer to the illustrations when servicing. Note the following:
- Always replace with new oil seal and gasket.
- When removing oil pump, turn crankshaft so that No. 1 piston is at TDC on its compression stroke.

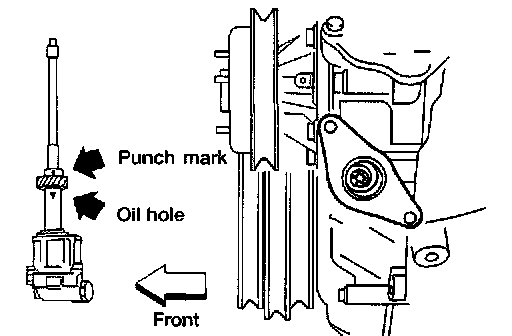

- When installing oil pump, apply engine oil to gears, then align punchmark on drive spindle and oil hole on oil pump.
