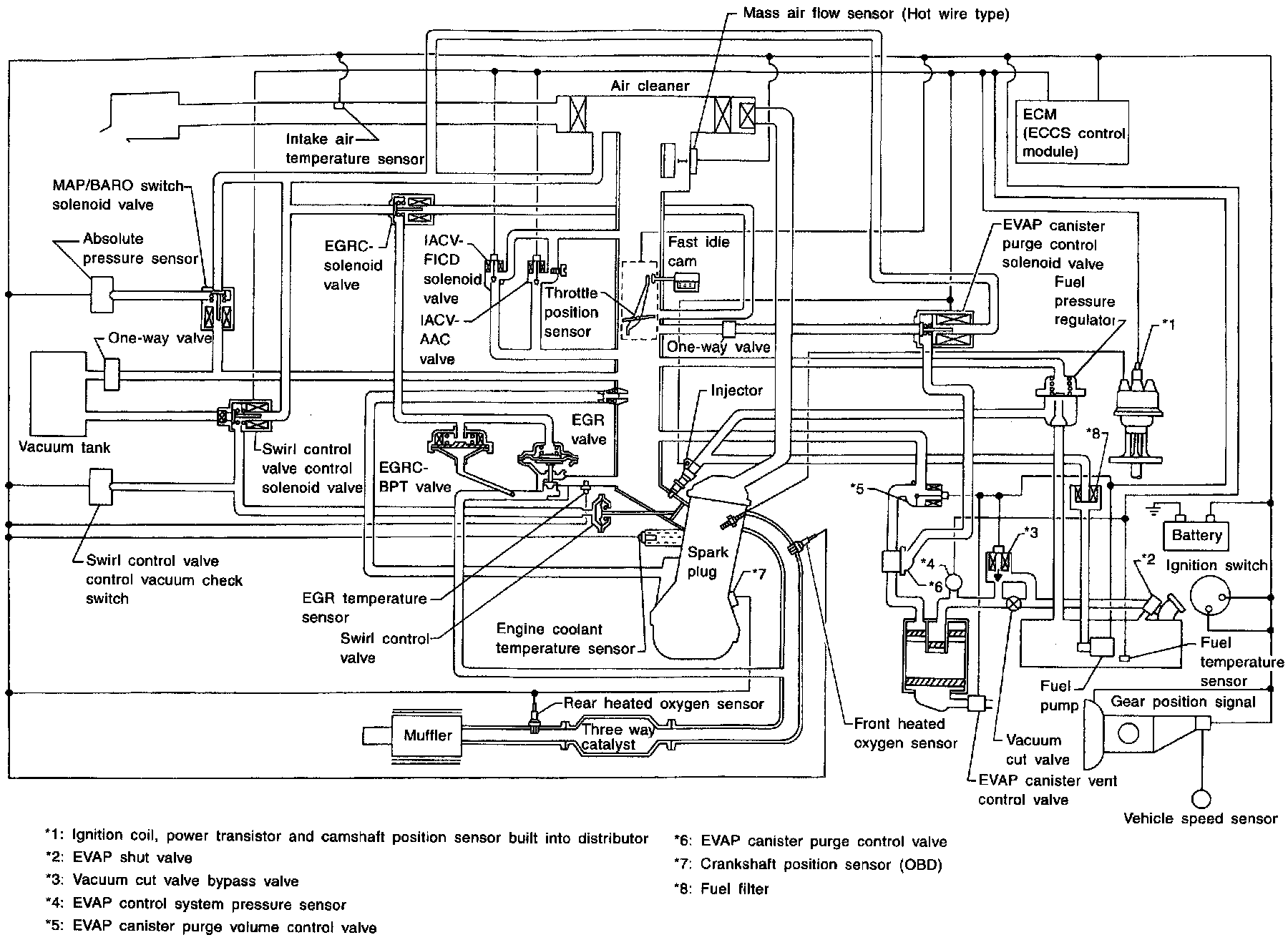

Home >> Nissan-Datsun >> 1997 >> D21 Hardbody XE 4WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> System Diagram >> Engine Control System Schematic
