Nissan-Datsun
>>
1997
>>
D21 Hardbody XE 4WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Electrical Diagrams
>>
Base Audio System
Base Audio System

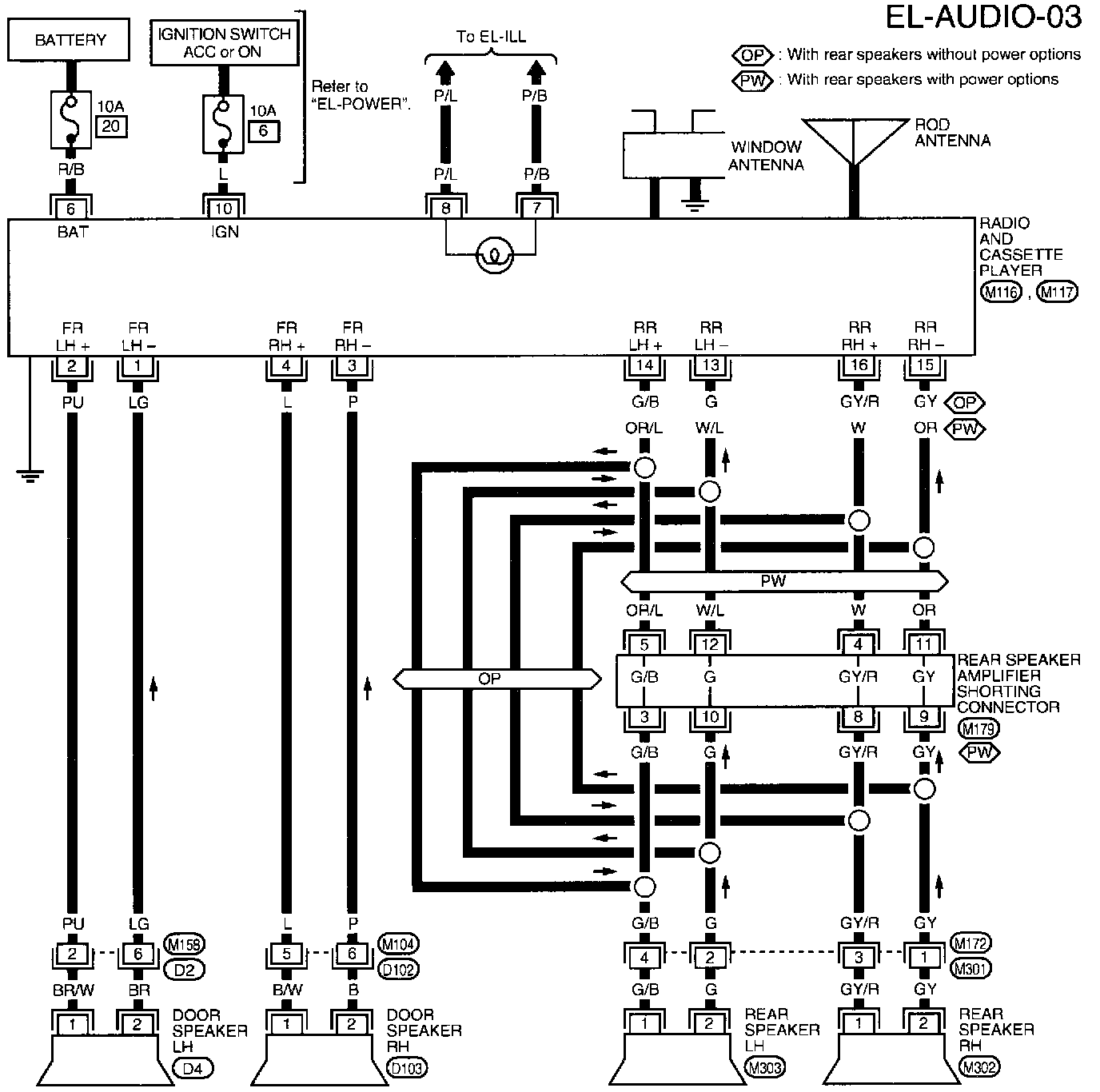

EL-AUDIO-03 Base Audio System:
