Home
>>
Nissan-Datsun
>>
1997
>>
D21 Hardbody XE 4WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Leak Detection Valve, Evaporative System
Leak Detection Valve, Evaporative System

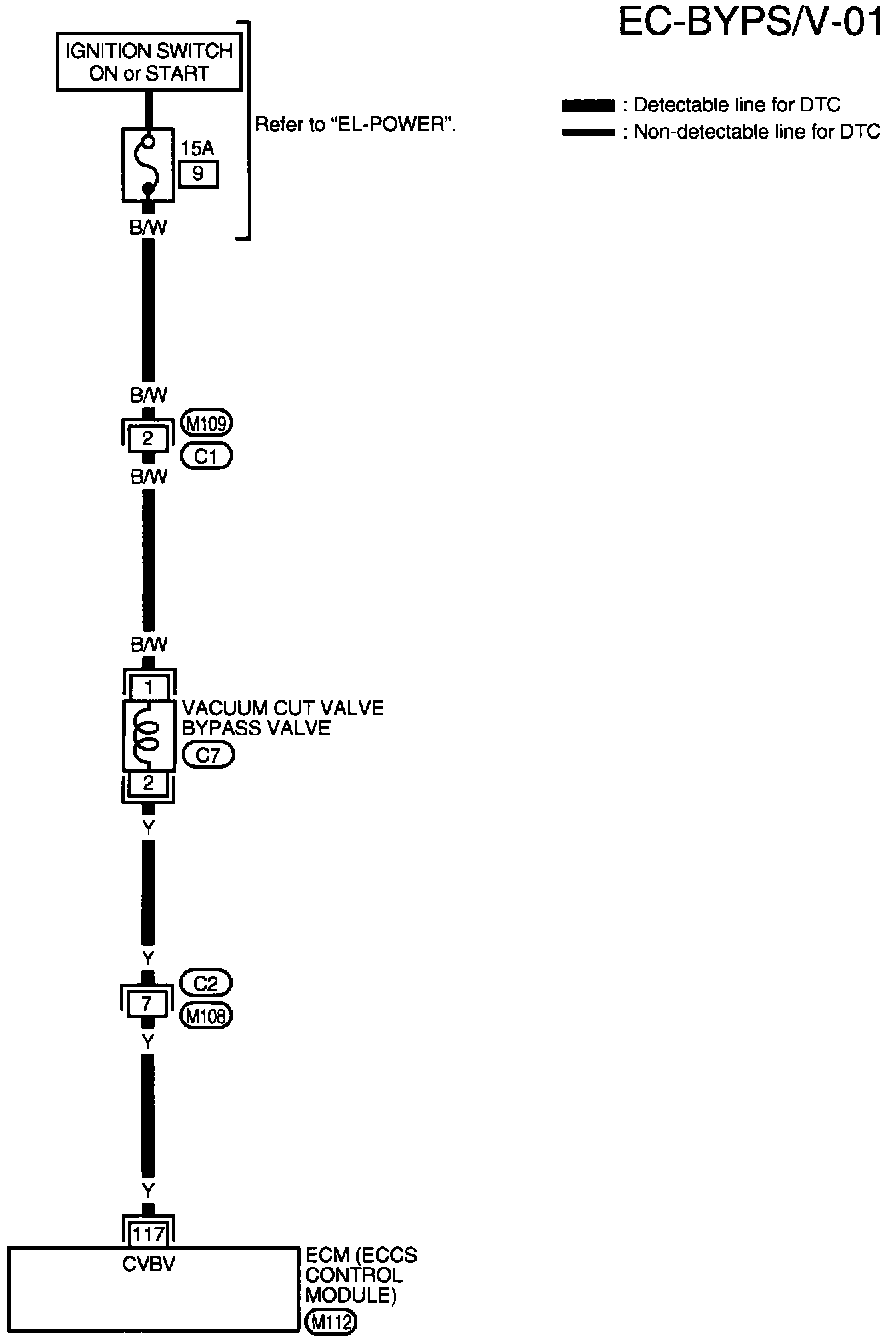

EC-BYPS/V-01 Vacuum Cut Valve Bypass Valve (DTC P1441):
