Power Door Lock Control Module
>>
Electrical Diagrams
Electrical Diagrams

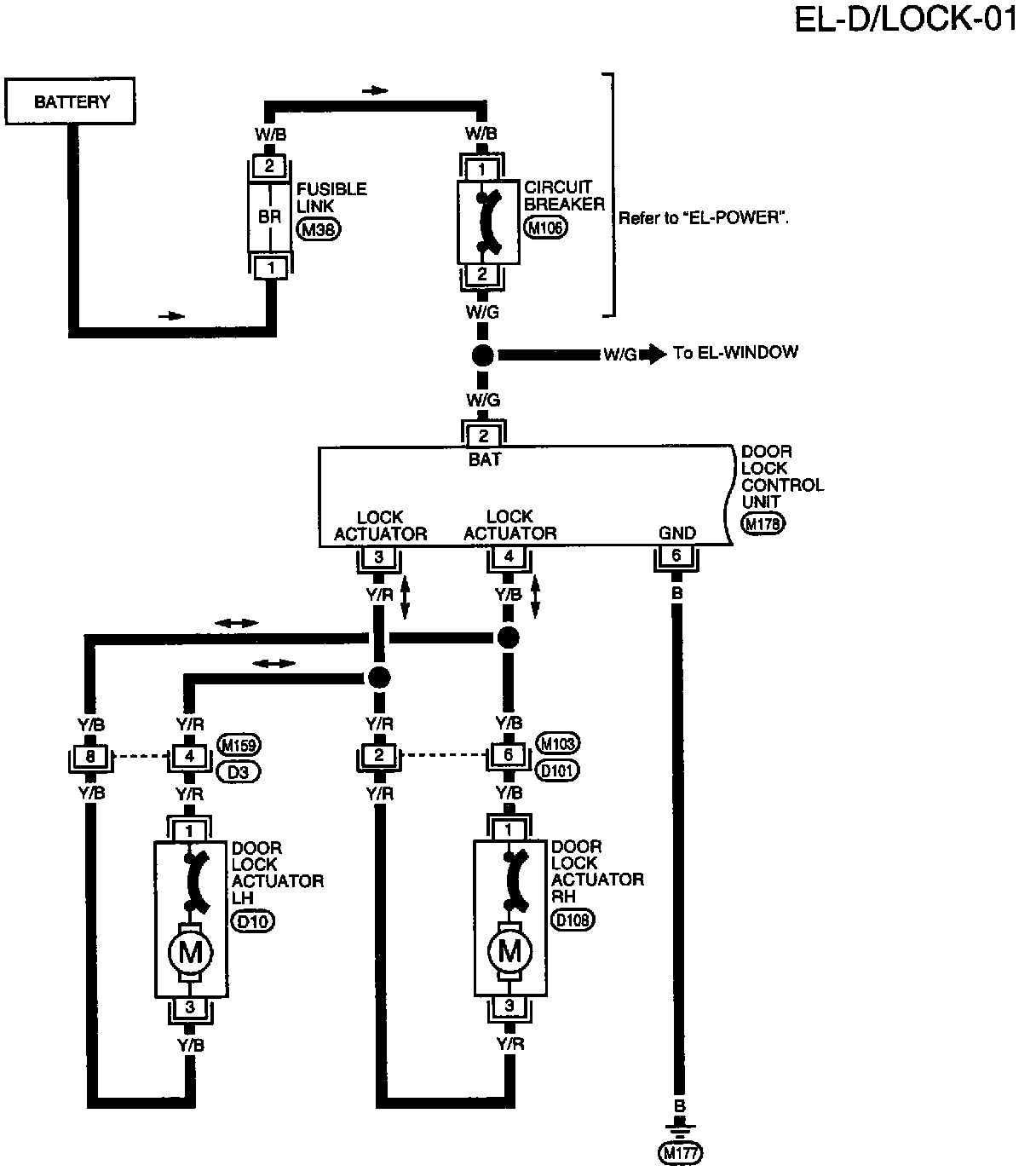

EL-D/LOCK-01 Power Door Lock (Part 1 Of 2):

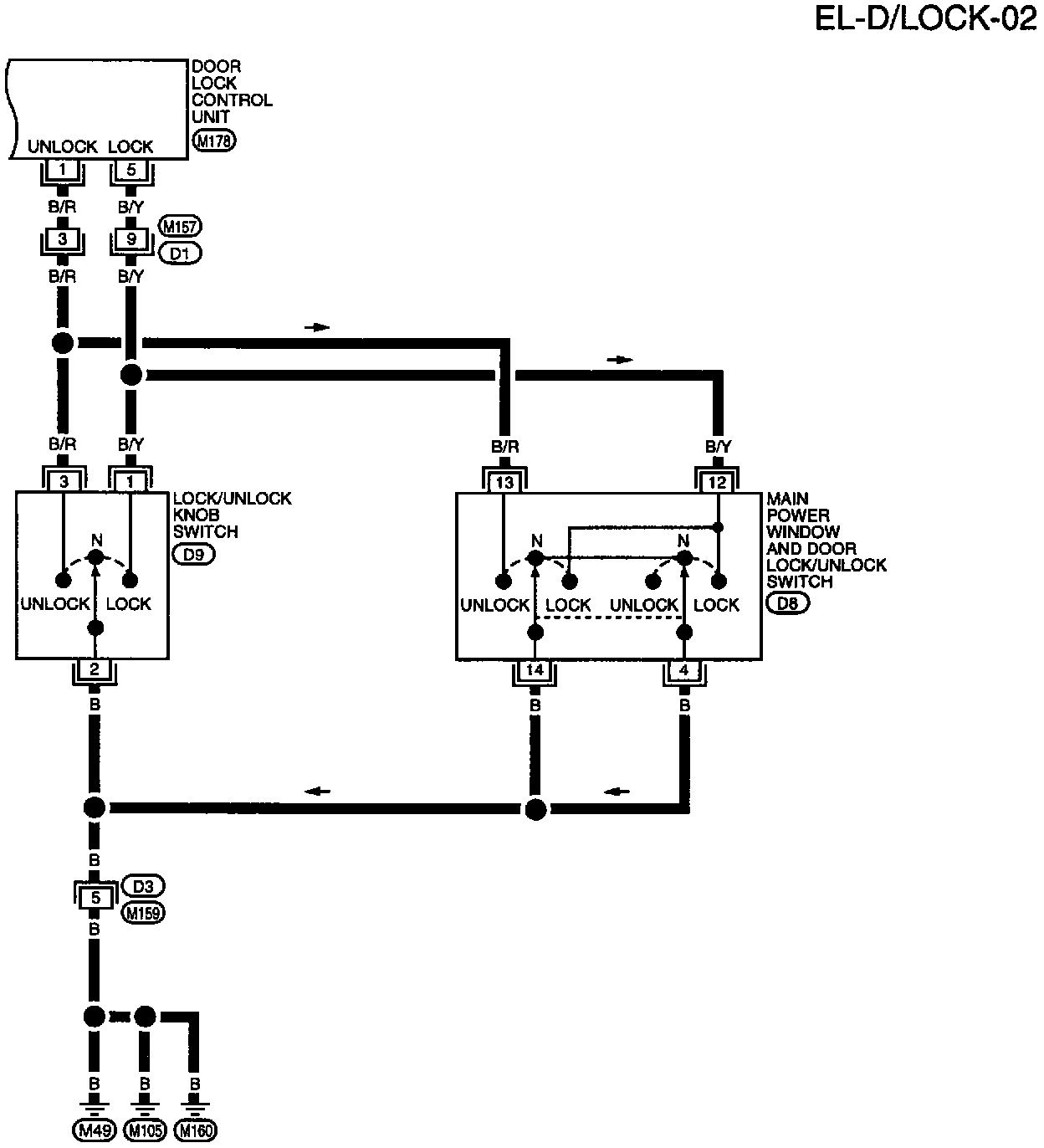

EL-D/LOCK-02 Power Door Lock (Part 2 Of 2):
